Dynaudio Professional AIR reference manual – 2014-09-28 32
Stereo setup with mono subwoofer – digital or analog
Stereo Setup with 1 subwoofer – digital or analog
Master
Left
System Ctrl.
L + R Digital (AES) or analog audio signals
Slave
Right
Sub
Subwoofer

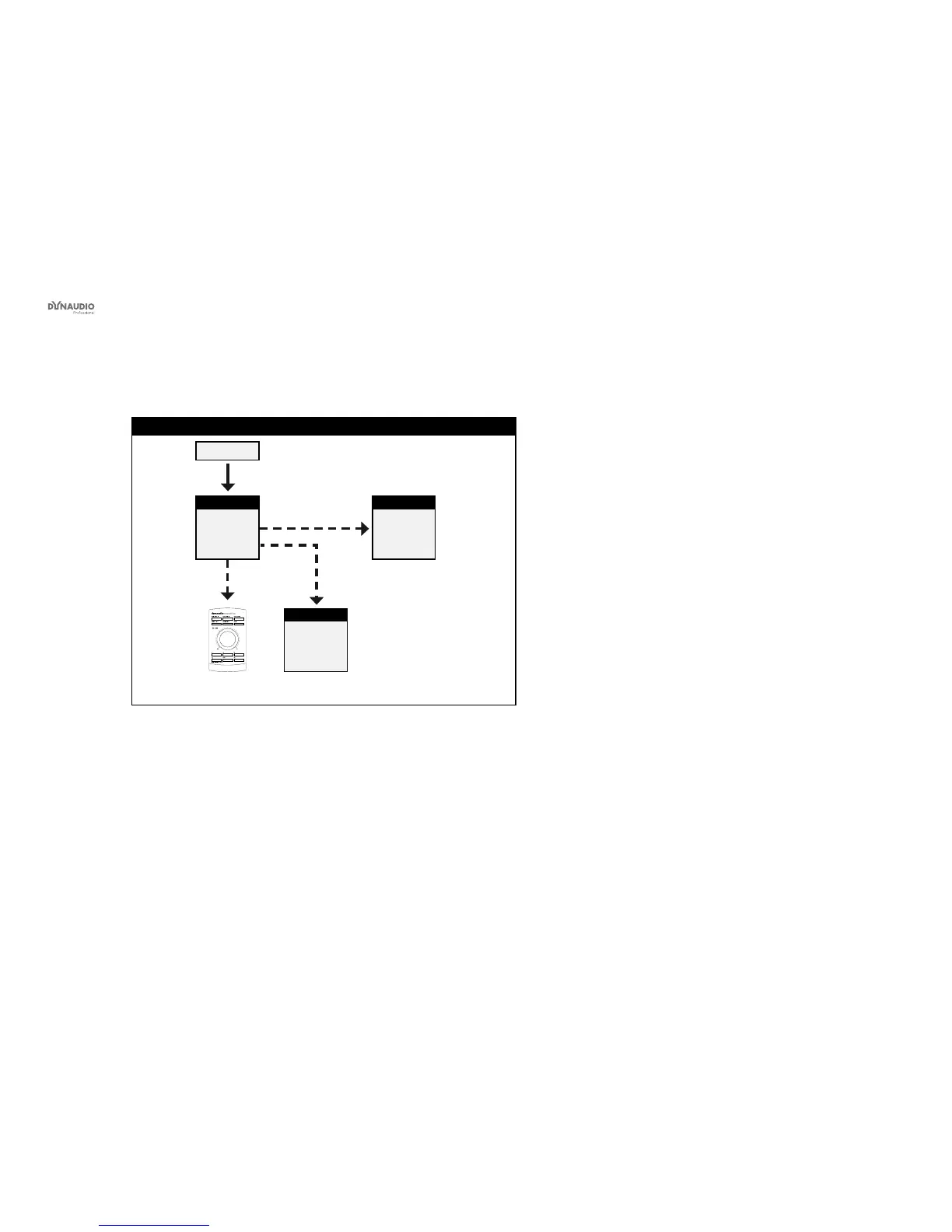

Fig. 14: This illustration shows how to connect a stereo setup with one subwoofer.
Understanding and using this setup
►
Audio signals are represented by solid lines.
►
TC link signals are represented by dashed lines.
►
The left monitor is set as the System Controller by
setting the TC Link button on the rear panel to the
“out” position.
►
The left monitor receives both the left and right
input signals.
►
The right monitor and the subwoofer receive audio
via the TC-LINK RJ-45 connection from the left
monitor.
►
With no bass management, no signal is sent to the
subwoofer.
►
With bass management activated, low-frequency
information is extracted from the left and right
channels below the set crossover frequency and
fed to the subwoofer.
►
The AIR Remote or a computer running the AIR
Control software (both optional) can be connected
to any available TC LINK Out connection.
