Dynaudio AIR 6 - TC LINK Via Standard Cat 5 Cables; AES;EBU Cables

Cables
Dynaudio Professional AIR reference manual – 2014-09-28 83
Several types of cables are used for connecting the
components of your AIR system. TC LINK via standard
Cat 5 cables
TC LINK connections carry digital audio (24 bit) and
network control information between the monitors in
your AIR system.

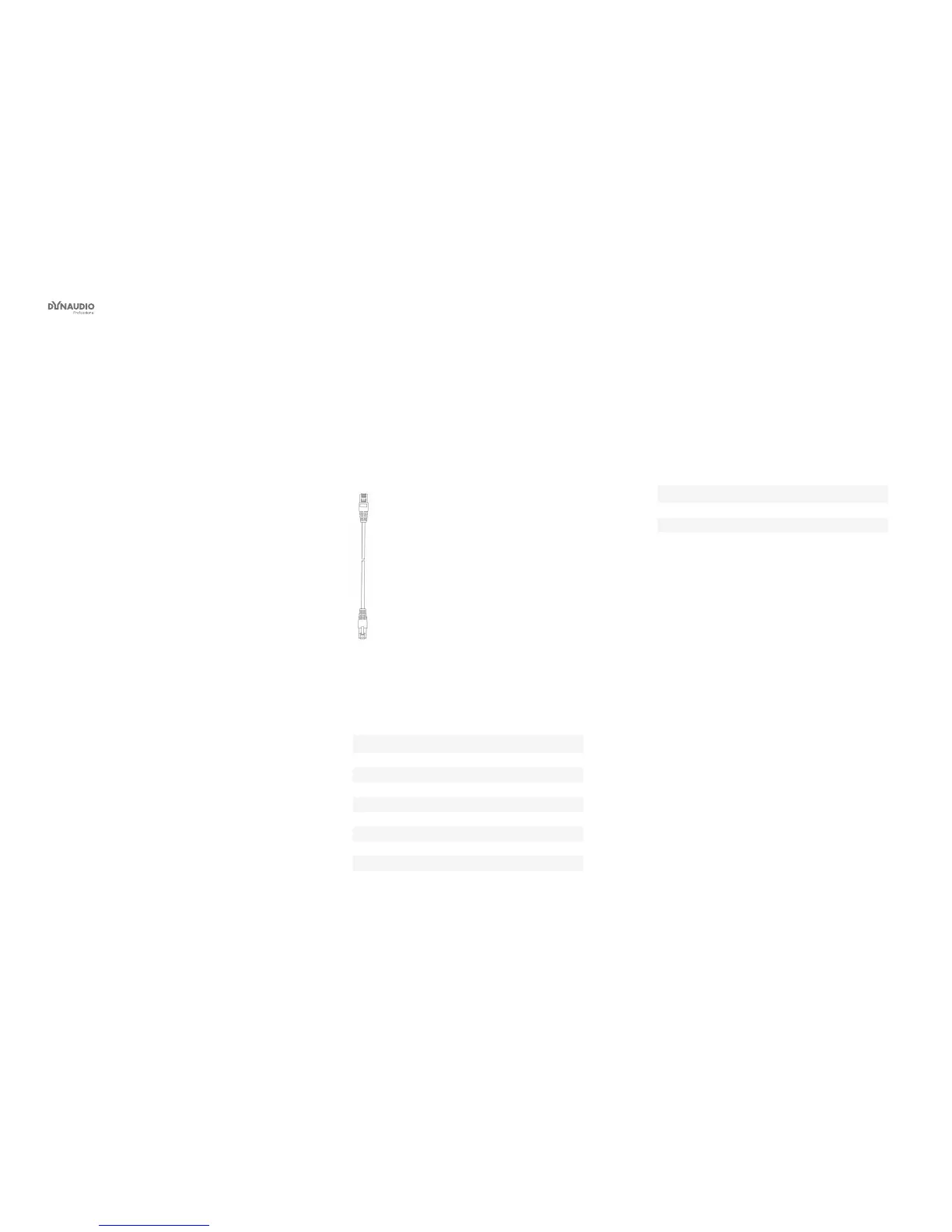

Fig. 54: TC LINK (standard Cat 5) cable
►
Cable type: Shielded Ethernet cable – Category 5
►
Connector type: RJ45
►
Maximum cable length: 15 meters
Connector 1 Connector 2 Color
1 1 Brown
2 2 White/Brown
3 3 Green
4 4 White/Blue
5 5 Blue
6 6 White/Green
7 7 Orange
8 8 White/Orange
AES/EBU cables
Standard AES/EBU cables are used to connect audio
sources to the inputs of the System controller monitor.
►
Cable type: 110 Ohm
►
Connector type: XLR
►
Maximum cable length: 100 meters
Connector 1 Connector 2
Pin 1 Pin 1 Ground
Pin 2 Pin 2 Hot
Pin 3 Pin 3 Cold
