Connecting the subwoofer
Subwoofer inputs
The BM14S provides two different signal inputs:
LFE/Slave
This input allows the LFE (Low Frequency Effect) channel to be connected.
The signal is:
• processed and reproduced by the subwoofer
• routed to the Slave output for a second subwoofer to be connected.
The Lowpass control has no impact on this input.
SAT/SUB
This input allows the connection of a full bandwidth signal.
The signal is:
• reproduced by the subwoofer,
• routed to the SAT/SUB output terminals. Low frequencies are cut-off according to
the Highpass setting,
• routed to the Slave output for a second subwoofer to be connected. High
frequencies are cut-off according to the Lowpass setting.
CAUTION
Damage due to improper connections!
Improper connections may damage the device.
X Set the mains power switch to OFF before connecting the BM14S.
X Only switch the subwoofer on (mains power switch to ON) after all connections
and set up steps have been properly completed.

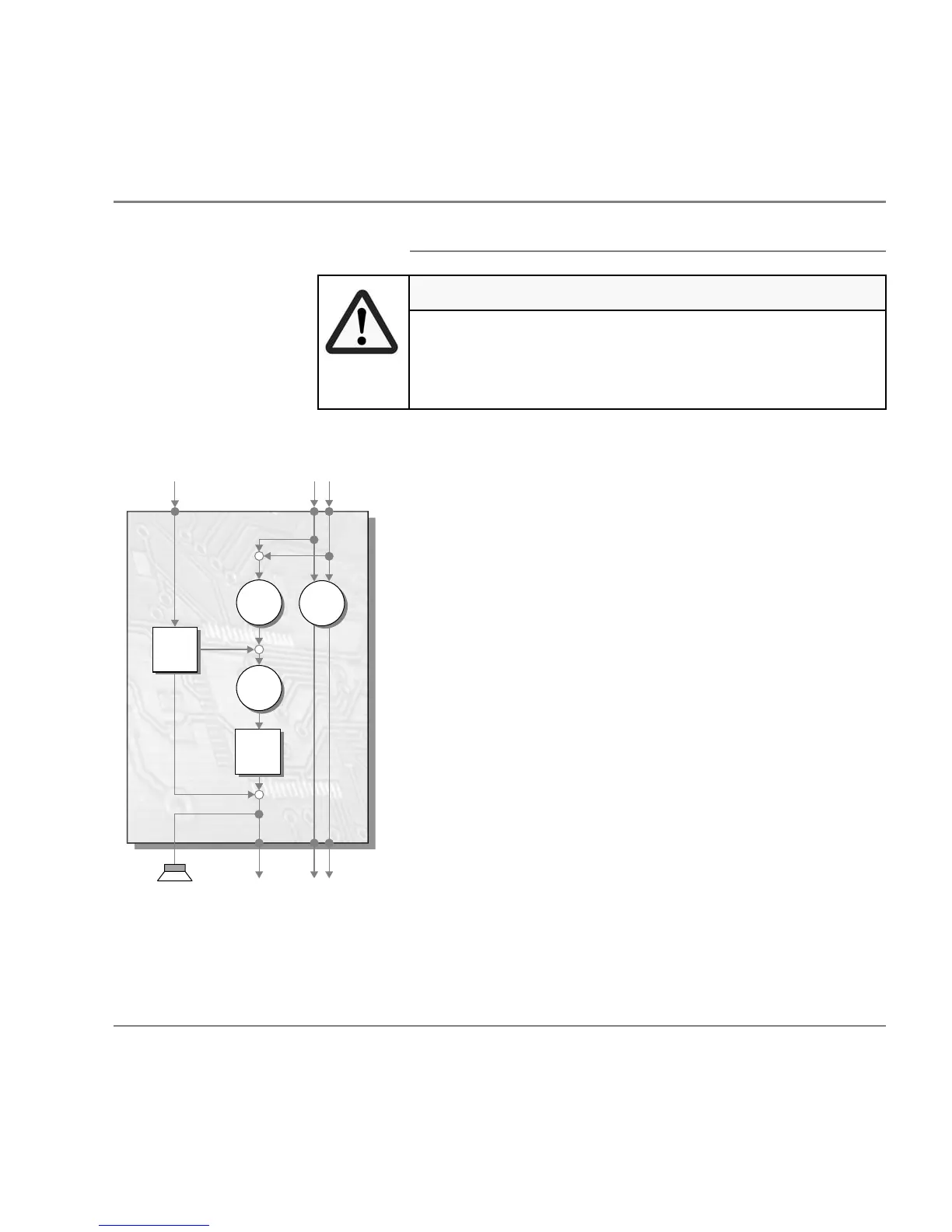

Highpass
Lowpass
+
Gain
+
LFE/Slave
Mode
Phase
+
SAT/SUB
SAT/SUBSlave
