Dynaudio Sub 6 Owner's Manual

2524
Installation
Sub6 Connections Schemes
The four connection schemes illustrated
here cover most common installations.
Right
out
Right
in
Right
in
Left
in
Right
out
Left
out
Left
out
Left
in
Trigger
in
Service
Auto
ON/OFF
Max. 12 V DC
Right
out
Right
in
Right
in
Left
in
Right
out
Left
out
Left
out
Left
in
Trigger
in
Service
Auto
ON/OFF
Max. 12 V DC
Right
out
Right
in
Right
in
Left
in
Right
out
Left
out
Left
out
Left
in
Trigger
in
Service
Auto
ON/OFF
Max. 12 V DC
Right
out
Right
in
Right
in
Left
in
Right
out
Left
out
Left
out
Left
in
Trigger
in
Service
Auto
ON/OFF
Max. 12 V DC
Right
out
Right
in
Right
in
Left
in
Right
out
Left
out
Left
out
Left
in
Trigger
in
Service
Auto
ON/OFF
Max. 12 V DC
100-120V/220-240V
~50/60Hz
L
R
100-120V/220-240V
~50/60Hz
100-120V/220-240V
~50/60Hz
100-120V/220-240V
~50/60Hz
100-120V/220-240V
~50/60Hz
R
L
Right
out
Right
in
Right
in
Left
in
Right
out
Left
out
Left
out
Left
in
Trigger
in
Service
Auto
ON/OFF
Max. 12 V DC
100-120V/220-240V
~50/60Hz
L
R
R
L
R
L
R
L
L
R
L
R

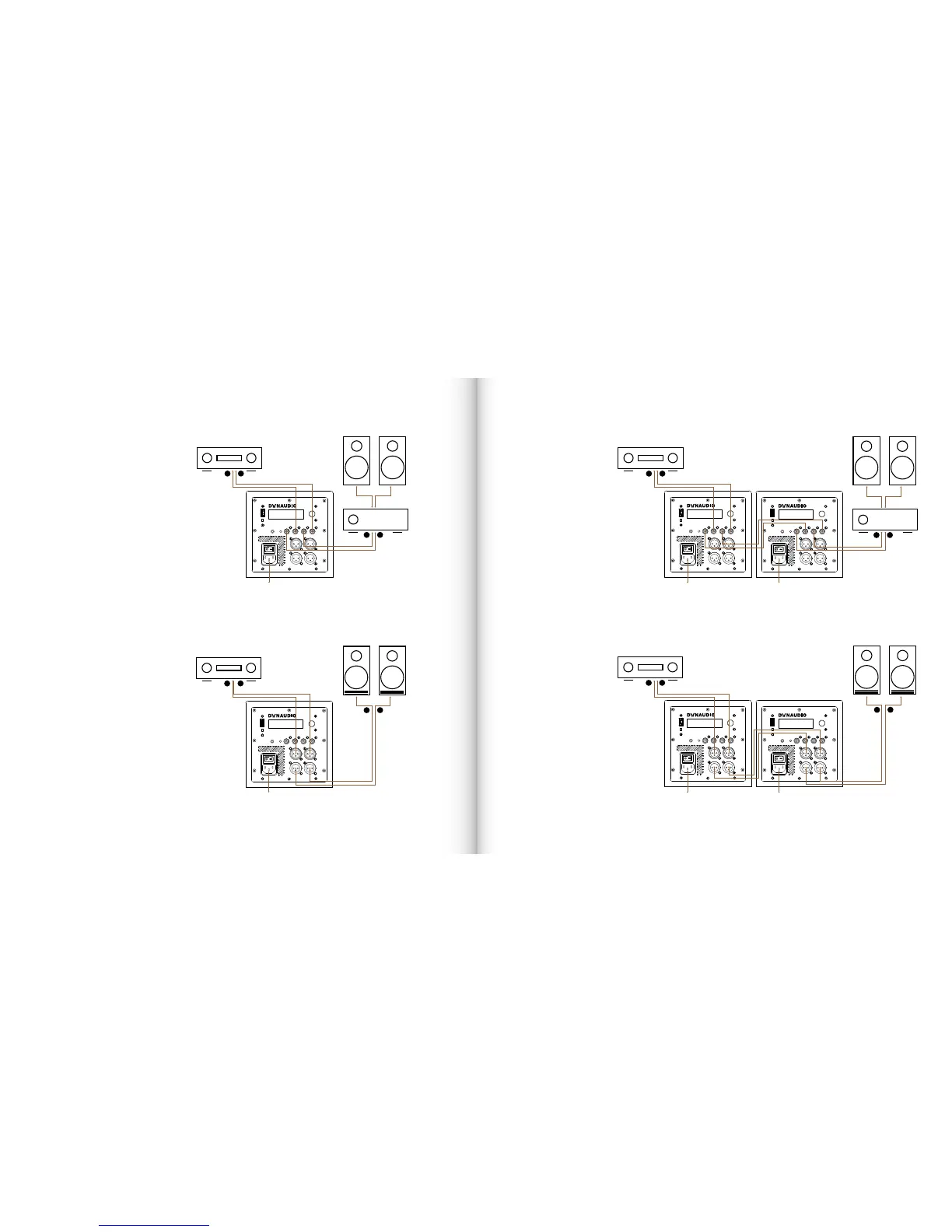

Connection Scheme 1
• Unbalanced (phono) connection
from preamplier/processor to
subwoofer inputs.
• Unbalanced connection from
subwoofer outputs to power
amplier and passive main
speakers.
Connection Scheme 2
• Balanced (XLR) connection
from preamplier/processor to
subwoofer inputs.
• Balanced connection from
subwoofer outputs to active main
speakers.
Connection Scheme 3
• Unbalanced (phono) connection
from preamplier/processor to rst
subwoofer inputs.
• Unbalanced connection from rst
subwoofer outputs to second
subwoofer inputs.
• Unbalanced connection from
second subwoofer outputs to
power amplier and passive main
speakers.
Connection Scheme 4
• Balanced (XLR) connection from
preamplier/processor to rst
subwoofer inputs.
• Balanced connection from rst
subwoofer outputs to second
subwoofer inputs.
• Balanced connection from second
subwoofer outputs to active main
speakers.
Right
out
Right
in
Right
in
Left
in
Right
out
Left
out
Left
out
Left
in
Trigger
in
Service
Auto
ON/OFF
Max. 12 V DC
Right
out
Right
in
Right
in
Left
in
Right
out
Left
out
Left
out
Left
in
Trigger
in
Service
Auto
ON/OFF
Max. 12 V DC
Right
out
Right
in
Right
in
Left
in
Right
out
Left
out
Left
out
Left
in
Trigger
in
Service
Auto
ON/OFF
Max. 12 V DC
Right
out
Right
in
Right
in
Left
in
Right
out
Left
out
Left
out
Left
in
Trigger
in
Service
Auto
ON/OFF
Max. 12 V DC
Right
out
Right
in
Right
in
Left
in
Right
out
Left
out
Left
out
Left
in
Trigger
in
Service
Auto
ON/OFF
Max. 12 V DC
100-120V/220-240V
~50/60Hz
L
R
100-120V/220-240V
~50/60Hz
100-120V/220-240V
~50/60Hz
100-120V/220-240V
~50/60Hz
100-120V/220-240V
~50/60Hz
R
L
Right
out
Right
in
Right
in
Left
in
Right
out
Left
out
Left
out
Left
in
Trigger
in
Service
Auto
ON/OFF
Max. 12 V DC
100-120V/220-240V
~50/60Hz
L
R
R
L
R
L
R
L
L
R
L
R

Dynaudio Sub 6 Specifications

General

Subwoofer type	Active subwoofer
Number of subwoofers	2
Subwoofer peak power	500 W
Subwoofer driver diameter	240 mm
Subwoofer frequency range	16 - 230 Hz
On/off switch	Yes
Product color	Black
Speaker enclosure	Closed
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W

Weight and Dimensions

Subwoofer depth	268 mm
Subwoofer width	447 mm
Subwoofer height	300 mm
Subwoofer weight	21500 g
