14 Route the PCIII harness along the right
hand side frame down tube. Use the
existing wraps to hold the PCIII harness in
place (Fig. J).
15 Locate the Throttle
Position Sensor
on the right hand
side of the throttle
bodies.
17 Connect the GREY
wire from the PCIII
to the Posi-Tap.

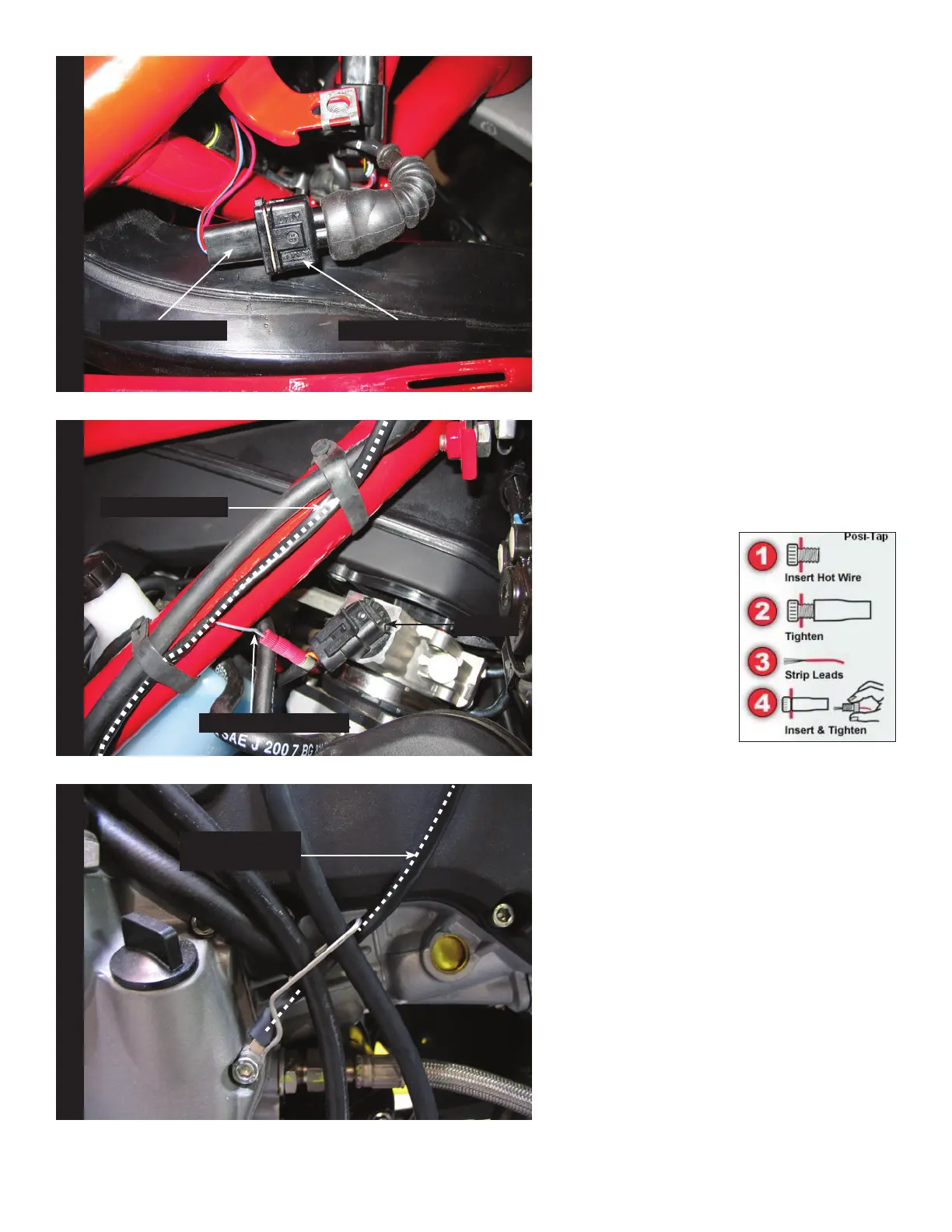

12 Plug the ORANGE colored wires from the
PCIII in-line of the front injector and stock
wiring harness (Fig. H).
13 Remove the right hand fairing.
Fig. H
2007 Ducati 1098 - PCIII USB - 4
PCIII connector Stock connector
Fig. J
18 Attach the ground wire from the PCIII to
the right hand engine cover bolt shown in
Figure K
19 Reinstall the right hand fairing
Ground wire
from PCIII
Fig. K
TPS
PCIII harness
Grey wire/Posi-Tap
To Next Page
