Room Sealed Fan Assisted Operation

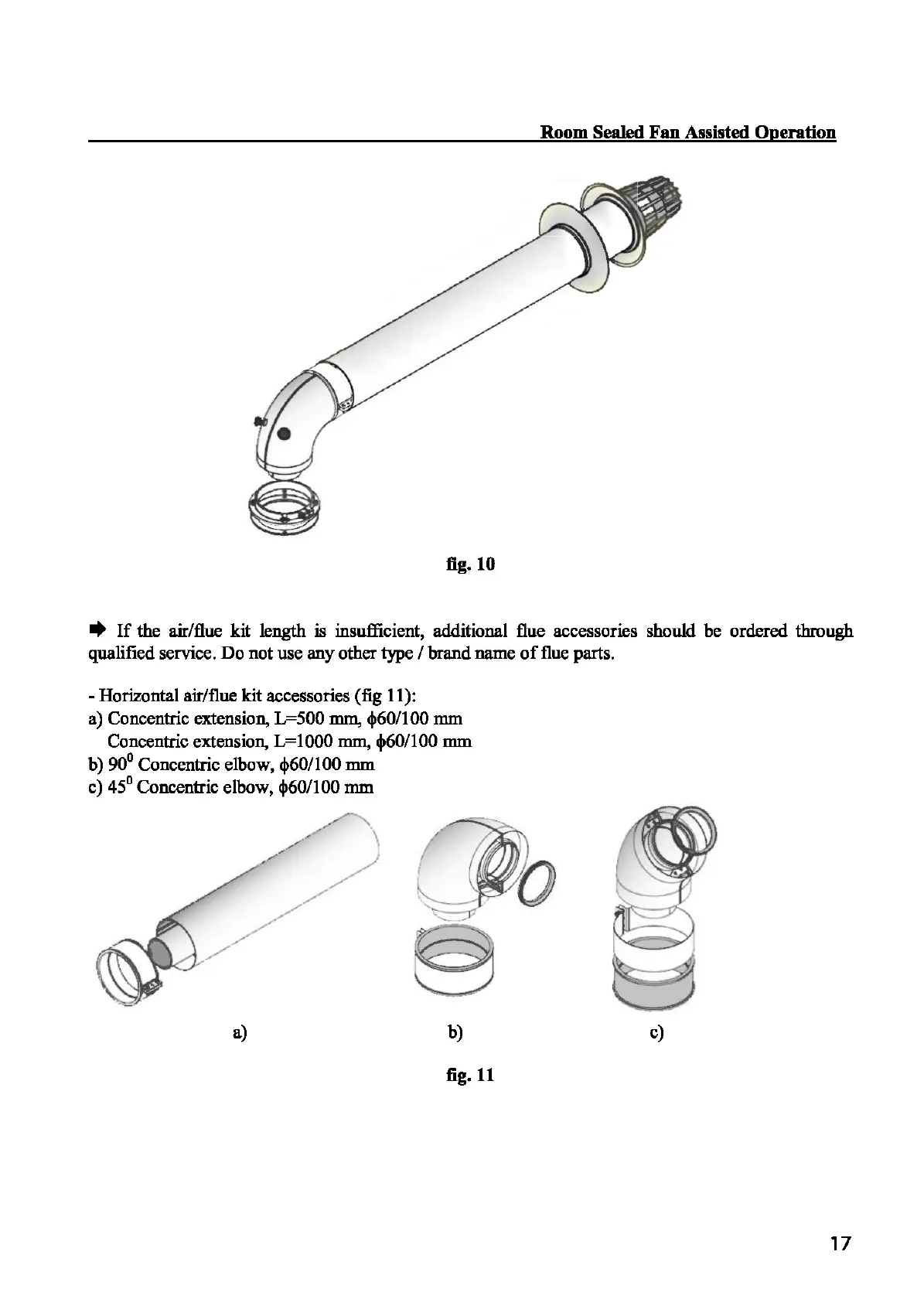

fig. tO
+ If the air/flue kit length is insufficient, additional flue accessories should be ordered through
qualified service.
Do not use any other type I brand name of flue parts.
-Horizontal air/flue kit accessories (fig 11):
a) Concentric extension, L=500 mm,
4>60/1 00 mm
Concentric extension,
L=lOOO mm, lj)60/100 mm
b) 90° Concentric elbow, 4>60/100 mm
c) 45° Concentric elbow, lj)60/100 mm
----
@
a) b)
fig. 11
c)
