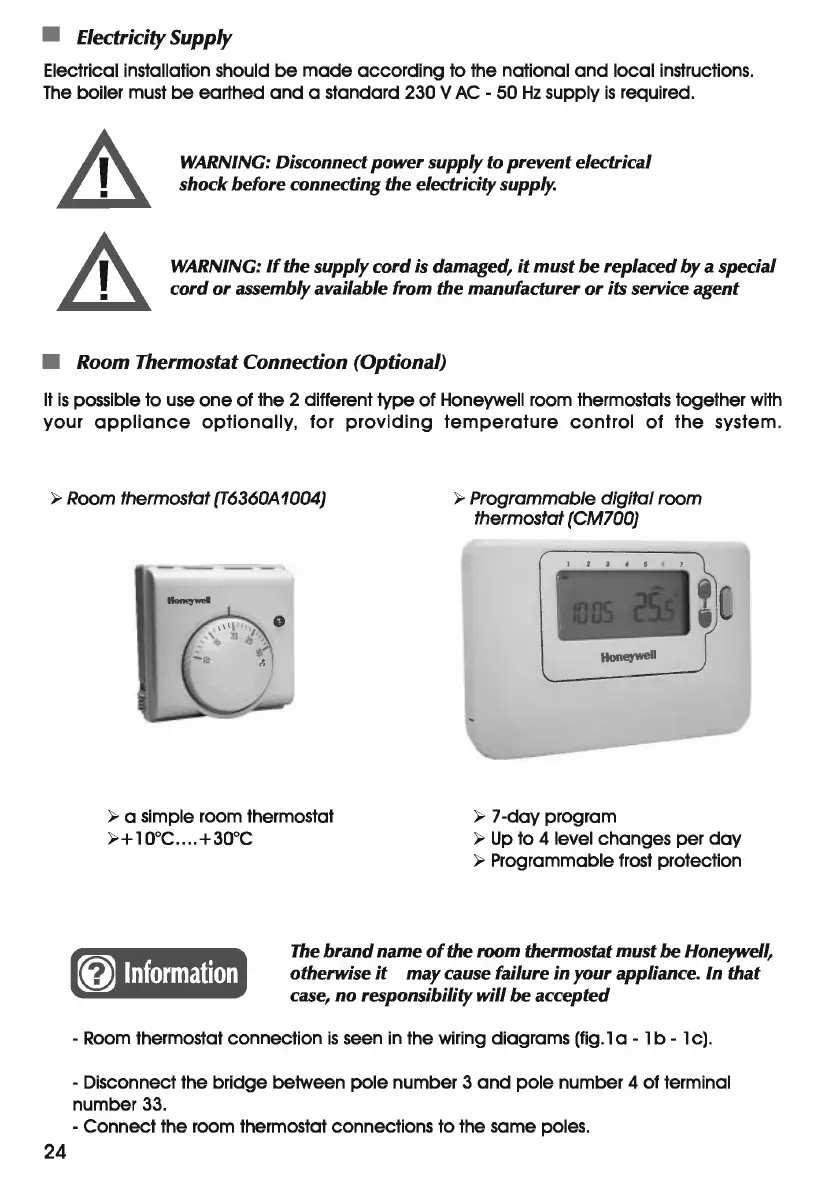

E.C.A. CA 24 BB - Electricity Supply

• Electricity Supply
Electrical installation should be made according to the national and local instructions.
The boiler must be earthed and a standard 230 V AC - 50 Hz supply is required.
WARNING: Disconnect power supply to prevent electrical
shock before connecting the electricity supply.
A WARNING: If the supply cord is damaged, it must be replaced by a special
~ cord or assembly available from the manufacturer or its service agent
• Room Thermostat Connection (Optional)
It is possible to use one of the 2 different type of Honeywell room thermostats together with
your appliance optionally, for providing temperature control of the system.
~Room thermostat(T6360A1004} ~ Programmable digital room
thermostat
(CMlOO}
24
__ __ ,
Honeywell
~ a simple room thermostat
~+10°C .... +30°C
~ 7-day program
~ Up to 4 level changes per day
~ Programmable frost protection
0 Information
The brand name of the room thermostat must be Honeywell,
otherwise
it may cause failure in your appliance. In that
case,
no responsibility will be accepted
- Room thermostat connection is seen in the wiring diagrams (fig.1 a - 1 b - 1 c).
- Disconnect the bridge between pole number 3
and pole number 4 of terminal
number
33.
- Connect the room thermostat connections to the same poles.
