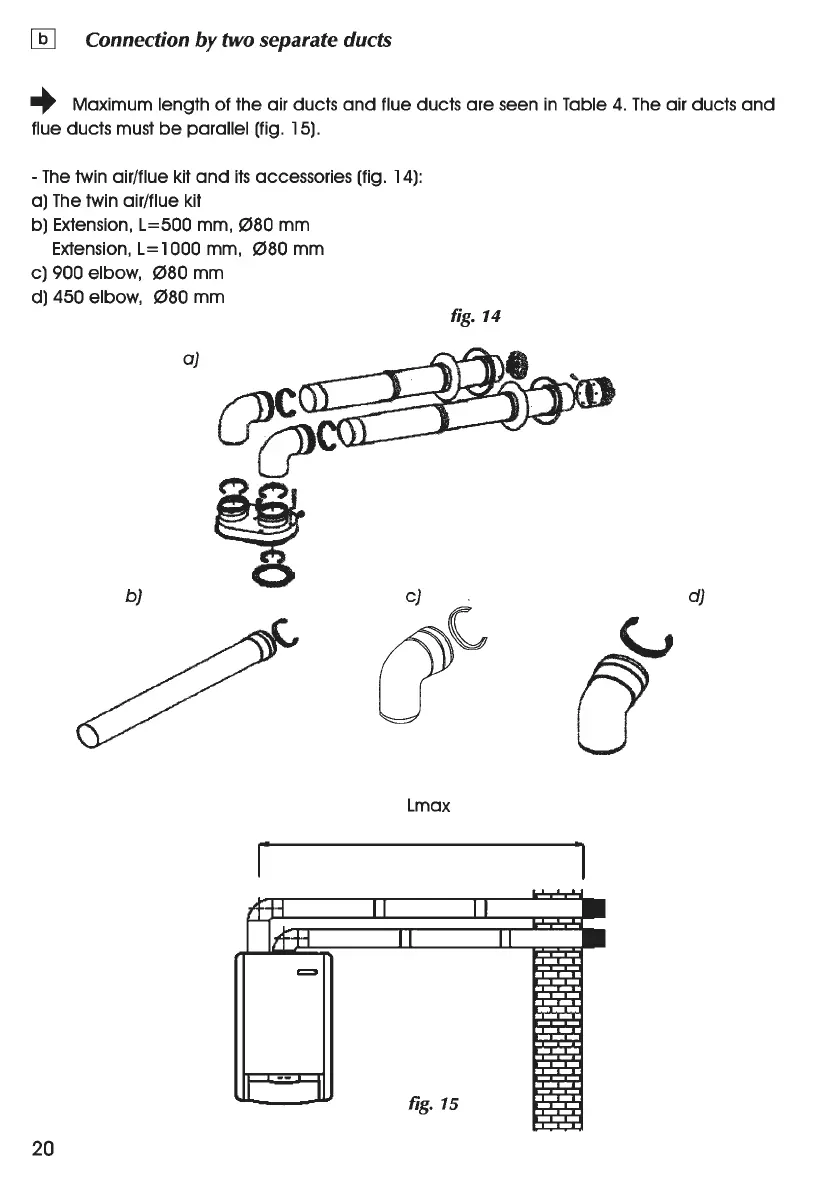

Connection
by
two separate ducts
+ Maximum length
of
the air ducts
and
flue ducts are seen
in
Table
4.
The
air ducts
and
flue ducts must
be
parallel (fig.
15).
-
The
twin air/flue
kit
and
its
accessories (fig.
14)
:
a)
The
twin air/flue kit
b) Extension,
l=500
mm,
080
mm
Extension,
l=
1 000 mm,
080
mm
c) 900 elbow,
080
mm
d) 450 elbow,
080
mm
a)
b)
20
fig. 14
c)
(J~
lmax
d)
&
'I
