CLASS 2000 METER

15 62-0389-03

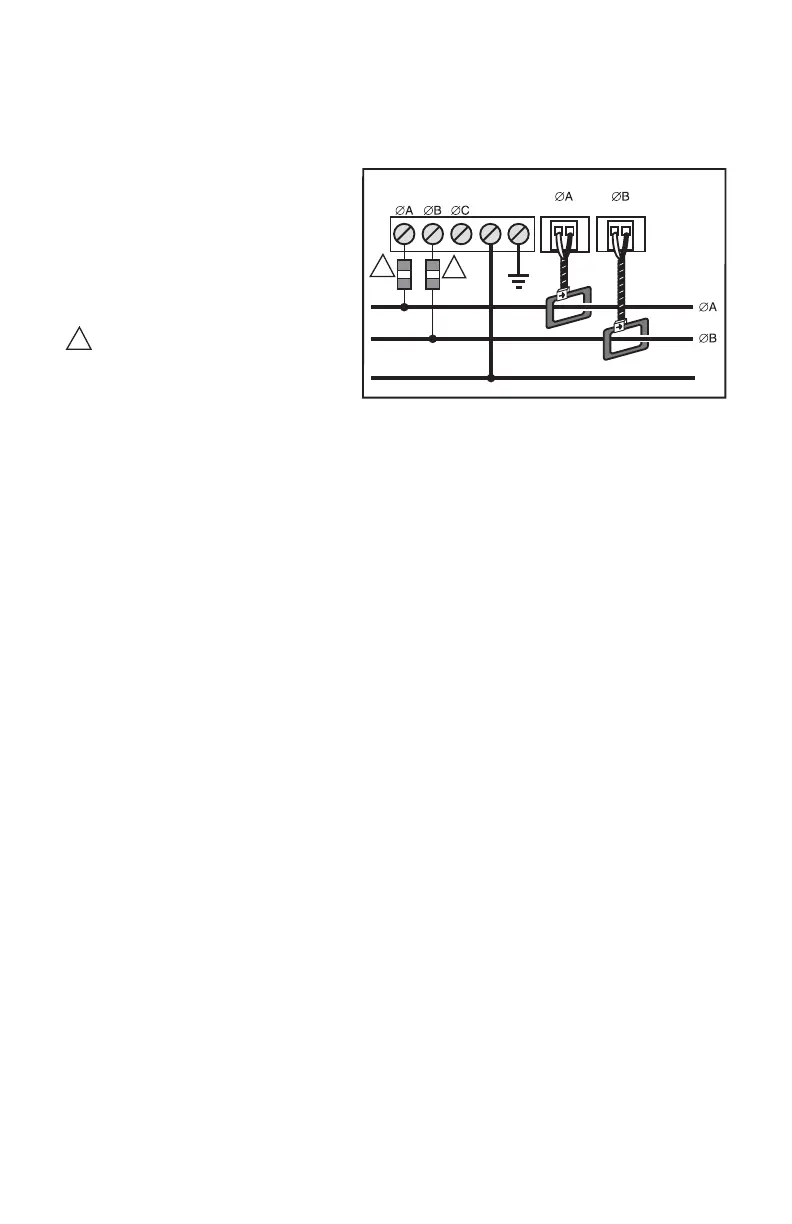

Fig. 9. Single-Phase, 3-Wire Installation Diagram.

W B W B N

LINE VOLTAGE

CURRENT SENSORS

SINGLE-PHASE, 3-WIRE CONNECTION

120/208/240-VOLT SINGLE-PHASE

LOAD SOURCE

M34223

NOTES:

LINE VOLTAGE CONNECTION: #14 AWG

SENSOR CONNECTION: B = BLACK W = WHITE

IMPORTANT: LINE VOLTAGE MUST BE PRESENT AT THE A- AND

B-PHASE VOLTAGE TERMINALS.

SHORTING LINK MUST BE INSTALLED ON C-PHASE CURRENT

SENSOR TERMINALS.

1/10-AMP INLINE FUSES RECOMMENDED.
