CLASS 2000 METER

62-0389-03 8

4.0 METER INSTALLATION

4.1 Mounting the Meter

Using the appropriate sized mounting hardware, fasten the Class 2000 meter

enclosure to the selected mounting surface. The four mounting holes are centered

6.75” H x 4” W. The mounting hole spacing is identical for either the UL Type 1 or

NEMA 4X enclosure.

NOTE: Only the NEMA 4X enclosed unit is suitable for outdoor environmental condi-

tions. Units housed in UL Type 1 enclosures must only be installed in indoor

environments where it will not be affected by the elements, such as moisture

and extreme temperatures.

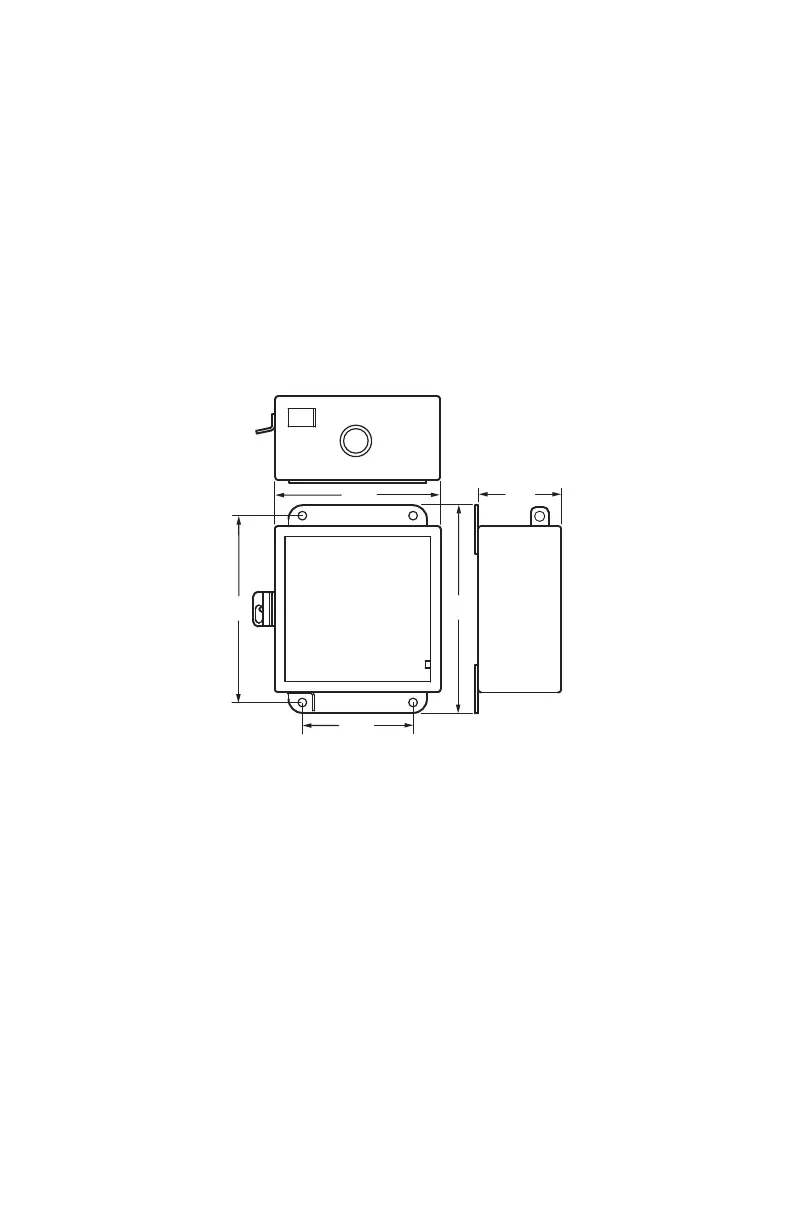

Fig. 3. Enclosure Dimensions.

4.2 Main Power Board Connections

1. Install a temporary ground for ESD (Electrostatic Discharge) protection. With all

circuits de-energized, connect a temporary protective earth ground connection

for ESD protection. Prior to performing any unit wiring, be sure to discharge any

static on your person.

2. Install the Class 2000 Protective Earth Ground. Connect an earth ground wire to

the Class 2000 protective earth ground terminal screw located on the right side

of the line voltage terminal block. After installing the protective earth ground wire,

securely fasten the protective earth ground screw.

3 (76)

7-1/2

(191)

M33627

6 (152)

4 (102)

6-3/4

(171)

E-Mon Class 2000 User Manual
