E-Mon Class 2000 User Manual

CLASS 2000 METER
62-0389-03 20
6.0 KWH METER FEATURES & FUNCTIONS
6.1 KWh Meter Display Features

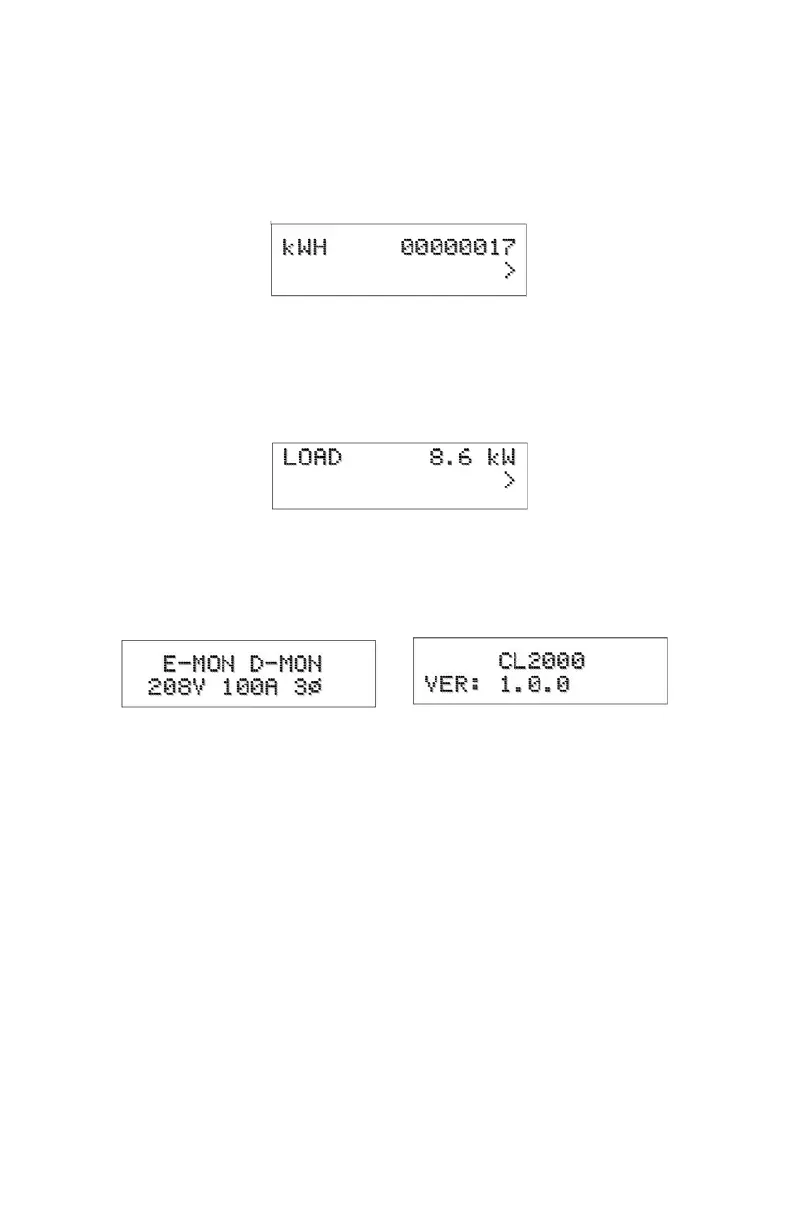

Fig. 15. Normal Mode (kWh Reading).
The Class 2000 kWh meter display requires no multiplier and shows kilowatt-hours
consumed. See section 6.2 for information on calculating cost based on kWh usage.
Fig. 16. KW Load Mode (Current Load in kW).
The Class 2000 kWh meter LOAD display shows the present circuit load in kilowatts.
.
Fig. 17. Start Up Mode.
When initially powered on, the Class 2000 meter will display the startup screens.
This screen indicates the meter voltage, amps and service configuration. It will remain
on for approximately five seconds before switching to the version screen, after which
the meter enters the normal operating mode.
