CLASS 2000 METER
17 62-0389-03

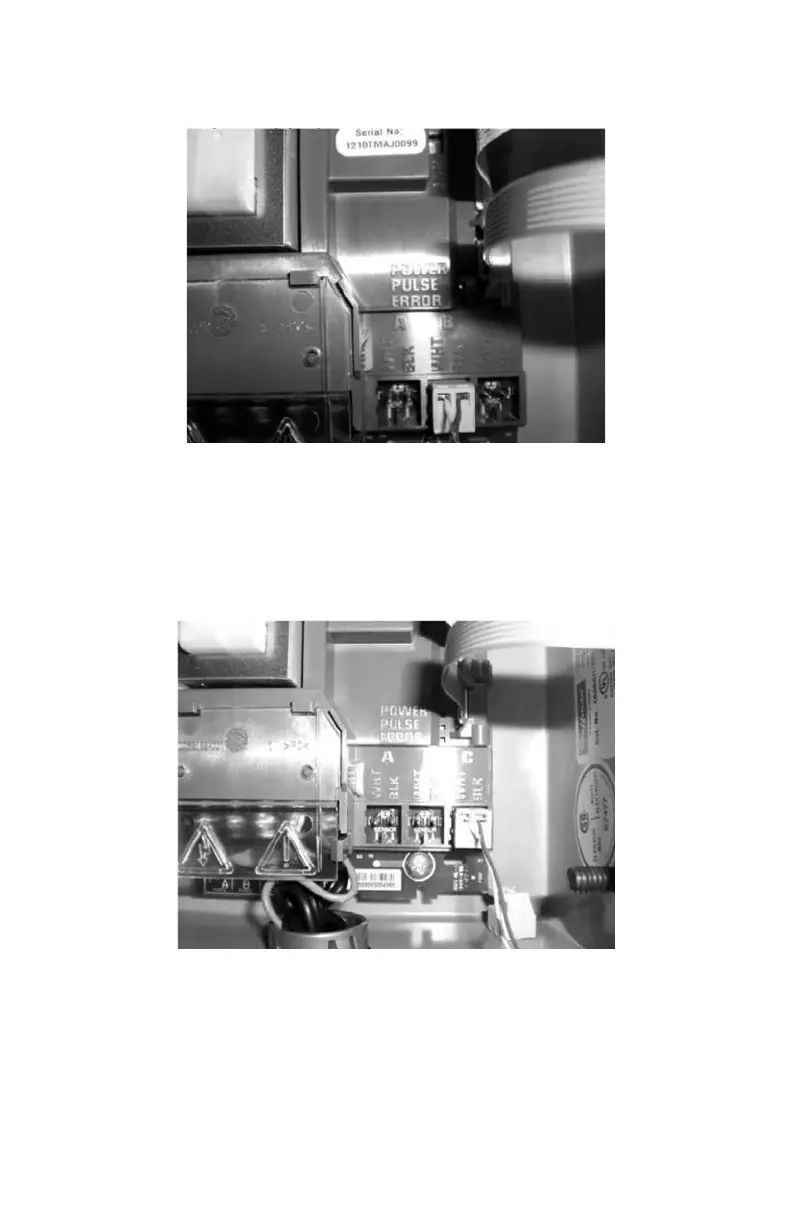

Fig. 12. Error LED.
Repeat the process for the C sensor gray plug. With only the C sensor plug connected,
if the sensor error remains clear, then the C sensor input and the polarity is correct.
Fig. 13. Error LED.
