Page 22
10.0 Meter Technical Specifi cations
Ordering Information: Defi ne input voltage, current sensor rating (amperage) and options.

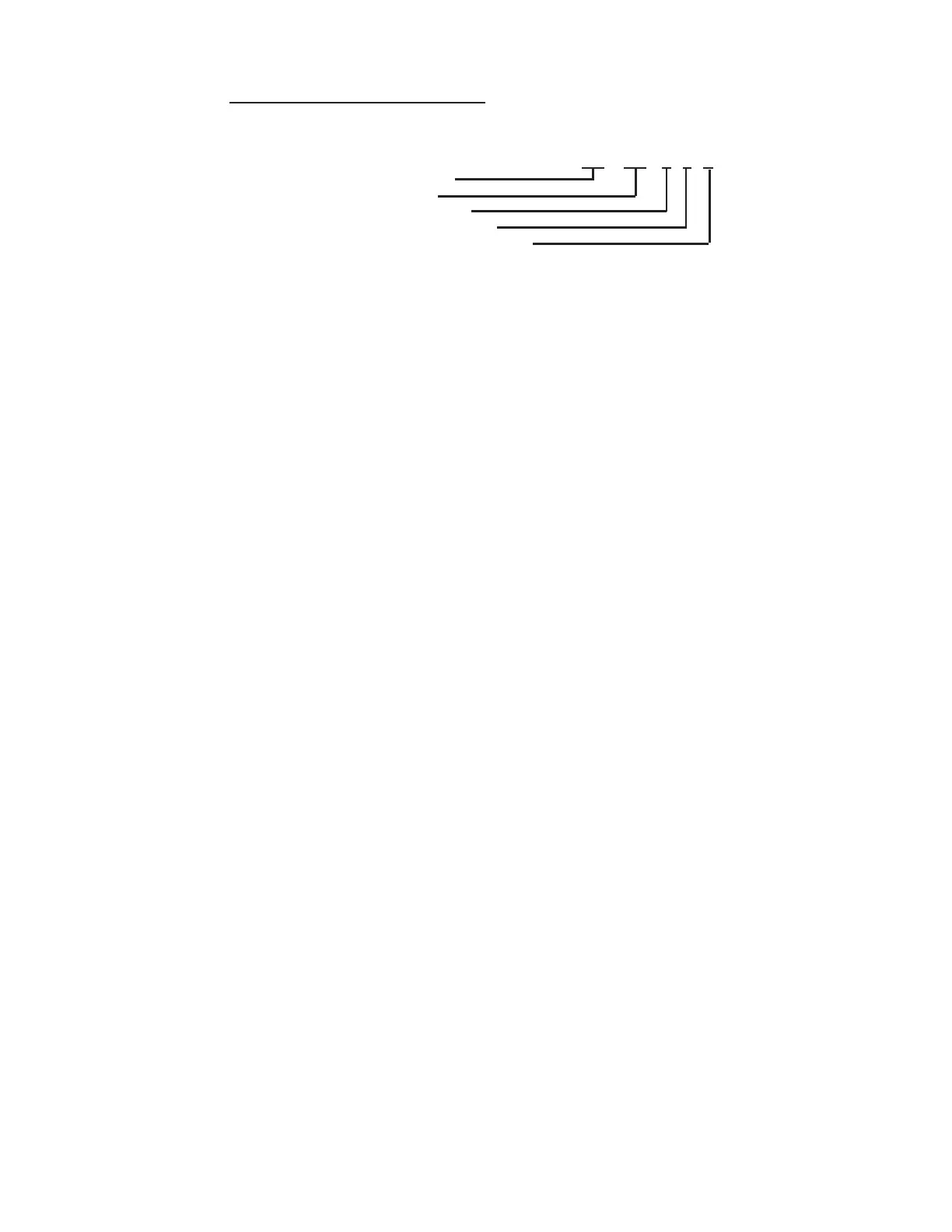

Example: 208 200 D P R
Input Voltage
Amperage
Demand Option
Pulse Output Option
Outdoor Enclosure Option
Input Voltage Confi guration: 3-Wire or 2-Wire Single Phase
MAINS Voltage Input: Up to 277 VAC RMS Available
Input Power: 6VA Maximum Rating
Current Sensor Rating: Up to 200 Amp RMS AC Available
Power Factor: .5 leading or lagging
Line Frequency: 50-60 Hz
Metering Accuracy: Certifi ed to ANSI C12.16 (+/- 1% from
1% to 100% of rated load)
Voltage Operating Range: +/- 10% of rated load
Temperature Range (Standard indoor enclosure): -20 degrees C to +50 degrees C
Temperature Range: (NEMA 4X outdoor enclosure): -20 degrees C to +70 degrees C
Relative Humidity Range: 0-95% Non-Condensing
Altitude: 2000 meters maximum
Voltage Overload: +25% Continuously; +100% for 20 Cycles
Current Sensor Overload: 100% for 1 minute without damaging meter
Pollution Degree: Degree 2 in accordance with IEC 664
Installation (Overvoltage) Category: Category III
Measurement Category: Category III
Indoor Housing Rating (Standard): NEMA 12
Outdoor Housing Rating (Optional): NEMA 4X
Display Readout: KWh Accumulated, Instantaneous kW
Standard Ranges: 3-Wire, 120/208 VAC: 100, 200
2 Phase, 120/240 VAC: 100, 200
IDR Interface Port: Cable Specifi catons: UL Listed/Rated Telephone Cord, 6-conductor
300 VAC, stranded conductors, 22-26 AWG.
Input/Output Voltage: +5 VDC/18 VAC
Cable Connector: RJ-45 male IDC
Ckt Input Isolation: 5.3K VAC for 1 Minute
Ckt Output Isolation: 2.5K VAC
Isolated Pulse/Alarm Outputs (TB5, TB6):
Output Voltage Potential: 0 VDC to +5 VDC Logic Levels
Mating Plug Connector: Weidmuller PN: 152876
Signal Isolation Voltage: 5.3K VAC for 1 Minute
Recommended in-Line Fuse:
Manufacturer: Littlefuse
Mfg Part No.: KLDR.100
Rating: 100mA, Time Delay, 600 VAC Cartridge Fuse
