Quick Guide - Telecamere IP e-Vision serie SMART - 090000964
5.2 DOME cameras installation
To install dome cameras, please follow the instructions given below carefully.
5.2.1 Installation of fixed lens DOME cameras

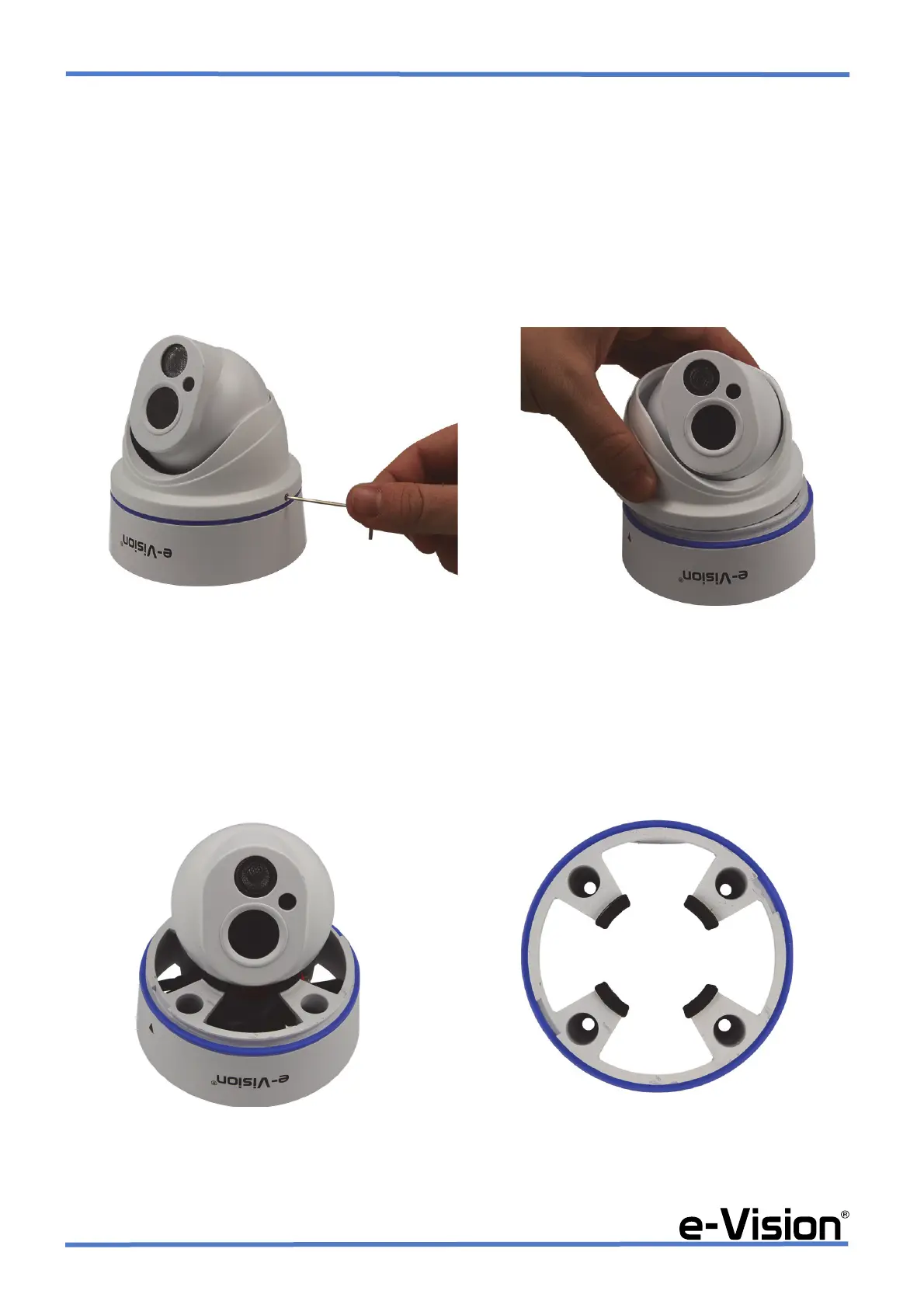

•STEP 1
Unscrew the camera base screws using the provided hex key (A), then remove the fixing ring (B).
:
•STEP 2
Separate the camera body from the base (A) and fix the base to the wall or ceiling using the very base as template (B).
Drill the holes for the dowels, insert the dowels into the holes, and screw the base to the dowels with the screws (both
dowels and screws provided)..
