EACON EC5000 Series - Optional Operators and External Components

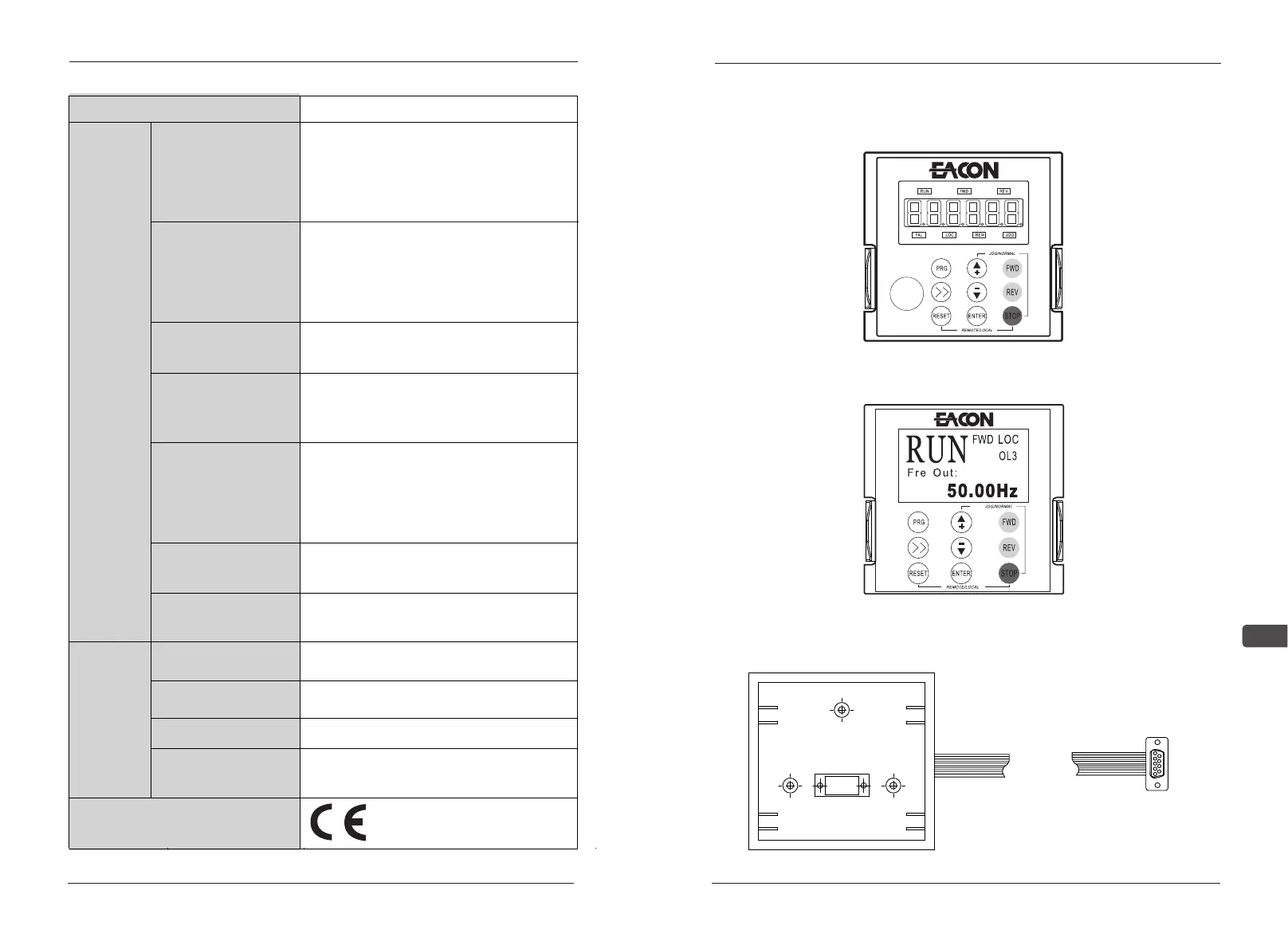

■ LED Operator PU-01
■ LCD Operator PU-02
■ External Component PUZ-01
Appendix B
-
1 Optional Digital Operators and External Components
Appendix
EC5000
- 126 - - 127 -
9
Performance
General Model(G): About 250% AC drive rating current
Blower/Pump Model(P): About 200% AC drive rating
current
Over Load
General Model(G): 150% rating output current for 1min
before sliding stop
Blower/Pump Model(P): 120% rating output current for
1min before sliding stop
Over current
Motor stops sliding when the output voltage of rectifier
exceeds 410V (200V grade) / 820V(400V grade).
Instantaneous
Over Current
Series
EC5000
UnderVoltage
Motor stops sliding when the output voltage of rectifier
drops down to 190V (200V grade) / 380V(400V grade)
or lower.
Instantaneous
Power-Failure
Compensation
Instant stop when instantaneous power-failure lasts for
15ms or longer. (Default setting) According to standard
setting, if the power
-
failure is shorter than 2 seconds,
continue operation.
Heat Radiator
exceeds 105
Speed Loss Protection
Speed loss protection during acceleration, deceleration
and constant speed operation
Thermistor protection, takes effect when temperature
C
。
Environment
Temperature/Humidity
-10 ~ +40 90%RH and lower (no dewing)
Operation Place
No higher than altitude 1000m above sea level, indoor
(no corrosive gas, liquid, no dust)
Storage Temperature
﹣20℃ ~ 60 ℃
Environment
Vibration
Under 20Hz and below: 9.8m/s2(1G)
20 ~ 50Hz: 5.88m/s2(0.6G)
C
。
C
。
International Certification
Appendix
EC5000
