EACON EC5000 Series - 400 V AC Drive Installation Dimensions

EC5000
Installation and Wire Layout
- 10 -
- 11 -

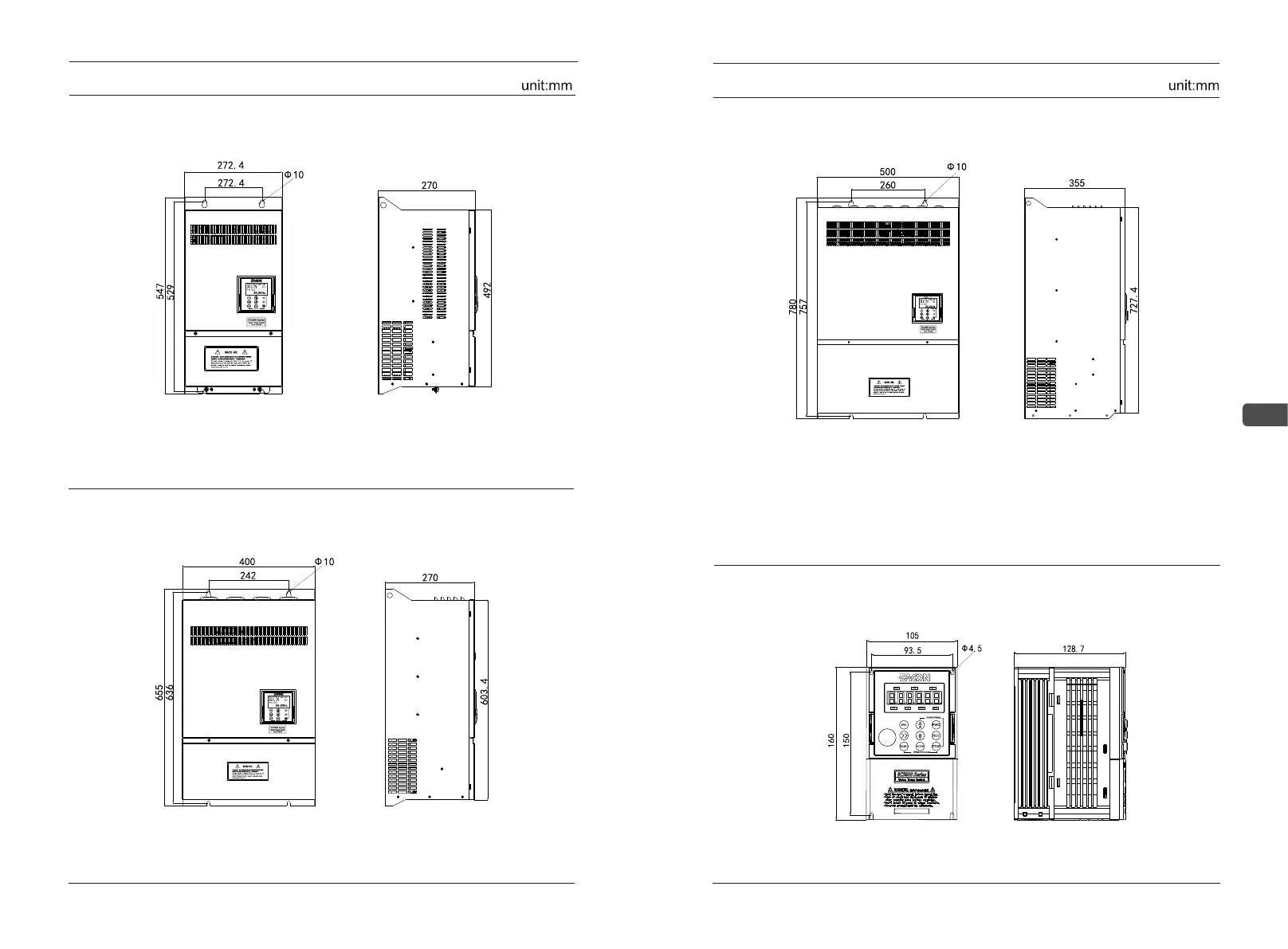

Frame80：EC50110G23B、EC50132G23B
EC5000
Frame60：EC50045G23B、EC50055G23B
Installation and Wire Layout
Frame70：EC50075G23B、EC50090G23B
2
unit:mm
2.3.2 400V Installation dimension of AC drive
Frame10：EC50D75G43C、EC501D5G02D2P43C
