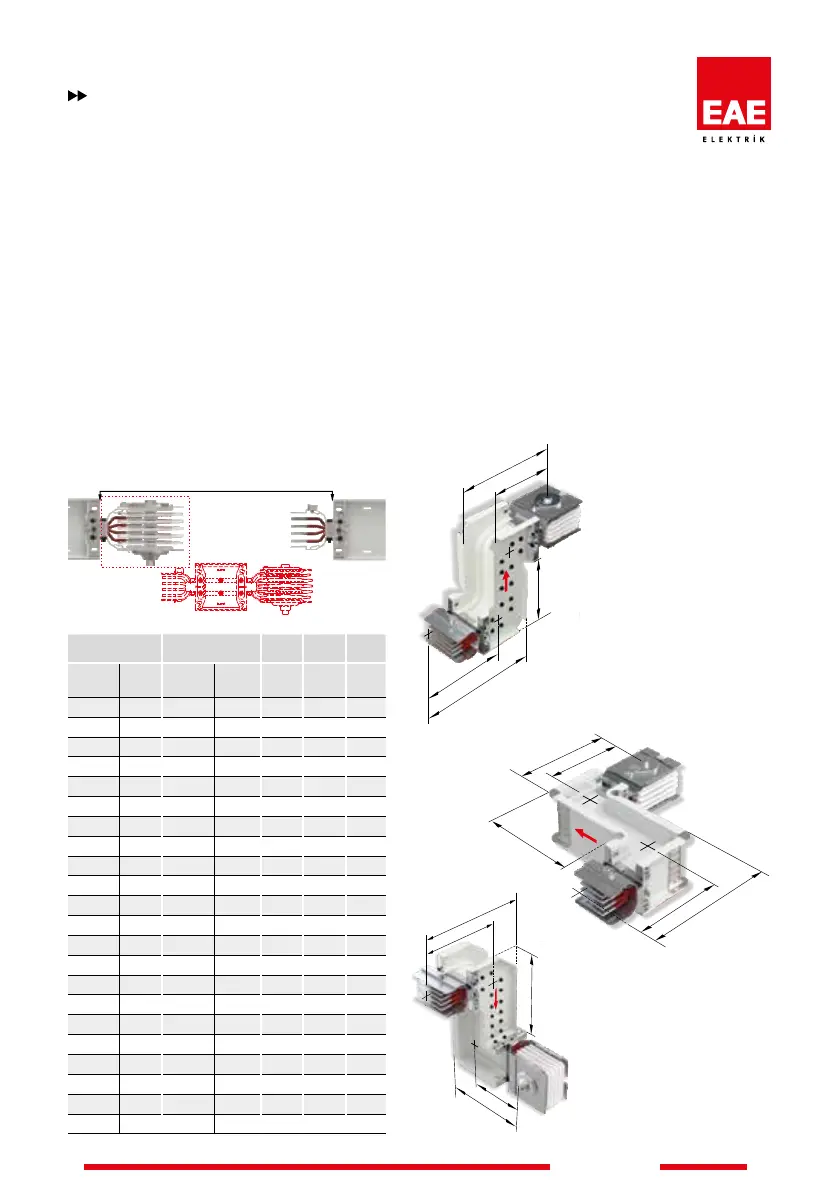

Determination of Special Lengths of Offset Sizing
1- Special length (particular or custom size)
busbars are used in places where standard
sizes do not t when the busbar is mounted and
in other similar places. The minimum length for
these special element is 35cm. Please measure
the lengths of these modules as shown below.
2- Length A is measured between housing
of 2 busbars in cm. "A". The special length
is calculated by deducting 25cm from this
measured length.
X=A-25 (cm) X=Length of Special Busbar (The
busbar module will be manufactured as per X
value.)
3- In the case in where custom-made
intermediate-size busbars are required, both
ends of the intermediate-size busbars can
be produced with or without block joints. In
such cases, please contact our company for
technical support and technical information.
Note: Please send a drawing for combined
offsets when ordering. Indicate bolted and
non-bolted ends on the drawing.
325
A
X
Y
250
325
250
325
B
B
A
250
B
Y
A
A
Aluminium Copper A B X
Rated
Current
Busbar
Code
Rated
Current
Busbar
Code
(mm) (mm) (mm)
400 04 550 05 252 214 427
500 05 650 06 257 217 432
630 06 800 08 267 222 442
800 08 1000 10 282 229 457
- - 1250 12 297 236 472
1000 10 1350 14 307 241 482
- - 1600 17 322 249 497
1250 12 - - 337 256 512
1350 14 2000 23 352 264 527
1600 17 - - 387 281 562
2000 20 2500 25 427 301 602
2500 27 - - 477 326 652
- - 2000 22 377 276 552
- - 2500 27 407 291 582
2500 25 3300 32 487 331 662
- - 3600 36 517 346 692
3150 32 4000 40 547 361 722
3200 33 - - 587 381 762
4000 40 5000 50 667 421 842
5000 51 - - 767 471 942
- - 6300 63 907 541 1082
6300 63 - - 1057 617 1232
Vertical Offset
min = 250 mm
max = 490 mm
min = 300 mm
X=min:280mm, max:
Use table.
Horizontal Offset
Combined Offset
