Installation

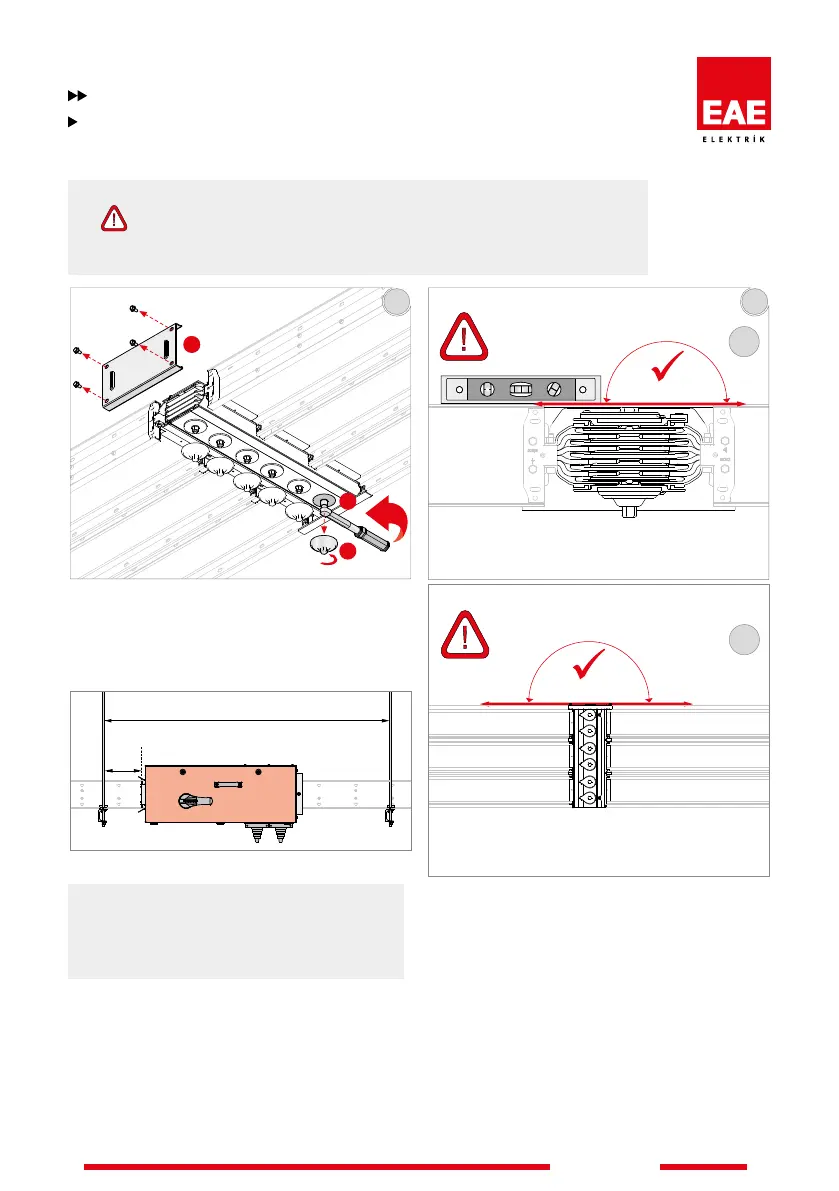

"Bolt-on" Busbar Tap Off Boxes (KXB Box)
2- Remove the joint cover (1). Remove locking
piece for nut of joint where tap-off box is xed
(2). Loosen the main bolt from nut side by torque
wrench (3).
1- Remove the locking pieces. Remove the joint
side cover plate and keep the plate and the
screws for future use.
• Do not try to install bolt-on tap-off boxes to
plug-in points of the busbar or vice versa.
• Do not try to install 4 wire tap-off boxes to 5
wire busbar or vice versa.
Important!
Busbar system must be de-energised before mounting or removing a
“bolt-on” tap off box.
2
1
3
1
180°
2
2.1
2.2
180°
min.
200
mm
max.1500 mm
