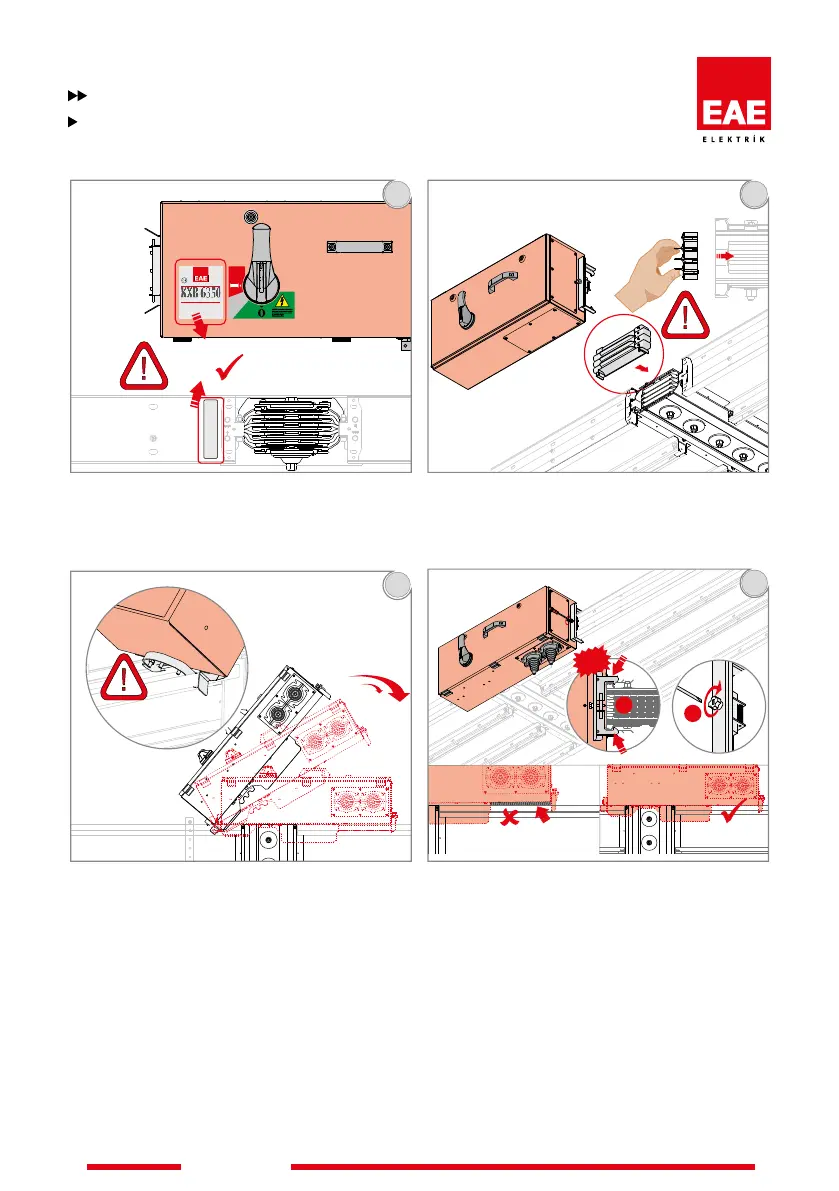

3- Check the phase squence of the busbar and
tap-off box.
4- Use the alignment plastic piece to x the joint
set. Make sure the direction of the neutral.
6- Be sure for proper clamping of KXB tap-off
box's claws (1). Complete xation by tightening
the plastic headed screw (2).Be sure that there
is not any gap between busbar and tap-off box.
5- Fix the KXB Bolt-on tap-off box to the holes
on busbar with a correct direction.
(Be sure that breaker’s handle is off position.)
Installation
"Bolt-on" Busbar Tap Off Boxes (KXB Box)
P
I
R
T
IEC 60439-2
Bol t-on U NIT
Rated Insulation Voltage ............
Rated Frequency ..............................
Protection Degree ...........................
Wire ..........................................
: 1000 V
: 50/60 Hz
: IP55
(Ui)
(f)
(IP)
: 3P+N+PE (Housing)
E L E K T Rİ K
L3
L2
L1
N
3
4W
N
L1
L2
L3
4
5
1
2
CLACK
6
