Installation

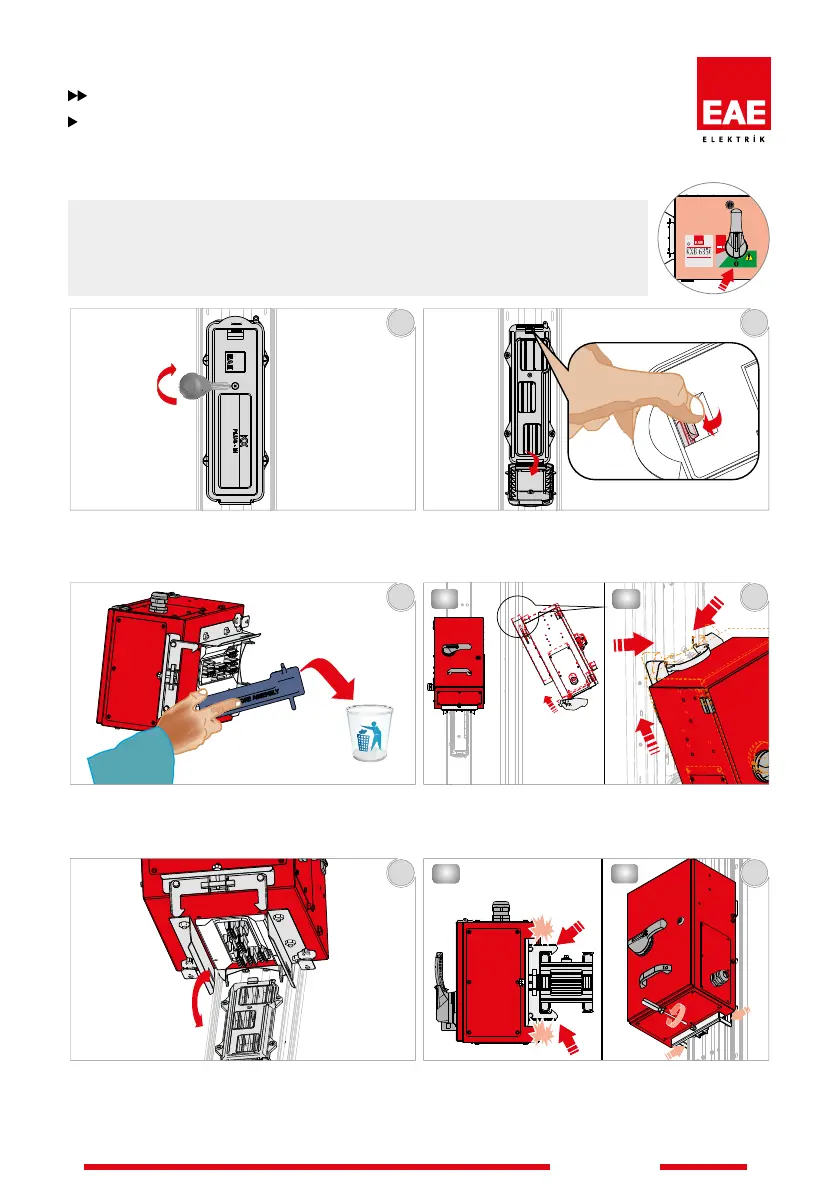

"Plug-in" Busbar Tap Off Boxes (KXP Box)
1- Remove the xing screw of "plug-in" tap off
point cover using cross-recessed screw driver.
3- Throw the contact protection cover to the
recycling waste bin.
4- Place the KXP Plug-in tap off box to the holes
on the busbar with an angle.Push the tap off box
upwards as shown in gure 4-b.
5- Check the alingment of the contacts. Push
the box towards the busbar.
2- Open and push the cover back, the "plug-in"
tap off point cover should be opened to a position
which will not block the way for installation of the
box. Do not remove the cover plate.
Vertical Application
Warning!
* Do not try to install plug-in tap off boxes to bolt-on busbar or vice versa.
* Do not try to install 4 wire tap off boxes to 5 wire busbar or vice versa.
P
I
R
T
IEC 60439-2
Bolt- on UNI T
Rated Insulation Voltage ............
Rated Frequency ..............................
Protection Degree ...........................
Wire ..........................................
: 1000 V
: 50/60 Hz
: IP55
(Ui)
(f)
(IP)
: 3P+N+PE (Housing)
E LE KT Rİ K
внимание!
вмешиваться должен
только уполномоченный
персонал
1 2
3
4-b
4-a
4-b
4
5
6- Push the box to the busbar housing "click"
sound will be heard from the locking parts on the
box ensure the interlock between the box and the
housing then tighten the screw.
6-a6-a
6-b6-b
CLICK
CLICKCLICK
CLICK
6
