Things to be taken into consideration in
vertical distribution project
As each building's structure is different than the other for vertical applications of E-Line KX special
projects has to be designed.
The details on this page briefly explain the necessary information.

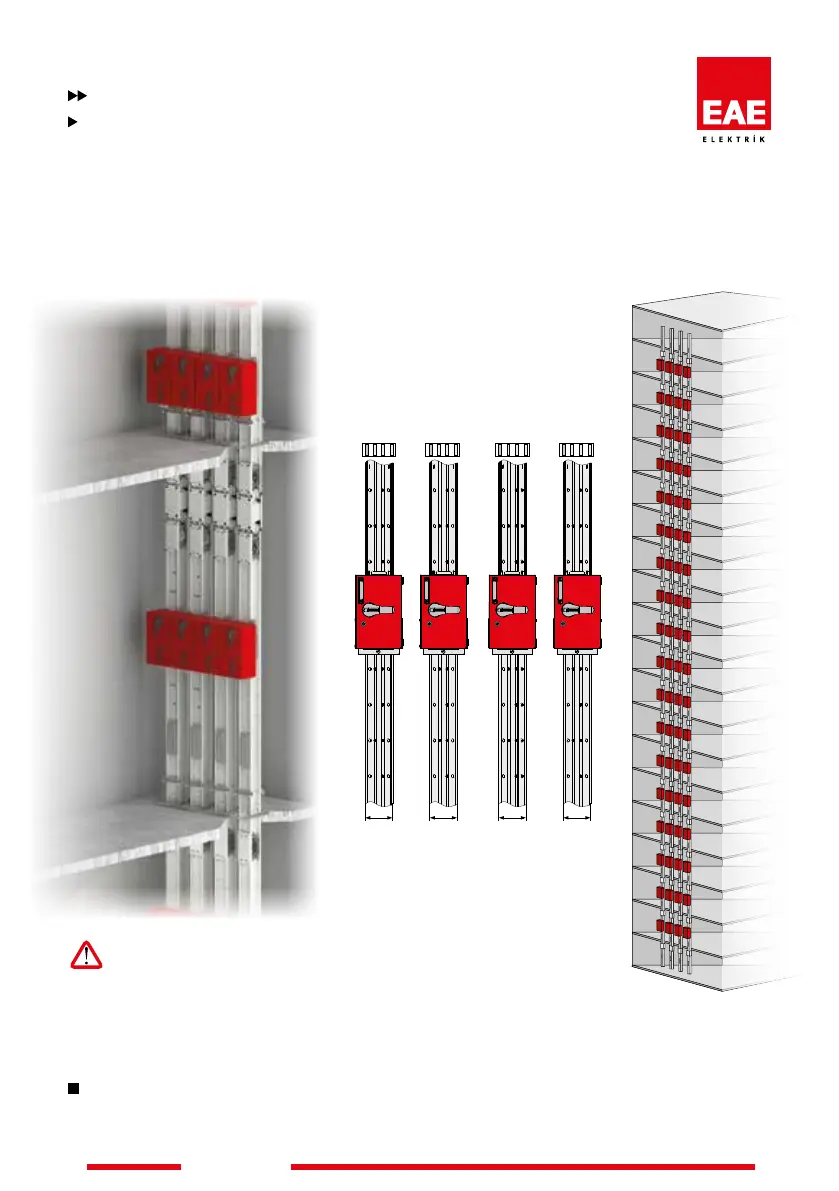

In multipath busbars in high-rise vertical shaft applications;
Due to floor heights, floor thickness and product tolerances, the window
or additional point alignments on the upper floors may not be the same.
In order for the Tap off boxes to be aligned and the joint point not to
coincide with the floor transitions, the assembly should be continued by
making measurements on each floor.
N
L1
L2
L3
N
L1
L2
L3
N
L1
L2
L3
N
L1
L2
L3
150 150150 150
Installation
EAE is not responsible for the potential risks that may occur in cases
where the products in our catalogue are used outside of the standard
phase sequences as shown in the catalogue.
