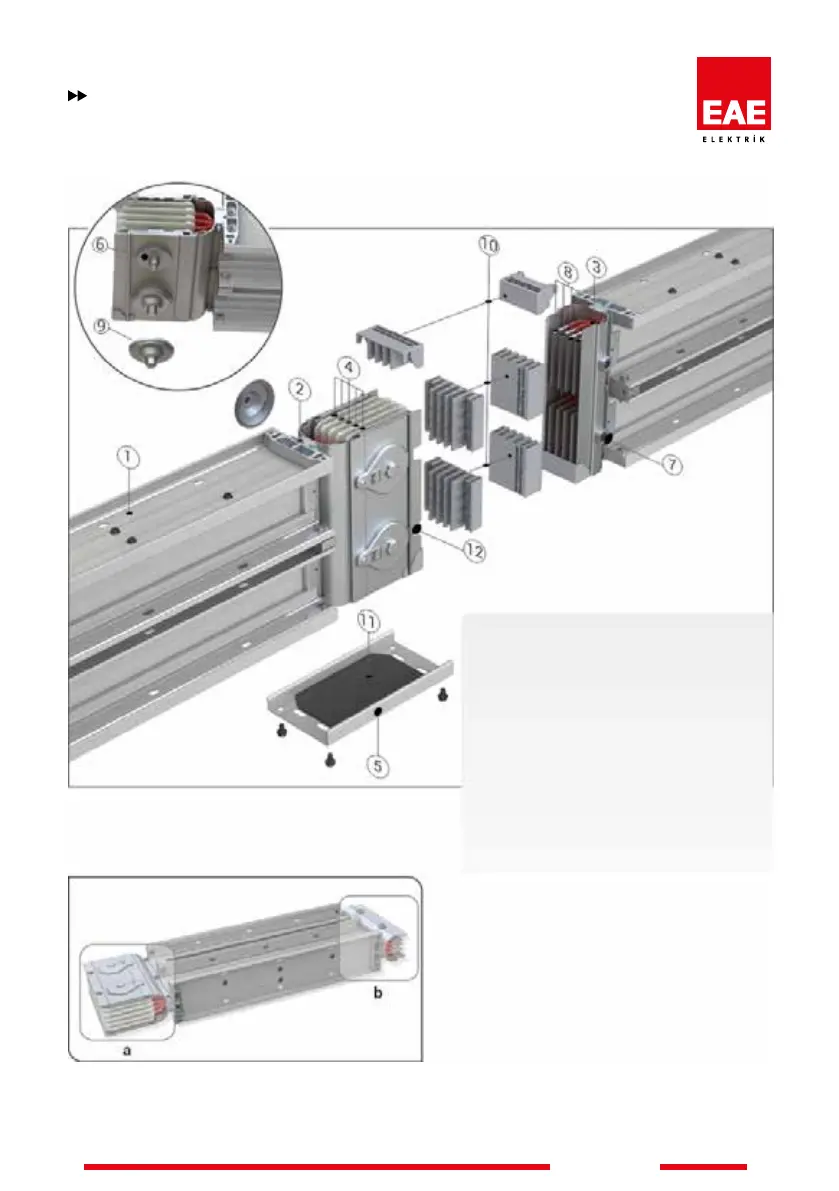

Joint Structure
1. Extruded Aluminium Housing
2. PE Fixing Piece
3. Insulation Layers
(Epoxy+polyester lm)
4. Joint Insulators
5. Joint Cover
6. Belleville Washer
7. Alignment Pin (removable)
8. Conductors
9. IP55 Nut Locking Piece
10. Protection Plastics
11. IP55 Joint Cover Gasket
12. Alignment Pin Slot NB Protective
covers 10 are discarded.
KX busbars are manufactured in 3m lengths
as standard, with special lengths as detailed
on the project drawings. All modules have a
block joint end and the other end of the
module has not block joint.
