"Bolt-on" Busbar Tap Off Boxes (KXB Box)
8- Then tighten the locking piece by 40Nm to
complete installation(1).

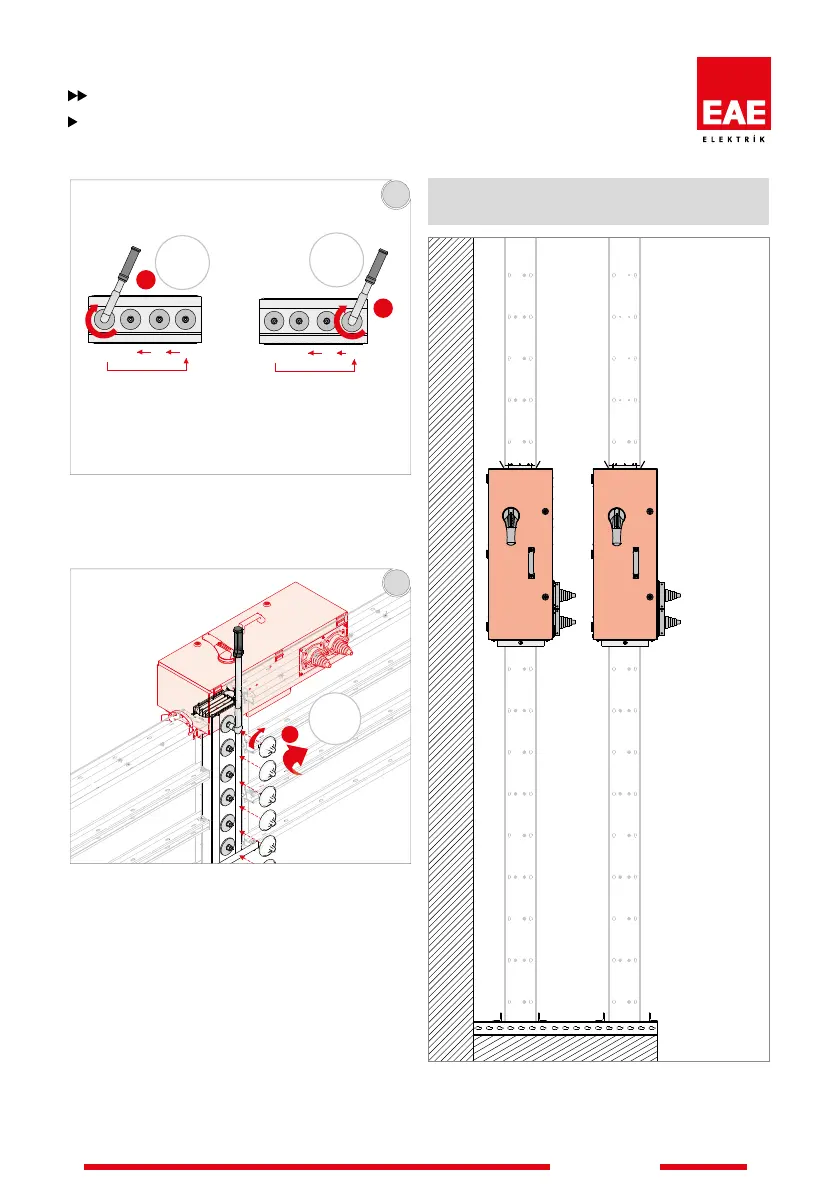

VERTICAL APPLICATION
7- If there are more than one bolt for the same
phase, bolts shall be tighten by hand
approximately 20-30Nm as per above sequence,
then 83Nm shall be applied at nal torque with
the same sequence.
Installation
First Torque
(20 Nm)
Final Torque
(83 Nm)
