Product Manual Oria Thermostat
EAE KNX Oria Thermostat Oria Thermostat PM R1.0

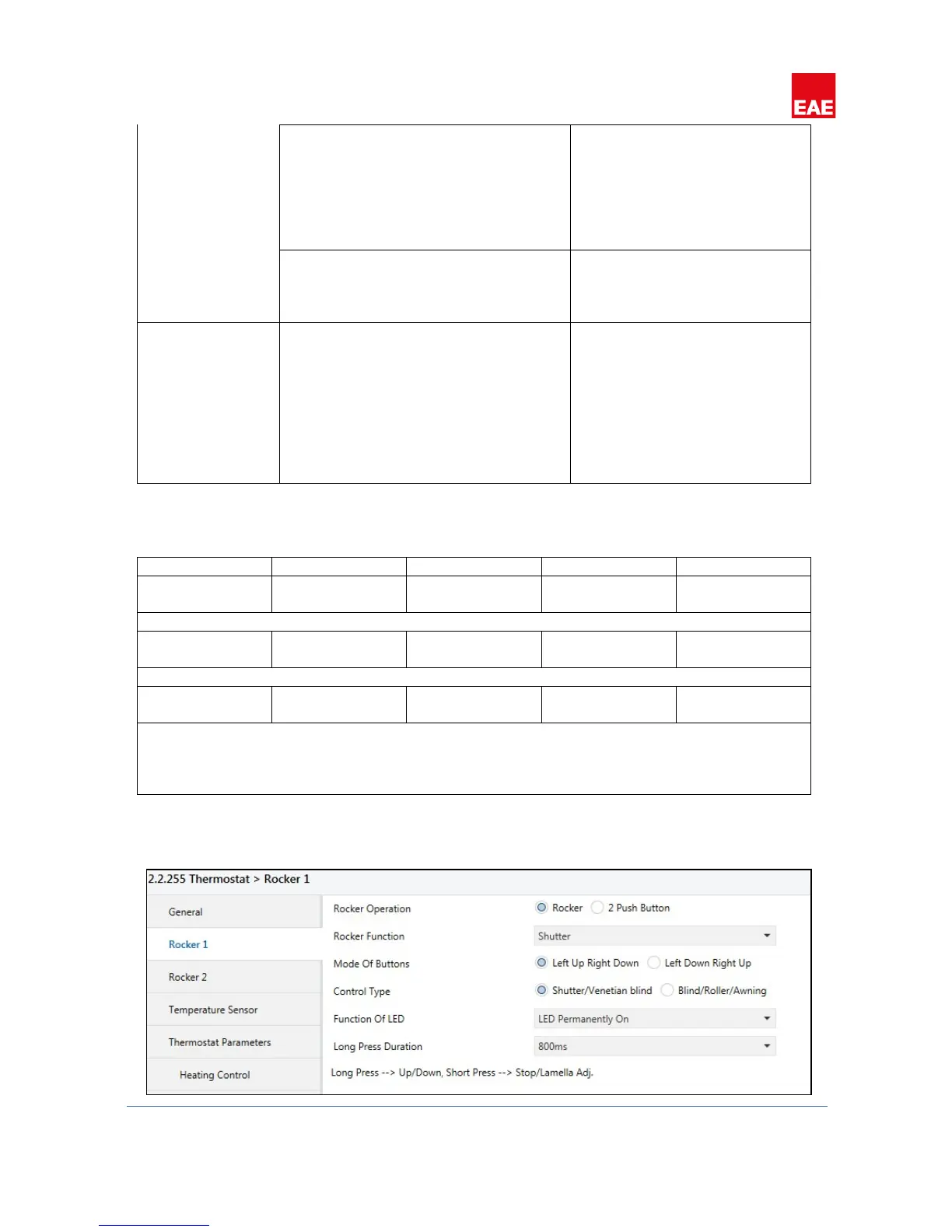

©EAE!Technology!! ! ! ! www.eaetechnology.com!! ! ! Sayfa!14!/!50!
!
!
Inverted Status Indication
Status LED of last pressed rocker
button is off, other rocker button is
on. If “Separate Comm Object”
parameter selected as “Enable”
status LEDs will wait for confirmation
from communication object before
changing state.
Operation Indication
Status LED of the pressed rocker
button will be on for the time period
selected at “Light Duration of LED”
parameter at “General” tab.
Separate Comm
Object
Enable / Disable
Only visible when “Function of LED”
selected as “Status Indication” or
“Inverted Status Indication”. This
communication objects is the input of
confirmation for status LEDs. If
selected as “Enable” respective
communication object should be
linked to an appropriate group
address
Table 7
4.2.1.2.2# Communication#Objects#
No
Object Name
Function
Data type
Flags
1
Rocker1 – switch
On/Off
1 bit
DPT 1.001
CWT
On/Off telegrams will be send to group address that is linked to this communication object.
2
Rocker1 – dimming
Dim
4 bit
DPT 3.007
CWT
Dimming values will be send to group address that is linked to this communication object.
3
Rocker1-Status
Comm.Obj.
On/Off
1 bit
DPT 1.002
CWT
Confirmation for On/Off switch telegrams will be received from this communication object. If these
communication object visible, it must link to an appropriate group address. Otherwise status LEDs will not
function correctly. If status confirmation not to be used the communication object should be disabled by
“Separate Comm Object” parameter.
Table 8
4.2.1.3 Shutter'
