Product Manual Oria Thermostat
EAE KNX Oria Thermostat Oria Thermostat PM R1.0
©EAE!Technology!! ! ! ! www.eaetechnology.com!! ! ! Sayfa!33!/!50!
!
!
4.4.4.1.1' Parameters'
Parameter
Setting
Description
Cyclic Interval
1… 5 …255
Time period to send heating
control value over “Heating
Control Value” communication
object.
Inverse Output
Enable / Disable
Invert the output of the controller.
For example if normal output is
%80, then inverted output is %20.
Proportional Gain KP
1… 66 …255
Proportional gain of PI algorithm
Integral Gain KI (1/1000)
1… 32 …255
Integral gain of PI algorithm, given
value divided by 1000.
Maximum Control Signal (%)
0… 100
Maximum control signal value.
Minimum Control Signal (%)
0 …100
Minimum control signal value
Transmit on Modification
Enable / Disable
When control signal change more
than (%4), heating control value
will be transmitted over “Heating
Control Value” communication
object.
Table 29
4.4.4.1.2' Communication'Objects'
No
Object Name
Function
Data Type
Flags
61
Heat Control Value
Send
1 byte
DPT 5.001
CT
Heating actuator will be controlled through this communication object.
Table 30
4.4.4.2 PI,PW M,

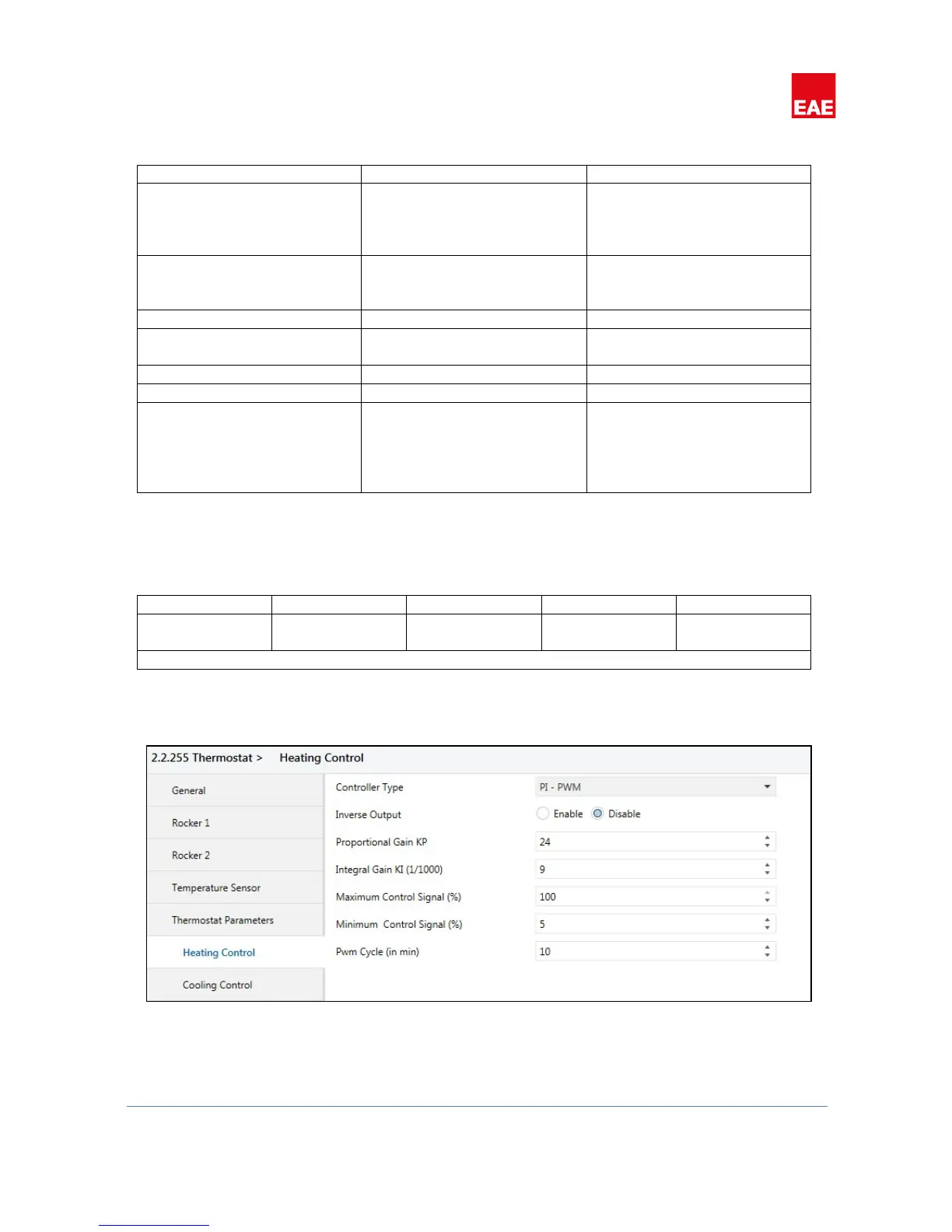

Figure 15
For more information how the PI parameters and PWM cycle should be selected Chapter 4.4.3.2
