4.2.2.3.2# Communication#Objects#
*[6] LED Function – Status Indication
Status indication operates the same way for “Shutter/Venetian Blind” and “Blind/Roller/Awning”. LEDs status
respective to blind’s state and “Button Function” configuration given below;
Up Mode
Down Mode
Toggle Mode
Moving upward
Blink
Off
Blink
Moving downward
Off
Blink
Blink
At top position
Off
Off
Off
At bottom position
Off
Off
Off
Stop between top - bottom
Off
Off
Off
Table 22
When “Function of Led” selected as “Status Indication”, “Top Position” and “Bottom Position” communication
objects given below must be linked to the appropriate group addresses for the LEDs to function correctly.
4.2.2.4'' Value'Operation'

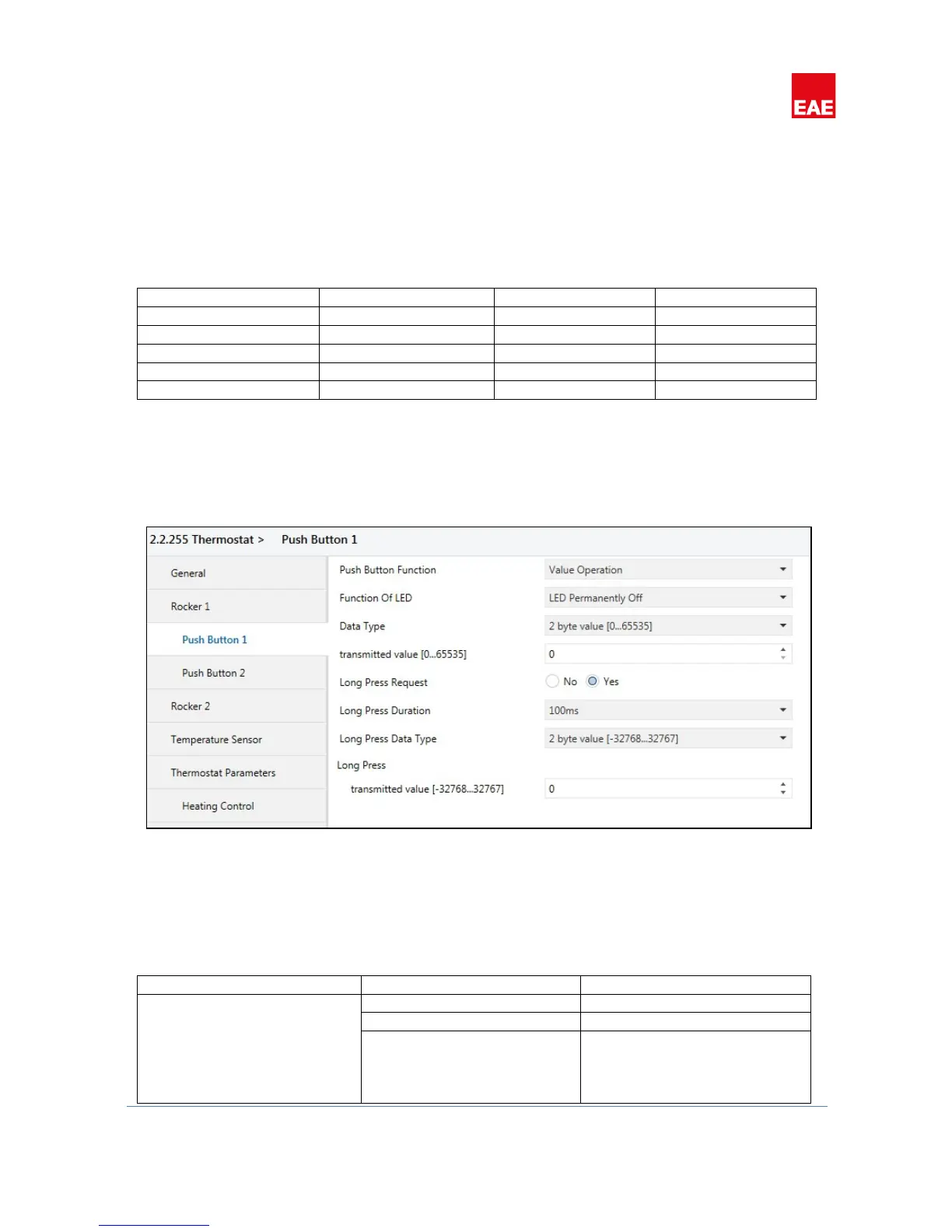

Figure 11
Push button can be configured to send predefined values from different data types. Additionally, a long press
request can be enabled to be used as a secondary value operation.
4.2.2.4.1# Parameters#
Parameter
Setting
Description
Function of Led
LED Permanently Off
LED always off
LED Permanently On
LED always on
Operation Indication
Status LED of the pressed rocker
button will be on for the time
period selected at “Light Duration
of LED” parameter at “General” tab.
