5.14 Configuring the OSD
The Vector’s built-in color OSD has many advanced features and display options. Even so, it can be easily
configured to display basic information that is sufficient for most
pilots.
The Vector’s OSD will automatically continue to show information on
the screen (in grayscale) if your camera should stop functioning in
flight. Note: EagleEyes tracking and telemetry is NOT available
without a functioning camera connected to the OSD.

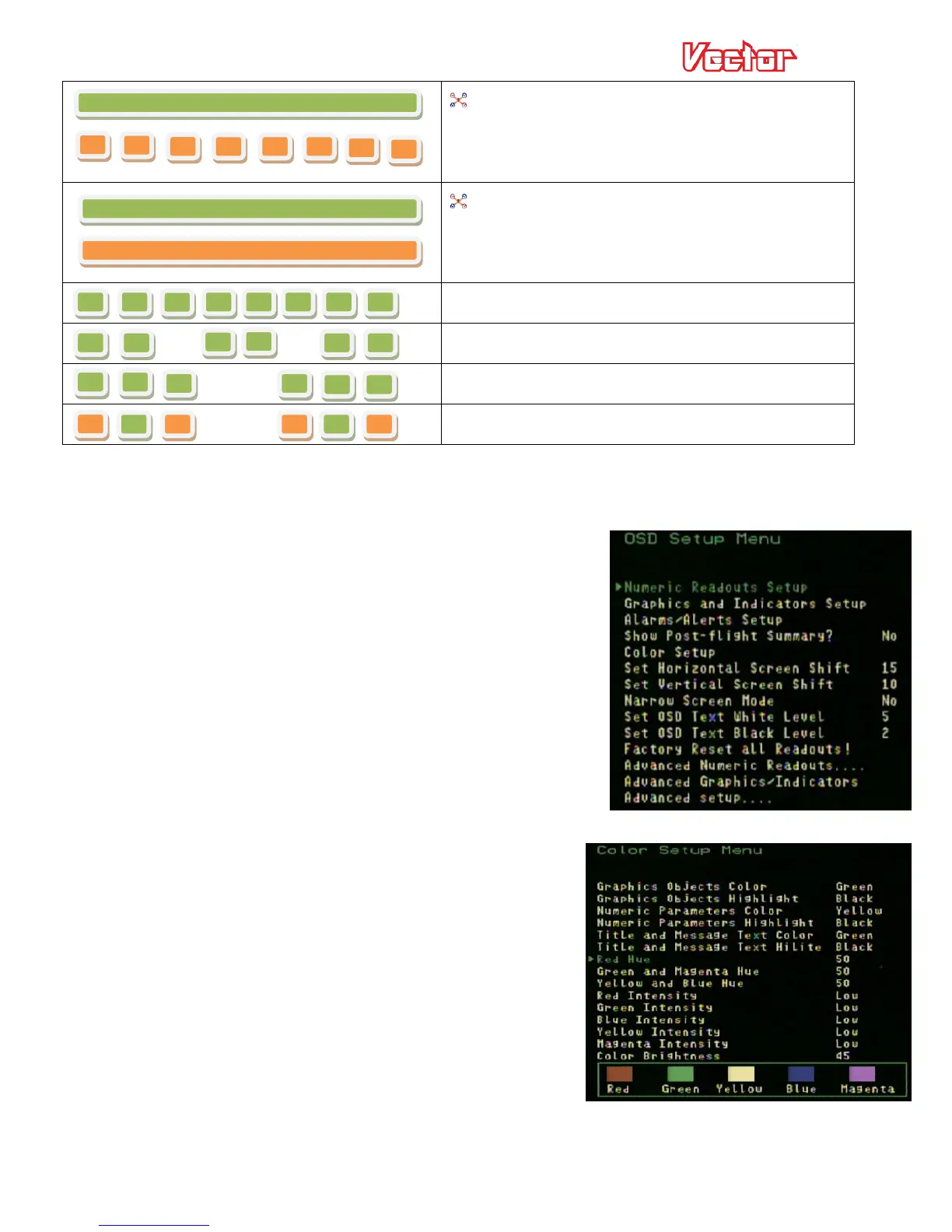

All OSD settings are made in the “OSD Setup” menu, from the main
menu.
The steps for configuring the OSD are:
Adjusting the display so that it is easily readable through your
goggles or monitor
Setting your preferred display units
Deciding which items you want to display on the OSD
screen
Setting desired alarms and alerts
5.14.1 Adjusting the Display
If you are happy with the appearance of the display, no further
changes are needed.
If the OSD information is not centered on your screen, change the
horizontal and vertical screen shift settings to reposition it.
If the OSD information is too wide for your screen, select Narrow Screen Mode.
If you have trouble reading the text, try changing the black level, or changing the colors of the text, as described
below.
Multirotor is armed, but an error has been
detected. Check the OSD notification area to
determine the cause of the error.
A 2D Flight Mode is selected
A 3D flight mode (including ‘gyro mode’) is selected
A Loiter flight mode is selected
