12
Fig.24a
Fig.24
>>>to secure the Paint Tube (13) to the Tap/ Outside Connector (#9 box checklist). Ensure that >>>you
>>>hold the connector onto the tap and gradually increase the water flow.
Tip: Squeeze and flex the Paint Tube (13) to remove all the paint from inside the tube.
5. Wipe any excess paint off the Gemini Bucket (25) and head unit with a warm damp cloth. This will
ensure your SprayStation Gemini
®
is ready for your next painting project.
● Unscrew Air Cap Ring (2).
● Remove Air Cap (3).
● Remove Spray Direction Plate (4).
● Using Needle and Fluid Tip tool - pincer end A (1) remove Fluid Tip (5).
● Insert Needle and Fluid Tip end B (1) into the inner tube and unscrew Needle (7) anticlockwise, then pull to release the needle.
● Place all of these items into a container and clean, using a brush and the respective thinners.
● Clean the inside of the body of the spray gun.
● Thoroughly dry all parts before reassembling.
● Reassemble parts in reverse order.
● Ensure Air Cap Ring (2) is fully tightened and Fluid Tip (5) is pushed into place so that the spray gun Needle (7) will shut off.
Tip: Ensure Spray Direction Plate (4) is free to move. If necessary loosen Air Cap Ring (2) slightly.
REPEAT THE SAME PROCESS ABOVE TO CLEAN THE FLUID TIP & NEEDLE.
NEVERLEAVE COMPONENTS SOAKING IN WHITE SPIRITS FOR LONG PERIODS.
DO NOT DISMANTLE THE SPRAY GUN BY UNDOING THE SCREWS.

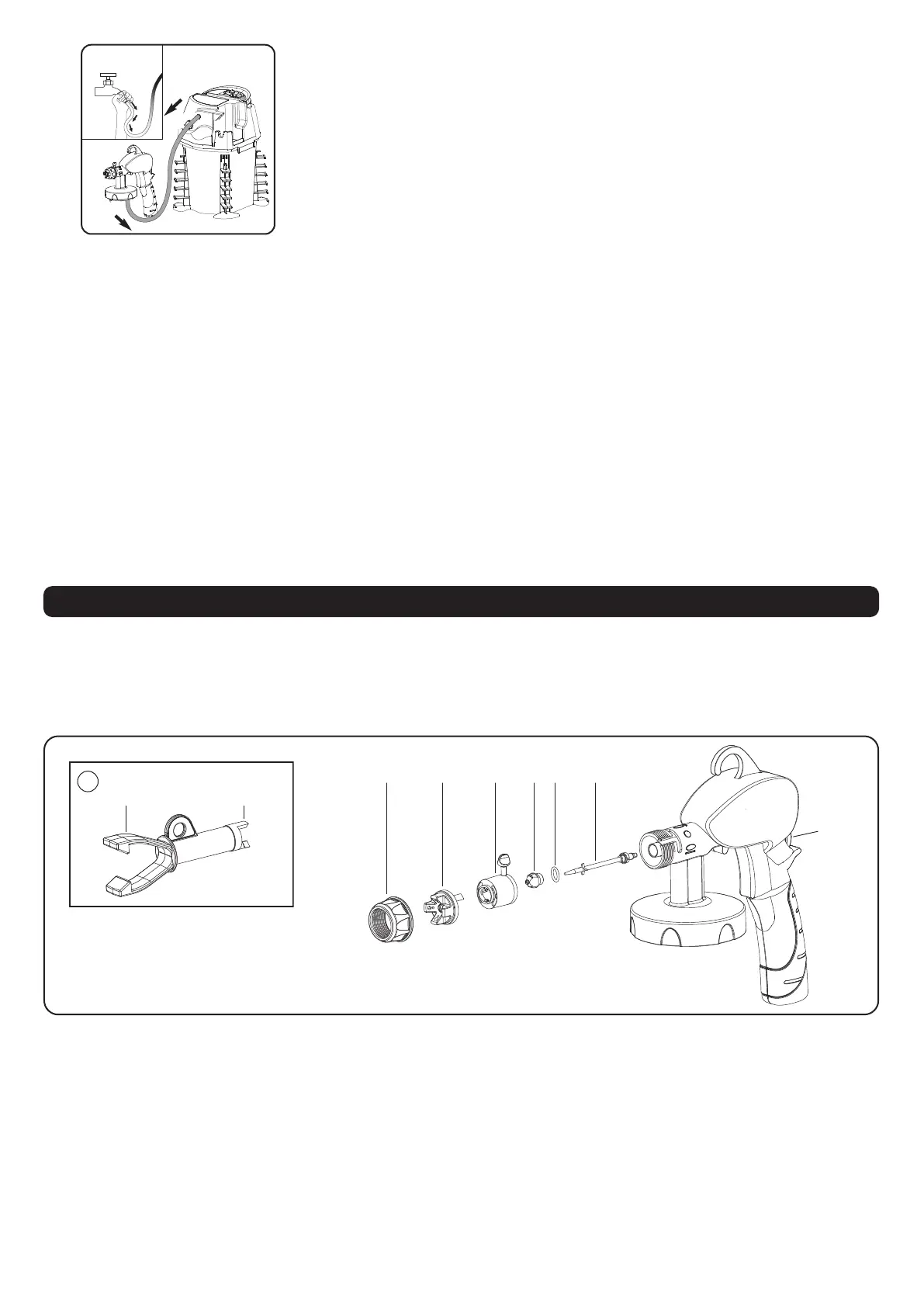

Cleaning Instructions - Spray Gun (Fig.25)
When removing the needle and fluid tip DO NOT remove the lip seal from the needle assembly.
HINT: Before removing or re-inserting the needle and fluid tip ensure the spray gun has been flushed through with water or the appropriate thinners
so the inner tube is clean.
HINT: The cleaning operation on the spray gun can take less than 5 minutes. If taking a break, leave the spray gun in a plastic bag to prevent the
>>>>>paint from drying.
Fig.25
