Earlex GEMINI - Parts List

Diagrams
5
Parts List
Fig.1 and Fig.2
What’s in the box (checklist)
1. How to DVD
2. Instruction Manual
3. Gemini - Turbine & Pump
4. Spray Gun
5. Connecting Plate
6. 13´ Paint Tube
7. 13´ Air Hose
8. Hose Clip x5
9. Faucet/ Outside Faucet Connector
10. Viscosity Cup
11. Paint Stirrer
12. Bottle Brush
DVD
DVD
FF0108
FF0105
n/a
FF0039
HVACGEM5
HVACGEM6
L0896
HVACGEM8
HVACGEM9
SG243
HVACGEM3
HVACGEM2--

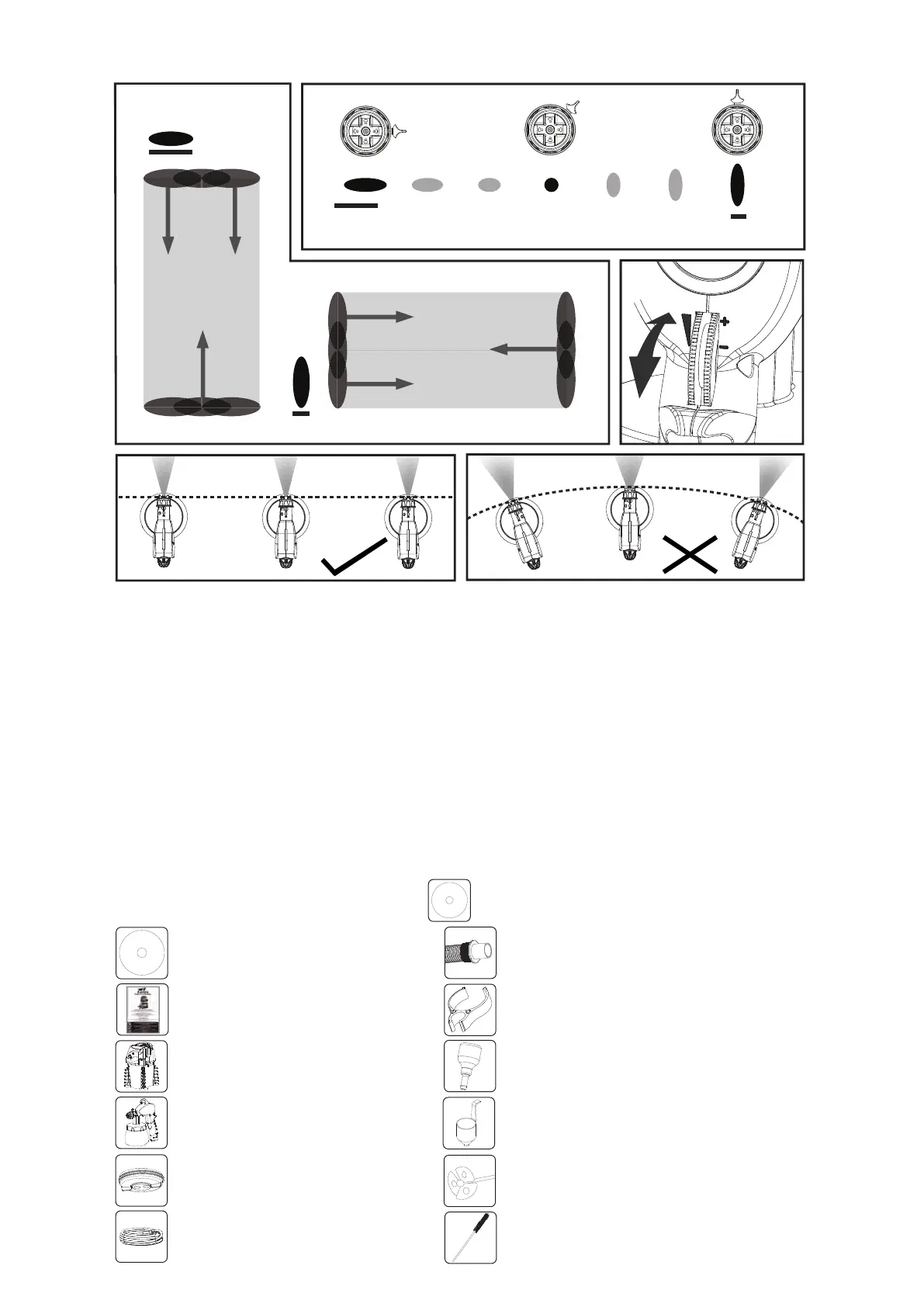

VERTICAL
HORIZONTAL
ROUND
VERTICAL APPLICATION
HORIZONTAL APPLICATION
Fig.4
Fig.3
Fig.5
Fig.6 Fig.7
No. Description Part No.
1. Needle and Fluid Tip Tool V0018
2. Air Cap Ring V0001
3. Air Cap - Gemini FF0006
4. Spray Direction Plate - Gemini FF0008
5. Fluid Tip - Gemini FF0005
6. Fluid Tip O-ring V0005
7. Needle V0006
8. Paint Flow Adjuster n/a
9. Paint Container Gasket L0682
10. Connector Plate HVACGEM5
11. Rigid Pick-Up Tube V0012
12. Paint Pot V0014
12a. Paint Stirrer HVACGEM3
13. Paint Tube HVACGEM6
14. Paint Outlet n/a
No. Description Part No.
15. Air Hose L0896
16. Air Outlet n/a
17. Pump Head HVACGEM7
18a. Pressure Relief Tube V0272
18b. & 18c. Pick-Up Tube & Filter Cage HVACGEM8
19. Docking Station n/a
20. Head Unit n/a
21. Air Filter HVACGEM12
22. Turbine Switch n/a
23. Pump Switch n/a
24. Paint Speed Dial n/a
25. Gemini Bucket FF0001
26. Hose Clip Feet FF0004
27. Viscosity Cup SG243
