EASTMAN PACEMAKER - Flat Fold Platform

27

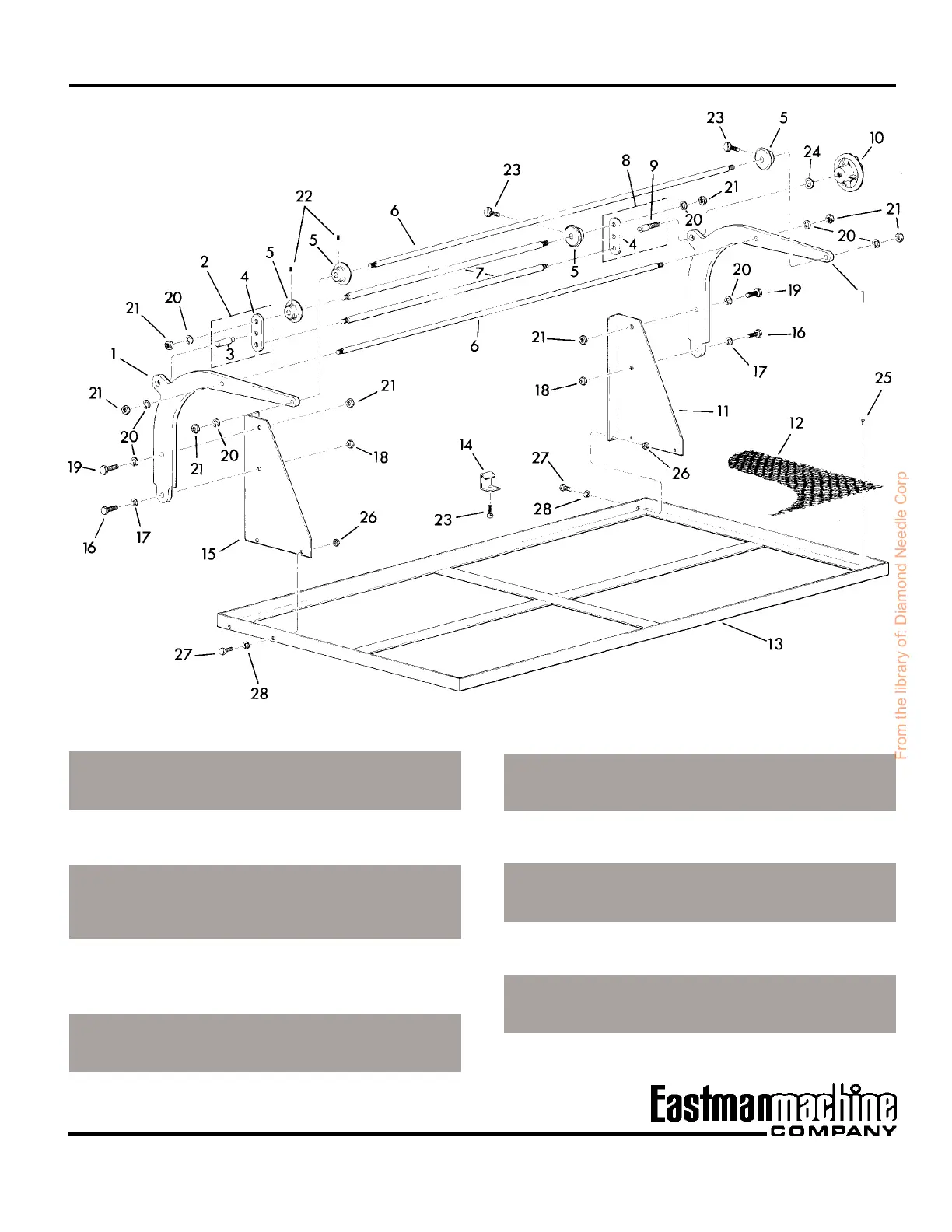

Flat Fold Platform
ITEM PART NO. DESCRIPTION QTY.
16 331-36-16 Scr. Cap Hex Hd. 5/16-18 x 1 2
17 402-36 Washer, Lock 5/16 2
18 205-36 Nut, Heavy Hex 5/16-18 2
19 331-38-16 Scr. Cap Hex Hd. 3/8-16 x 1 2
20 402-38 Washer, Lock 3/8 10
21 205-38 Nut, Heavy Hex 3/8-16 10
22 342-34-4 Setscrew 1/4-20 x 1/4 2
23 387-34-12 Scr. Thumb Metal
1/4-20 x 3/4 4
24 410-44 Washer, Flat 1/2 1
25 328-99-8 Scr. Mach. Philips Pan
Hd. 10-24 x 1/2 12
26 205-34 Nut, Heavy Hex 1/4-20 6
27 331-34-8 Scr. Cap Hex Hd.
1/4-20 x 1/2 6
28 402-34 Washer, Lock 1/4 6
ITEM PART NO. DESCRIPTION QTY.
1 F-19 Gooseneck, Low 2
2 F-0102 Rod, Tension Rear Stud
Assembly 1
3 F-145 Stud, Tension Bar, Plain 1
4 F-147 Plate, Tension Bar 2
5 F-142 Collar Guide 4
6 PM-133-MS Bar, Steel 1/2 Dia. 2
7 F-134-MS Bar, Steel 1/2 Dia 2
8 F-0103 Rod, Tension Front Stud
Assembly 1
9 F-146 Stud, Tension Bar, Threaded 1
10 F-148 Knob, Tension Bar, Hand 1
11 PM-132-L Brace, Flat Fold Corner,
Left 1
12 PM-131-MS Top, Flat Fold 1
13 PM-130-MS Frame, Flat Fold 1
14 PM-135 Clamp, Flat Fold 2
15 PM-132-R Brace, Flat Fold Corner,
Right 1
