EASTMAN PACEMAKER - Movable Catcher

34
EASTMAN

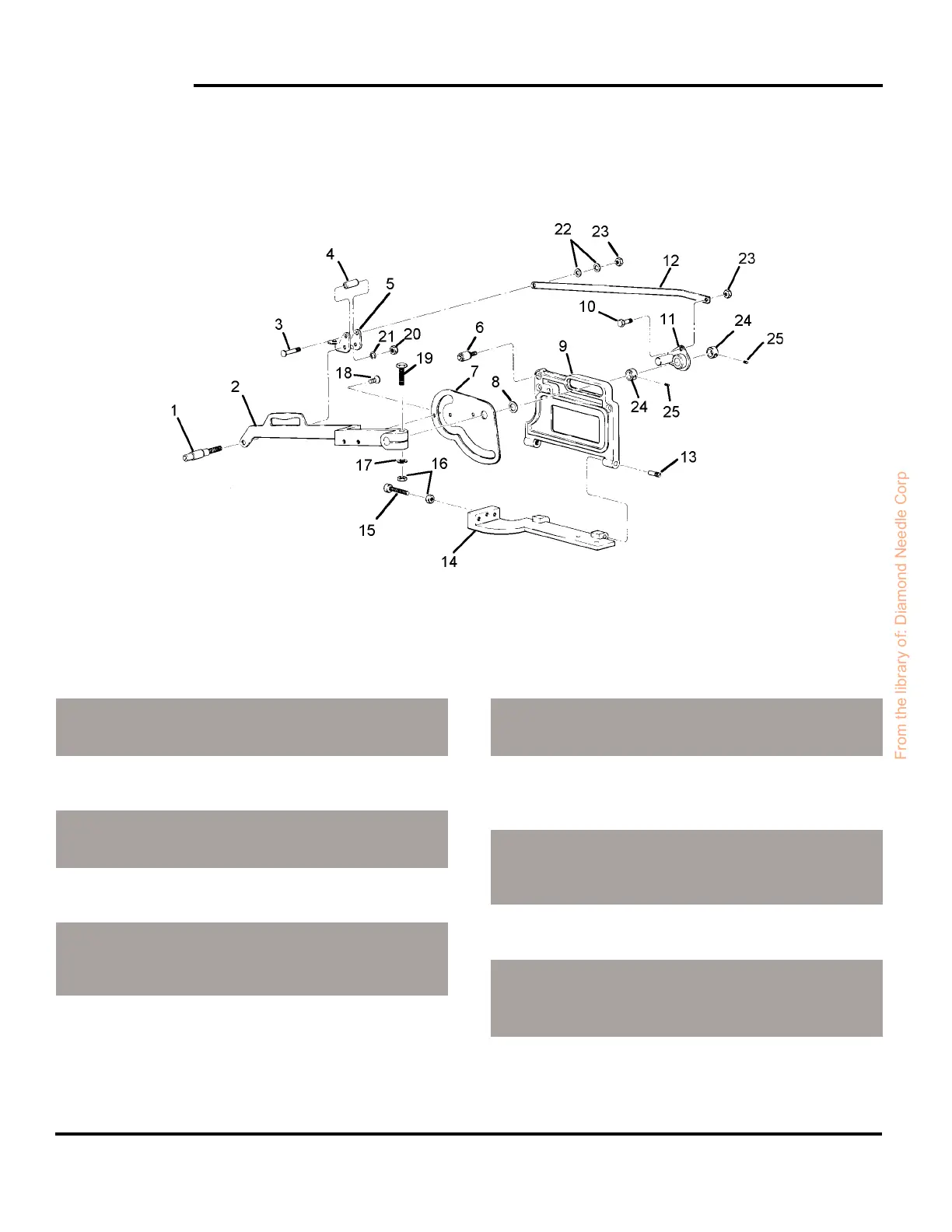

Movable Catcher
Front Frame
ITEM PART NO. DESCRIPTION QTY.
1 PM-0211 Stud, Assembly,
Catcher, Long 1
2 PC-18 Arm, Mov. Catcher Front 1
3 PM-104 Screw, Special 1
4 PM-123 Spacer, Movable
Parallel Brkt. 1
5 PS-27 Bracket, Catcher Bar 1
6 PM-109 Cam, Follower 1
7 PS-26 Cam, Catcher 16" 1
8 F-272-A Washer, Steel .125 Thk. 1
9 PC-15F Frame, Catcher,
Movable Front 1
10 PM-137 Stud, Pivot 1
11 PM-0202 Bracket, Paralleling 1
12 PM-99N Bar, Parallel Movable
Catcher 1
13 F-77 Stud, Catcher Plate Pivot 2
ITEM PART NO. DESCRIPTION QTY.
14 PC-16 Plate, Catcher,
Movable Front 1
15 PM-68A Screw, Stop 1
16 205-38 Nut, Heavy Hex 3/8-16 2
17 402-38 Washer, Lock 3/8 1
18 332-102-8 Scr. Cap. Flthd. Sokt.
10-32 x 1/2 3
19 331-38-36 Scr. Cap Hex Hd.
3/8-16 x 2-1/4 1
20 205-36 Nut, Heavy Hex
5/16-18 2
21 402-36 Washer, Lock 5/16 1
22 M-70 Washer, .250 x .375
x .0312 Steel 2
23 211-99 Nut, Elastic Hex 10-24 2
24 9060-006 Collar 2
25 342-36-4 Scr. Set Sokt. Hd.
5/16-18 x 1/4 2
