EASTMAN PACEMAKER - Stationary Catcher

37
Stationary Catcher

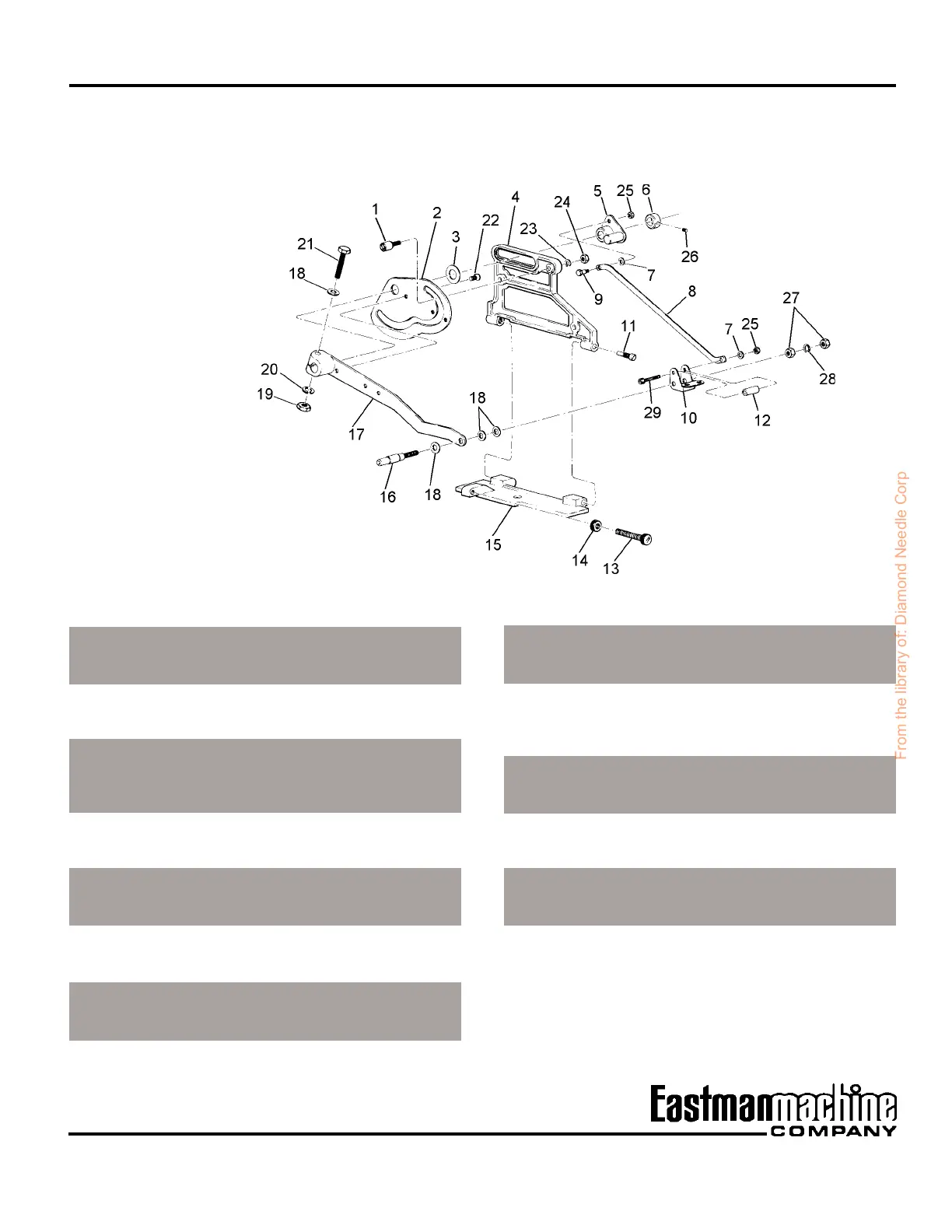

Front Frame
ITEM PART NO. DESCRIPTION QTY.
1 PM-109 Cam Follower 1
2 PS-25L Cam, Catcher, 14" 1
3 F-272A Washer, Steel .125 Thk. 1
4 PC-10F Frame, Front 1
5 PM-0201 Bracket, Paralleling 1
6 9060-006 Collar 1
7 M-70 Washer, .250 x .375
x .0312 2
8 PM-102 Bar Paralleling, Stat.
Catcher 1
9 PM-137 Stud, Pivot 1
10 PS-27 Bracket, Catcher Bar 1
11 F-77 Stud, Catcher Plate Pivot 2
12 PM-124 Spacer, Stat. Paralleling
Brkt. 1
13 PM-68A Screw, Stop 1
14 PM-74 Locknut 1
15 PC-11 Plate, Front Catcher 1
16 PM-0211 Stud, Assembly, Long 1
17 CHTC-15L Arm, Left Stationary
Catcher 1
ITEM PART NO. DESCRIPTION QTY.
18 410-38 Washer, Flat 3/8 4
19 205-38 Nut, Heavy Hex 3/8-16 1
20 402-38 Washer, Lock 3/8 1
21 331-38-36 Scr. Cap Hd. Hex
3/8-16 x 2-1/4 1
22 332-102-8 Scr. Cap Flthd. Sokt.
10-32 x 1/2 3
23 402-34 Washer, Lock 1/4 1
24 205-34 Nut Heavy Hex 1/4-20 1
25 211-99 Nut Elastic Hex 10-24 2
26 342-36-4 Scr. Set Sokt. Hd.
5/16-18 x 1/4 1
27 205-36 Nut, Heavy Hex 5/16-18 2
28 402-36 Washer, Lock 5/16 1
29 355-34-24 Scr. Shoulder Sokt. Cap
1/4 x 1-1/2 1
