SDM320C User Manual V1.2

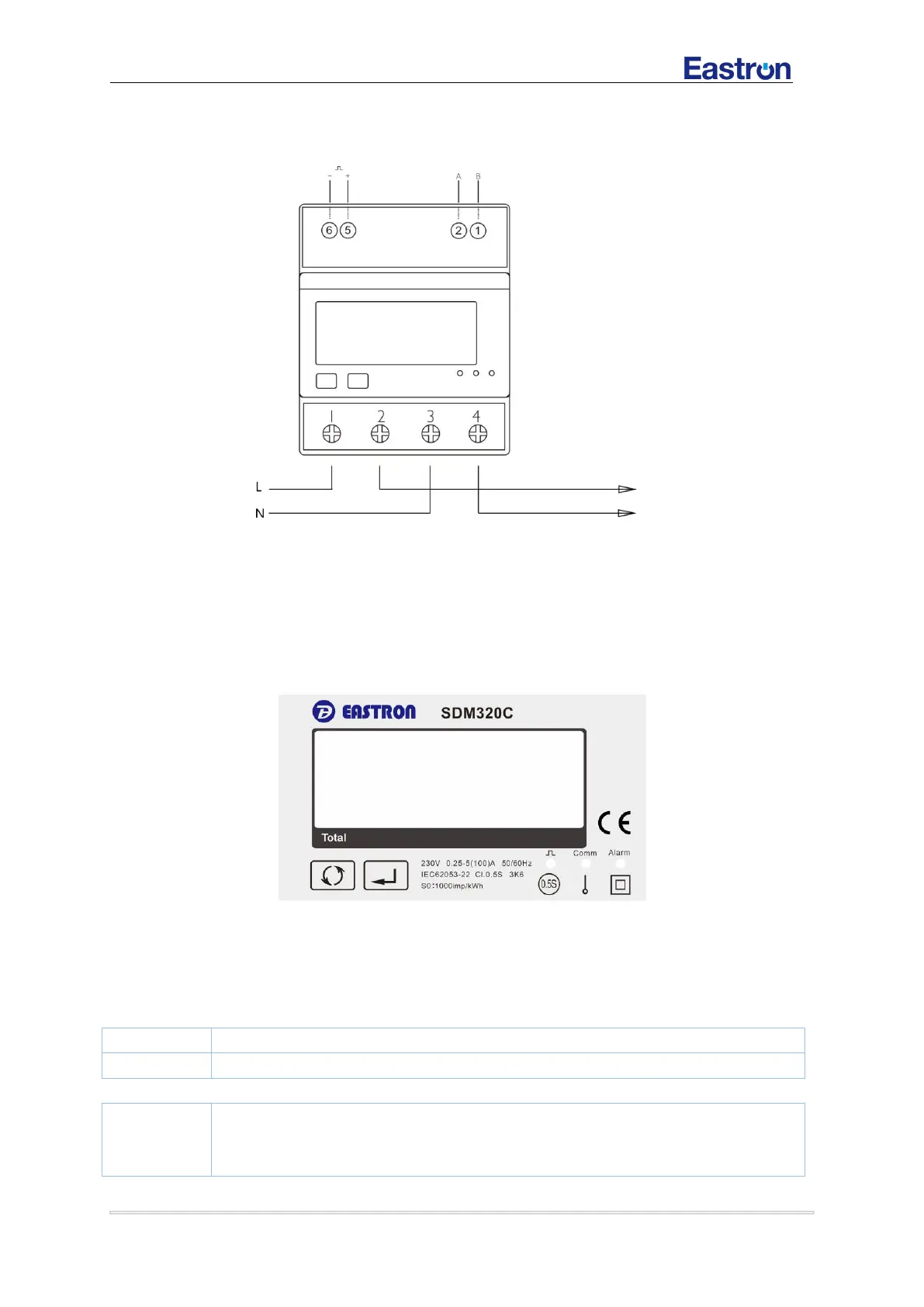

2.6 Wiring diagram
Chapter 3. Operating instructions
3.1 Panel Instructions and Key Operation Instructions
3.1.1 Panel Instructions
After the correct connection, it will enter the normal measurement state, and the screen is displayed
as follows:
1st Screen
Start up Screens: All Display Segments
2nd Screen
Start up Screens: Software Version
Failure
Interface
Display fault code: the display interface of fault code and normal display interface
automatic scrolling display, with the switching time of 3s. Error-01 indicates that the
relay cannot close.
