SDM320C User Manual V1.2

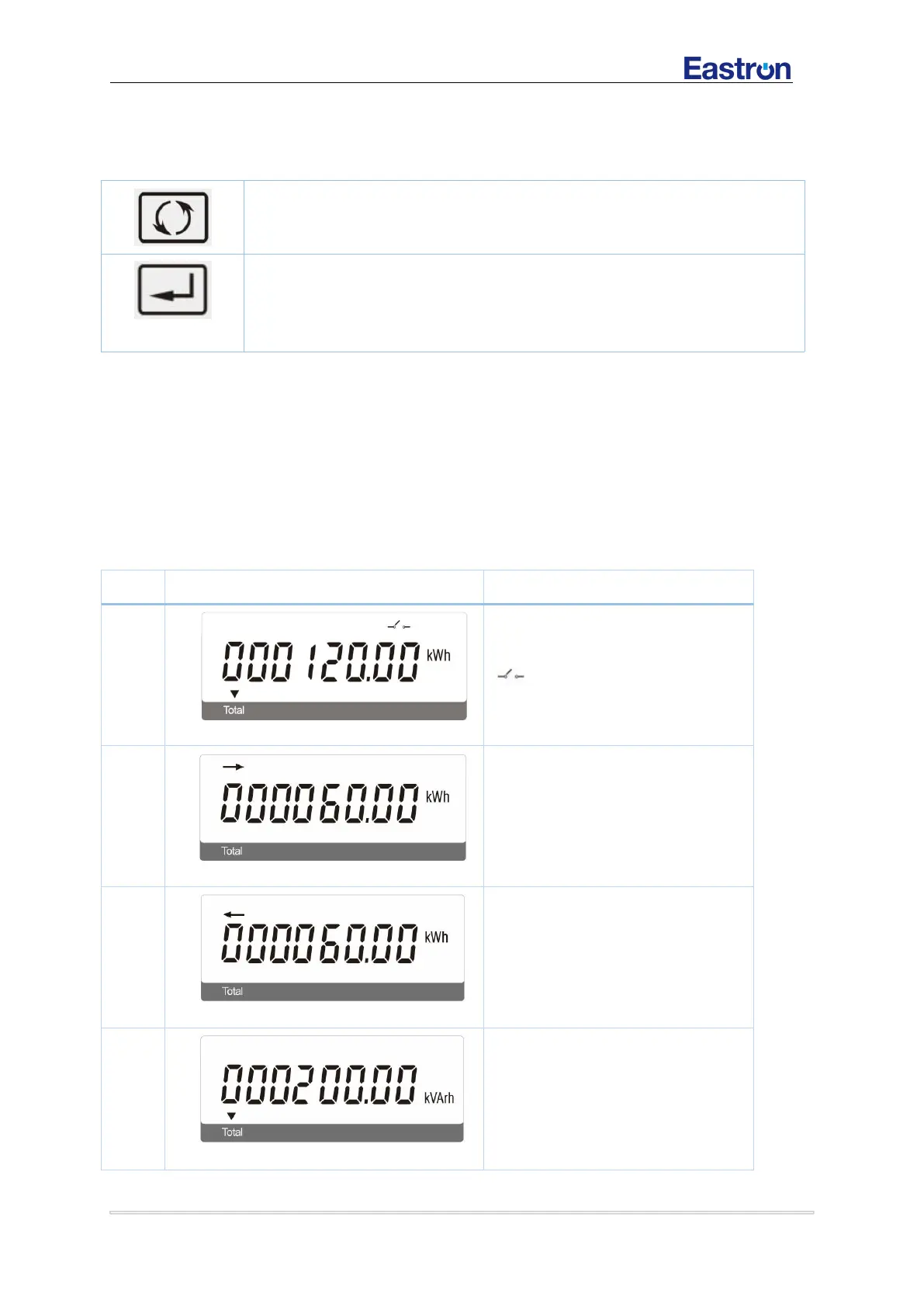

3.1.2 key Definitions：
 Measurement mode, short press: switch the display
 Setting mode: short press: switch menu or single-digit increases at the same
level; Long press: return to the previous menu.
 Measurement mode, short press: invalid; Long press: enter the setting mode;
 Setting mode, short press: move the cursor (the cursor is flashing digital bit);
Long press: menu item selection confirmation and parameter modification
confirmation.
3.2 Measurement Parameters
View by pressing the button:
Total active energy  Import active energy  Export active energy  Total reactive energy  Import
reactive energy Export reactive energy  Voltage  Current  Active power  Power factor 
Frequency  Maximum total active power demand  Communication Address  Communication
Baud Rate  Communication Parity  Pulse Constant  Software Version
Page
Display
Description
1
Total active energy
Example energy
：
120.00kWh
Represents relay open
2
Import active energy
Example：60.00kWh
3
Export active energy
Example：60.00kWh
4
Total reactive energy
Example
：
200.00 kVArh
