Easy Storage HDVR004 - Rear Panel

7 -
4. ALARM (Red)
Status/Description
On
Alarm input when BEEP is set as “ON”. Audible alarm (beep) when enabled.
Off
No alarm.
3. SD (Red)
Description
On
Reading/Writing data from/to the SD Card. .
Off
Not Reading/Writing – inactive.

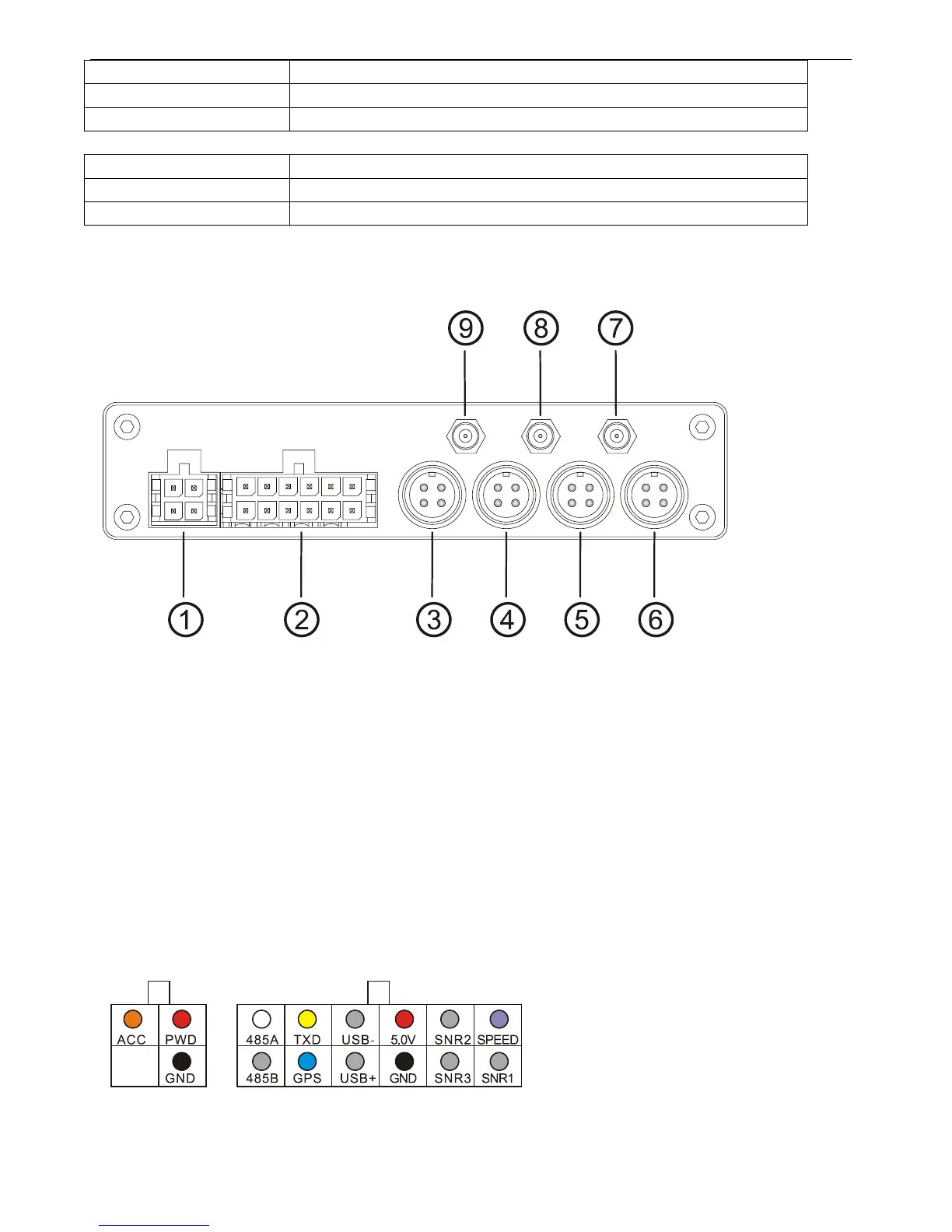

2.2 Rear panel
①: Power, Ground and ACC input.
②: 1x speed sensor, 3x sensors inputs, 1x RS232 port(for GPS) and 1x 5V DC output
③: AV input 1(including audio input 1, video input 1 and power output for camera 1)
④: AV input 2(including audio input 1, video input 1 and power output for camera 2)
⑤: AV input 3(including audio input 1, video input 1 and power output for camera 3)
⑥: AV input 4(including audio input 1, video input 1 and power output for camera 4)
⑦: Wifi antenna connector (Main)
⑧: Wifi antenna connector (Auxiliary)
⑨: 3G antenna connector
The sockets on rear panel are of Molex Micro-Fit 3.0 (Model No.: Molex 0430450200). The
definition of all sockets are given as below:
