EasyIO FS32 – User Reference v1.4
14
Buttons and Indications
The controller will do a hardware reset when the Reset Button is pressed whenever manual restart is
required.
The Service button is used to activate the built-in boot loader program for software upgrade.
Each digital output has a correspondence LED to indicate its current state.

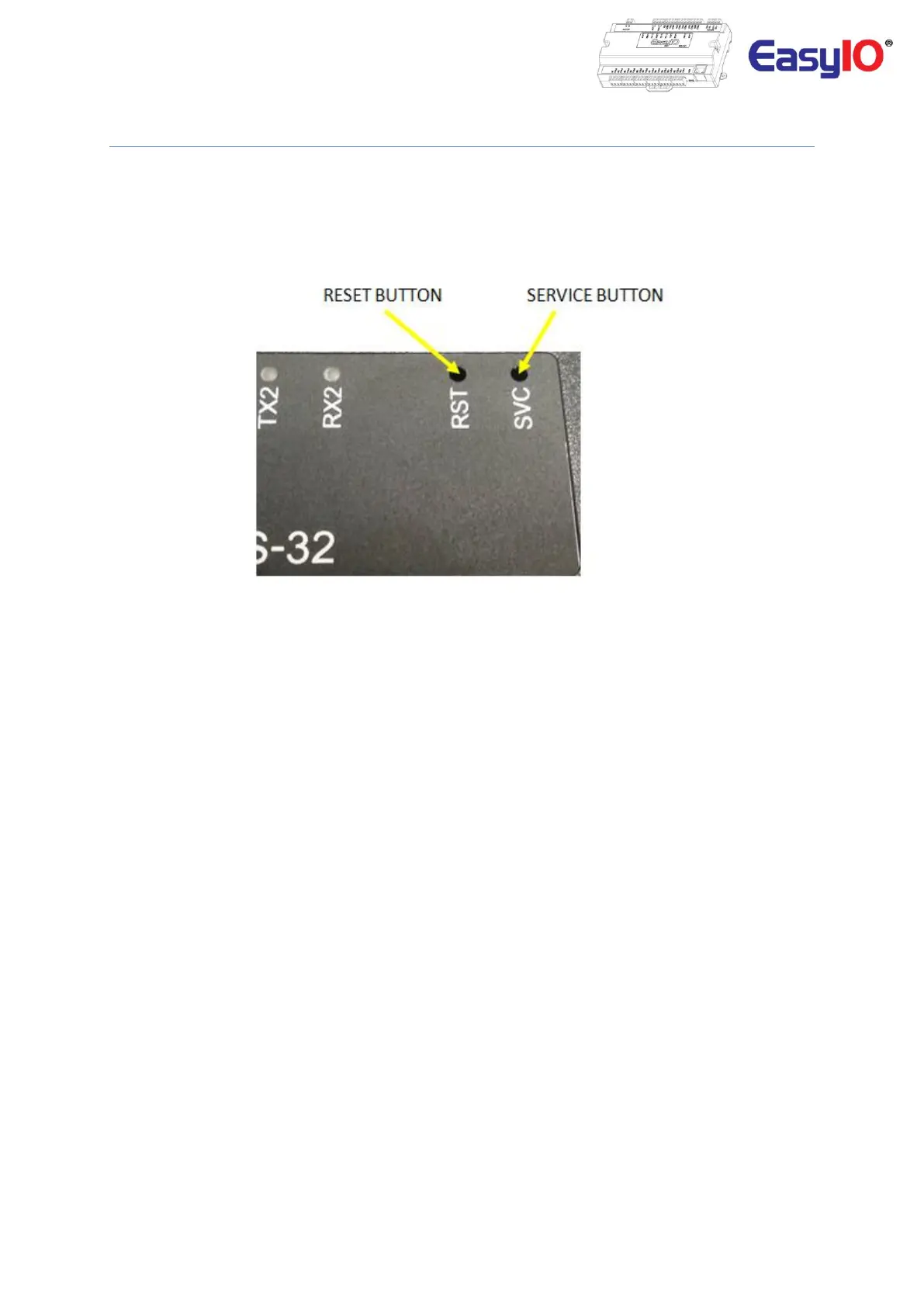

Image shows the Reset button, Service button and also TXRX indicators.
Image shown is an EasyIO FS-32 unit.
