Eaton 9PX 1500 RT User Manual

Page 21
9PX 1-3 KVA US_EN
ENGLISH
3. Installation
3.3 Connecting the internal battery
Do not connect the UPS to utility until installation is completed.
3
5
2
1
4

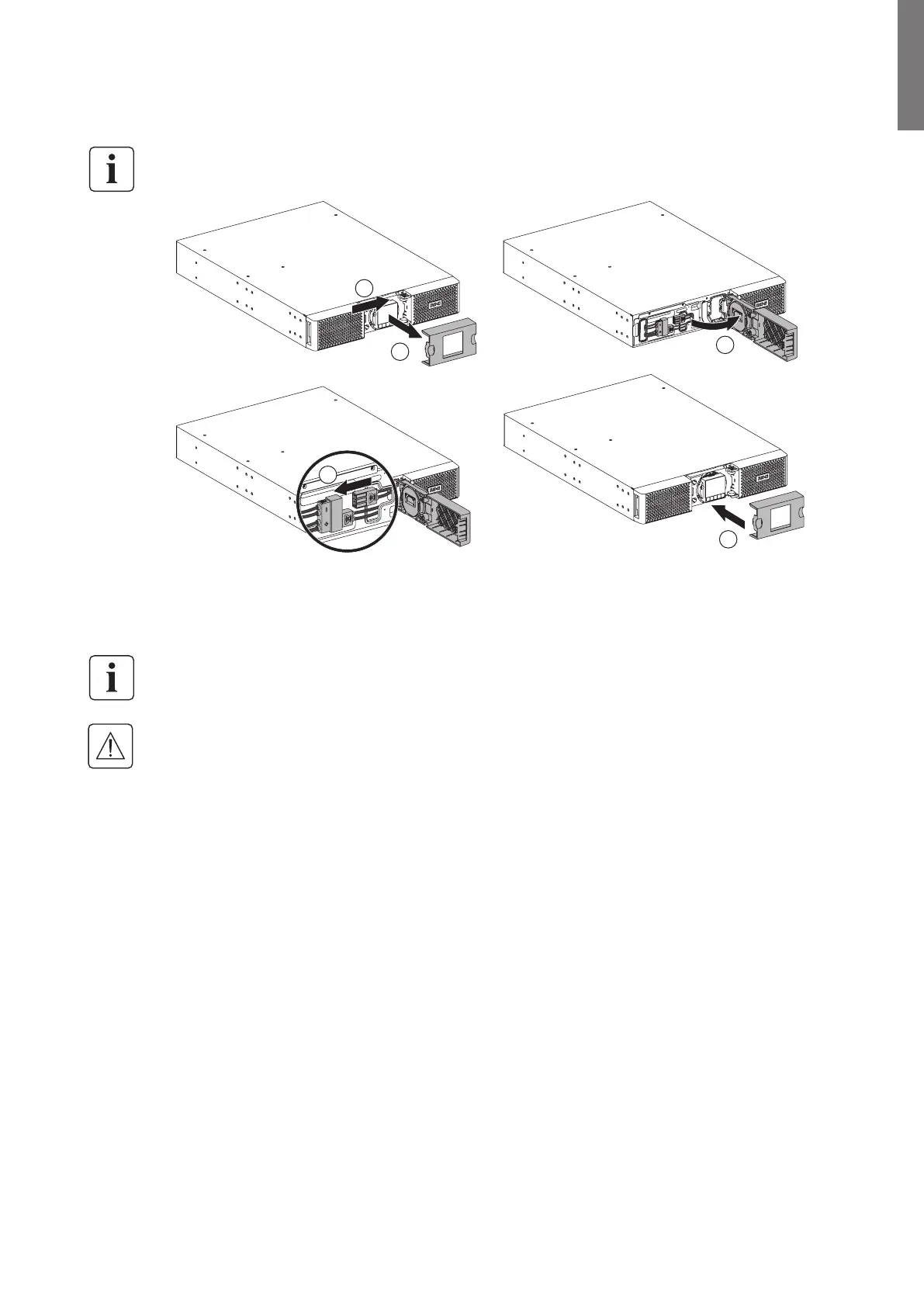

To connect the UPS:
1. Remove the center cover of the front panel.
2. Push left cover toward to right direction.
3. Open the left side of the front panel.
A ribbon cable connects the LCD control panel to the UPS. Do not pull on the cable or
disconnect it.
A small amount of arcing may occur when connecting the internal batteries. This is normal
and will not harm personnel. Connect the cables quickly and firmly.
4. Connect the two battery connectors together.
5. Put back the front panel, then clip the center cover.

Eaton 9PX 1500 RT Specifications

General

Power Rating	1500 VA
Output Power	1350 W
Form Factor	Rack/Tower
Frequency	50/60 Hz
Typical Recharge Time	3 hours to 90%
Operating Temperature	0 to 40 °C
Input Voltage	200-240 V
Battery Type	Sealed Lead Acid
Topology	Double Conversion Online
Output Receptacles	8 x IEC 320 C13
Communication	USB
Storage Temperature	-15°C to 45°C
Humidity	0 to 95% (non-condensing)
Output Voltage	200-240 VAC
