6
User Manual MN04200002E
Effective January 2016
C441 Ethernet module user manual
(C441R, C441T, C441U, C441V)
EATON www.eaton.com
3.2 C441U and C441V
The C441U and C441V have both screw mounting feet and a din rail
spring mounting feature.
To mount the adapter to a din rail place the bottom of the device on
the rail first then apply gentle upward force while pushing the device
flat against the din rail.

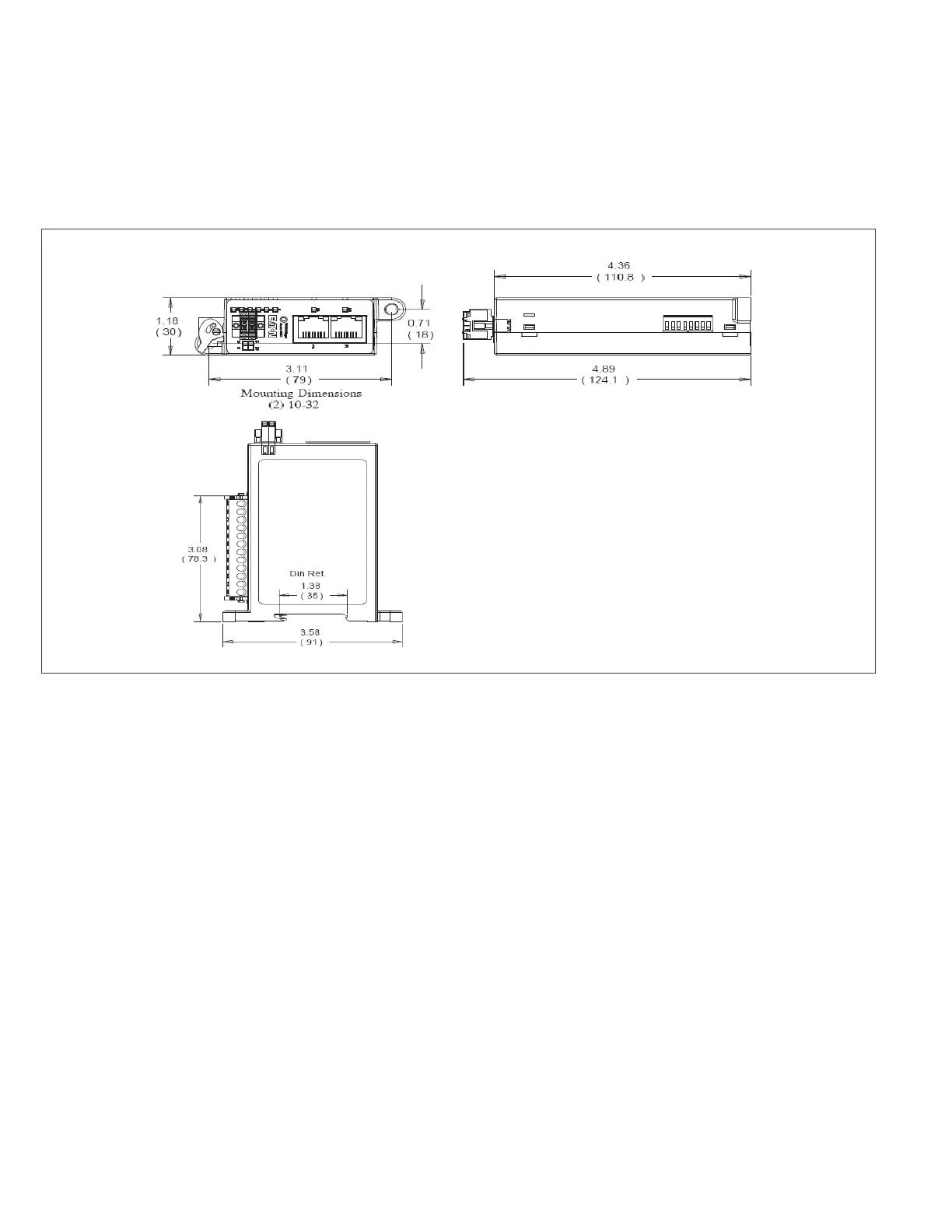

Figure 3.
C441U and C441V Dimensions and Mounting
