15 Amended: Jan 2014

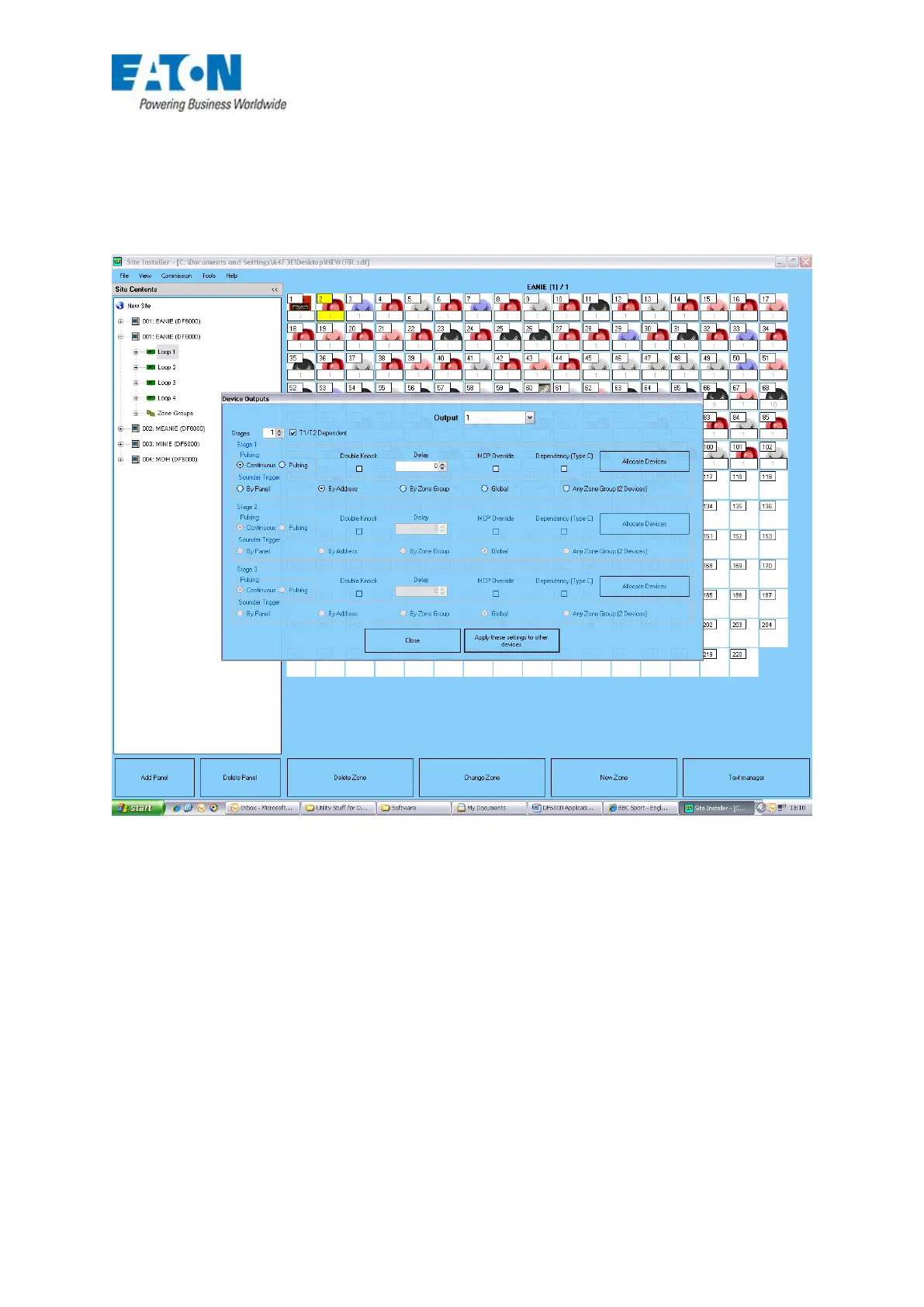

The second feature allows the user to select which external outputs should respond to the T1/T2 time
delays. This feature is programmed through the device outputs dialog within the Site Installer
program.
All external output devices are defaulted to follow the T1/T2 timer and are unchecked not to follow.
FIG 8
