PROGRAMMING cont.

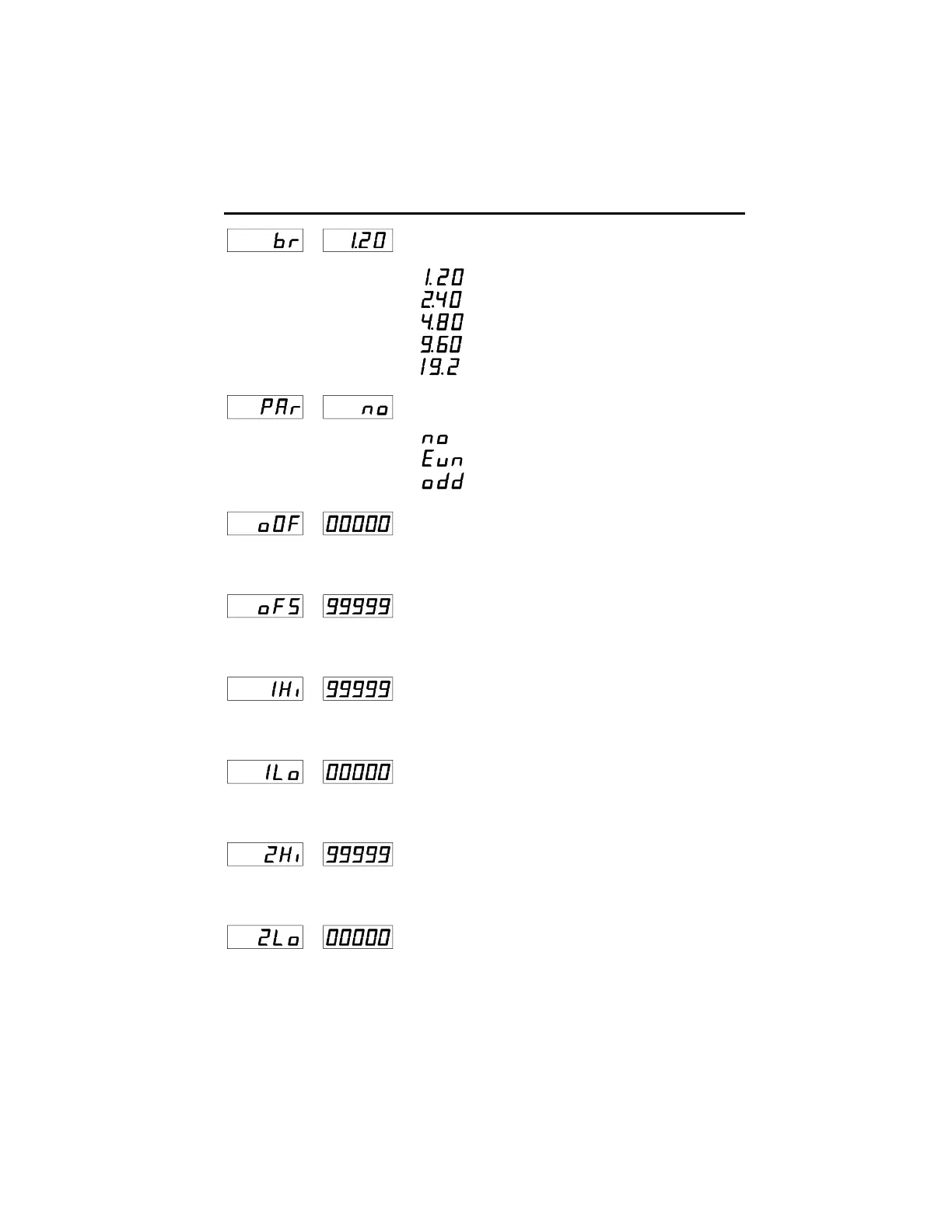

Parity. Select the type of parity used for
serial communications.
none
even
odd
Baud Rate. Select the rate in kBaud at which
to receive and transmit serial information.
Analog Output Offset Value. Enter the rate or
time that corresponds to the minimum analog
output (0V and 4 mA).
Range: 0 to 99999
Analog Output Full Scale Value. Enter the rate
or time that corresponds to the maximum analog
output (10V and 20 mA).
Range: 0 to 99999
Relay 1 High Alarm Setpoint. Enter the rate or time
at which relay 1 will turn on if the rate or time goes
above this value.
Range: 0 to 99999.
Relay 2 High Alarm Setpoint. Enter the rate or time
at which relay 2 will turn ON if the rate or time goes
above this value.
Range: 0 to 99999.
Relay 1 Low Alarm Setpoint. Enter the rate or time
at which relay 1 will turn ON if the rate or time goes
below this value.
Range: 0 to 99999.
Relay 2 Low Alarm Setpoint. Enter the rate or time
at which relay 2 will turn ON if the rate or time goes
below this value.
Range: 0 to 99999.
