Eaton Durant Eclipse Series Assembly, Installation And Operation

11

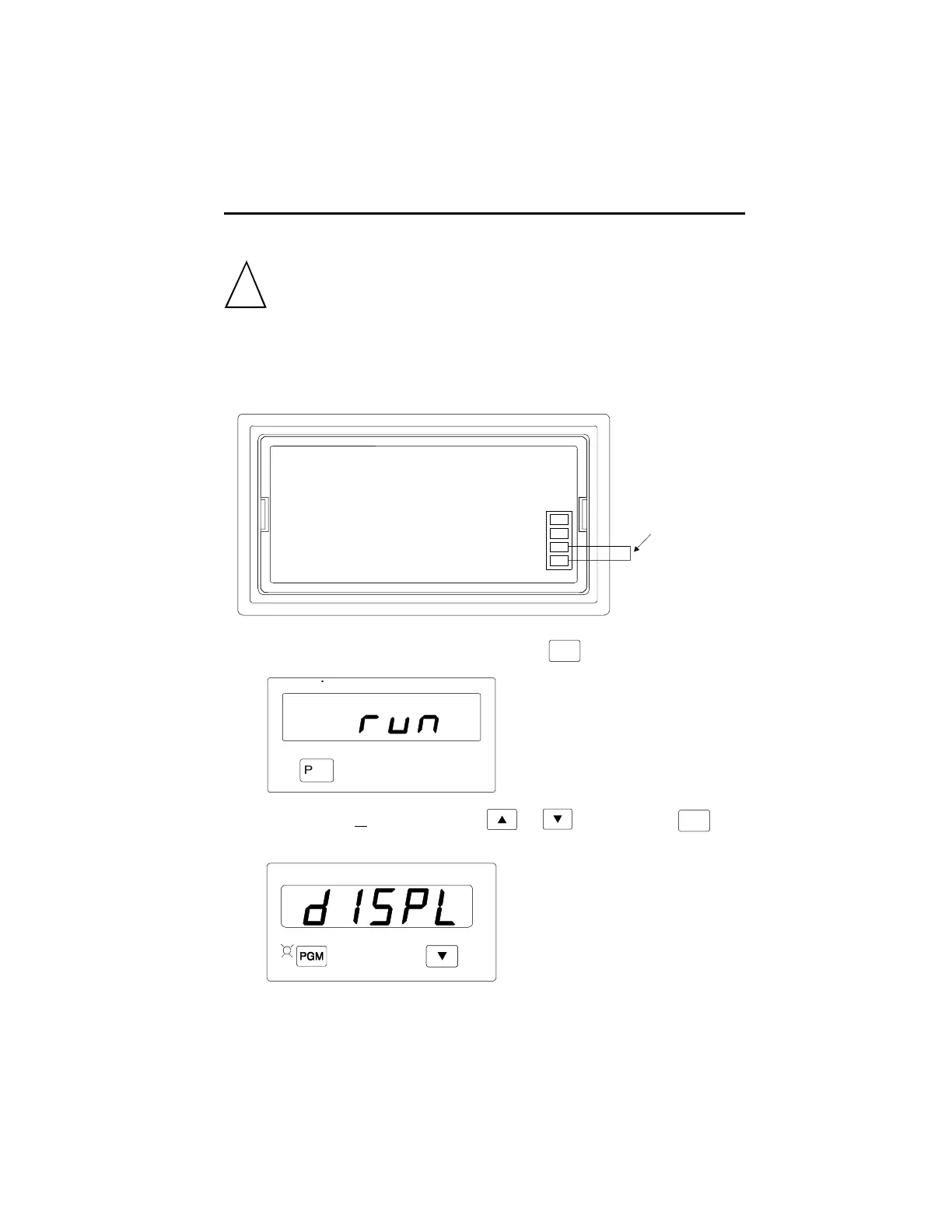

Entering the Program Mode
Note: If the optional relay output and/or analog output board(s) are installed
in the ratemeter, entering the program mode will cause both relays to turn
OFF and the analog output to go to its minimum values (0V and 4 mA)
regardless of the input signal.
To enter the program mode:
1. Connect Program Enable input terminal to Ground.
Durant
®
Jumper
Terminals
1 and 2
1
2
3
4
2. Press and hold the front panel program key (
PGM
); the display will say run:
Durant

PGM
3. Press the up or down arrow key ( or ) while holding (
PGM
); the
program LED will turn on and the display will show a parameter name.
Durant
®
PROGRAMMING
!
