Eaton Durant Eclipse Series Assembly, Installation And Operation

10

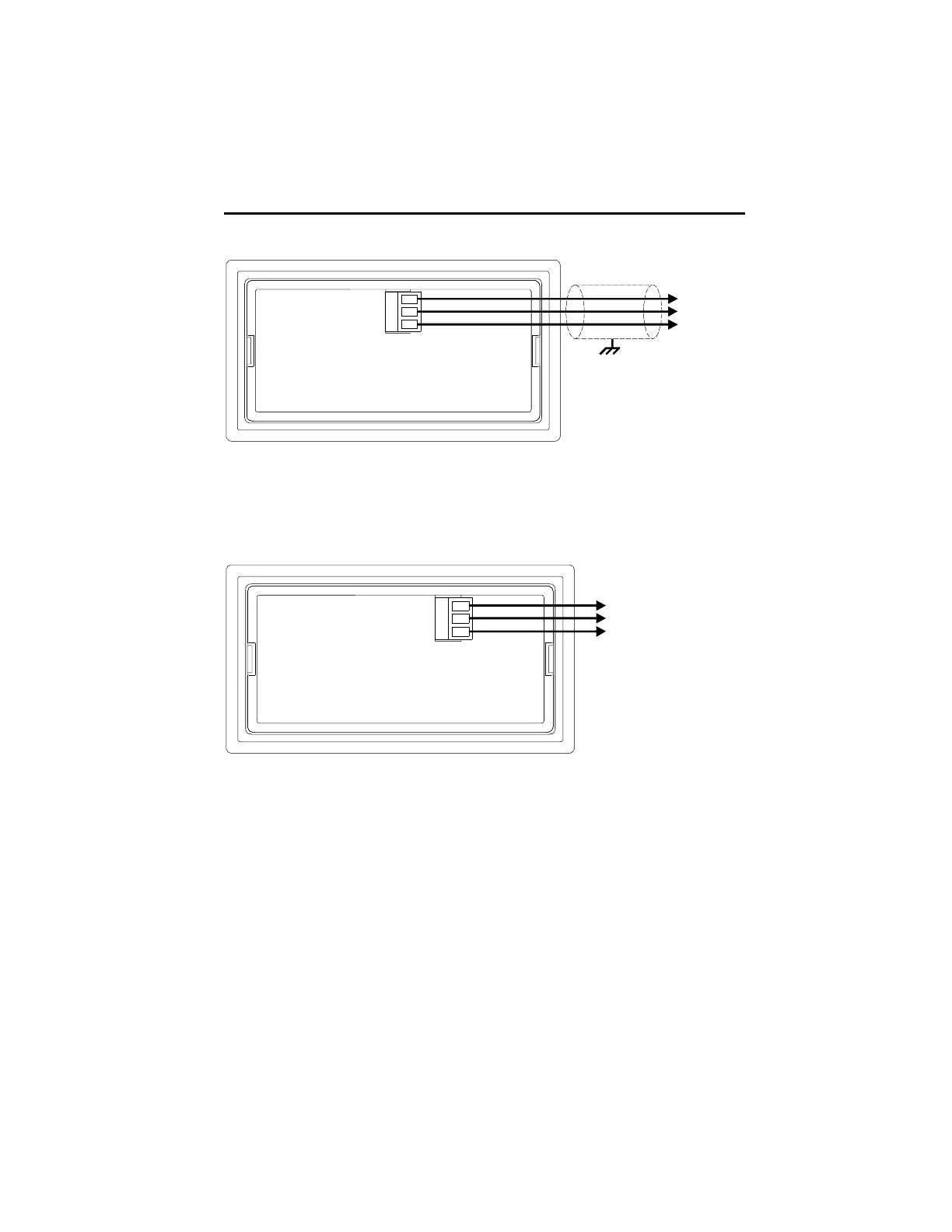

RS 485 Communication Option Board
Durant
®
1
485 +
485 -
Common
To Host Serial Port
Analog Output Option Board
Durant
®
4-20mA +
1
0-10 V +
Common
4-20mA -
0-10 V -
()
Output Ratings
4-20 mA into 750 W (Ohms) maximum
0-10 V into 2500 W (Ohms) minimum
WIRING cont.

Eaton Durant Eclipse Series Specifications

General

Brand	Eaton
Model	Durant Eclipse Series
Category	Measuring Instruments
Language	English
