Eaton Durant Eclipse Series Assembly, Installation And Operation

5

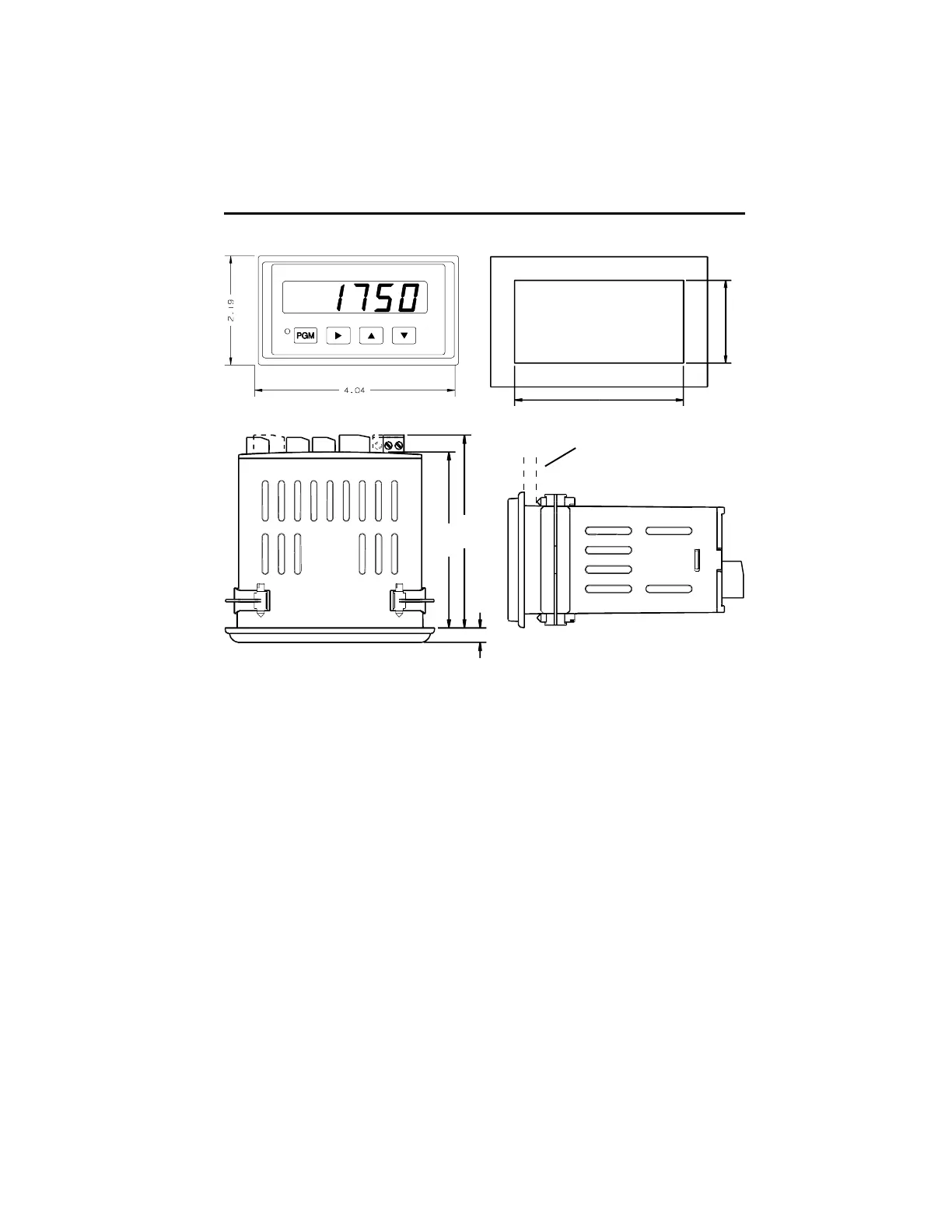

Mounting
Durant
®
3.31
3.63
.27
Mounting clips and screws shown in installed positions.
Mounting Instructions
1. Slide mounting gasket (not shown) over unit body until adhesive surface makes
contact with the front bezel.
2. Slide unit into cutout in panel.
3. Attach mounting clips and screws.
4. Tighten screws until unit is firmly in place. DO NOT OVERTIGHTEN screws
to the point of squeezing the gasket out from behind the bezel.
MOUNTING
Panel Cutout
Max. Panel Thickness .190 [133.7]
[92.00]
[3.622 +/- .031]
[45.00]
1.772 +/- .024
