DIAGNOSTICS cont.

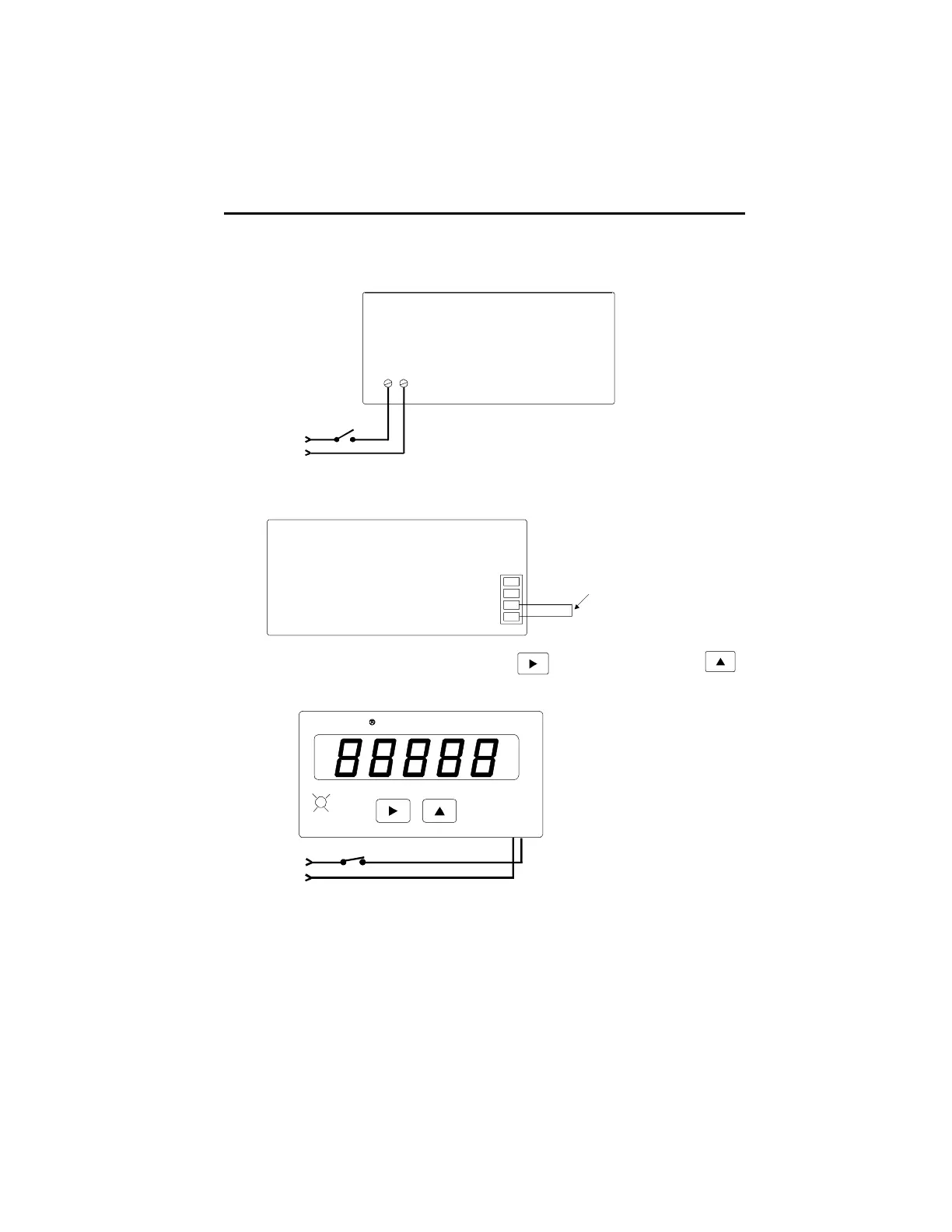

To enter the keyboard diagnostic mode:
1. Turn power to the unit OFF.
Durant
®
1
Power
In
2
2. Connect the rear terminal program enable input to ground.
Durant
®
Jumper
Terminals
1 and 2
1
2
3
4
3. While holding both the right arrow key ( ) and the up arrow key ( ),
turn unit power ON.
Durant
Power
In
The program LED and all display segments will be ON. If present, both relays will be
OFF (coils de-energized) and the analog output will be at minimum value (4 mA and
0V).
