1.4 Options
Rack mounting kits

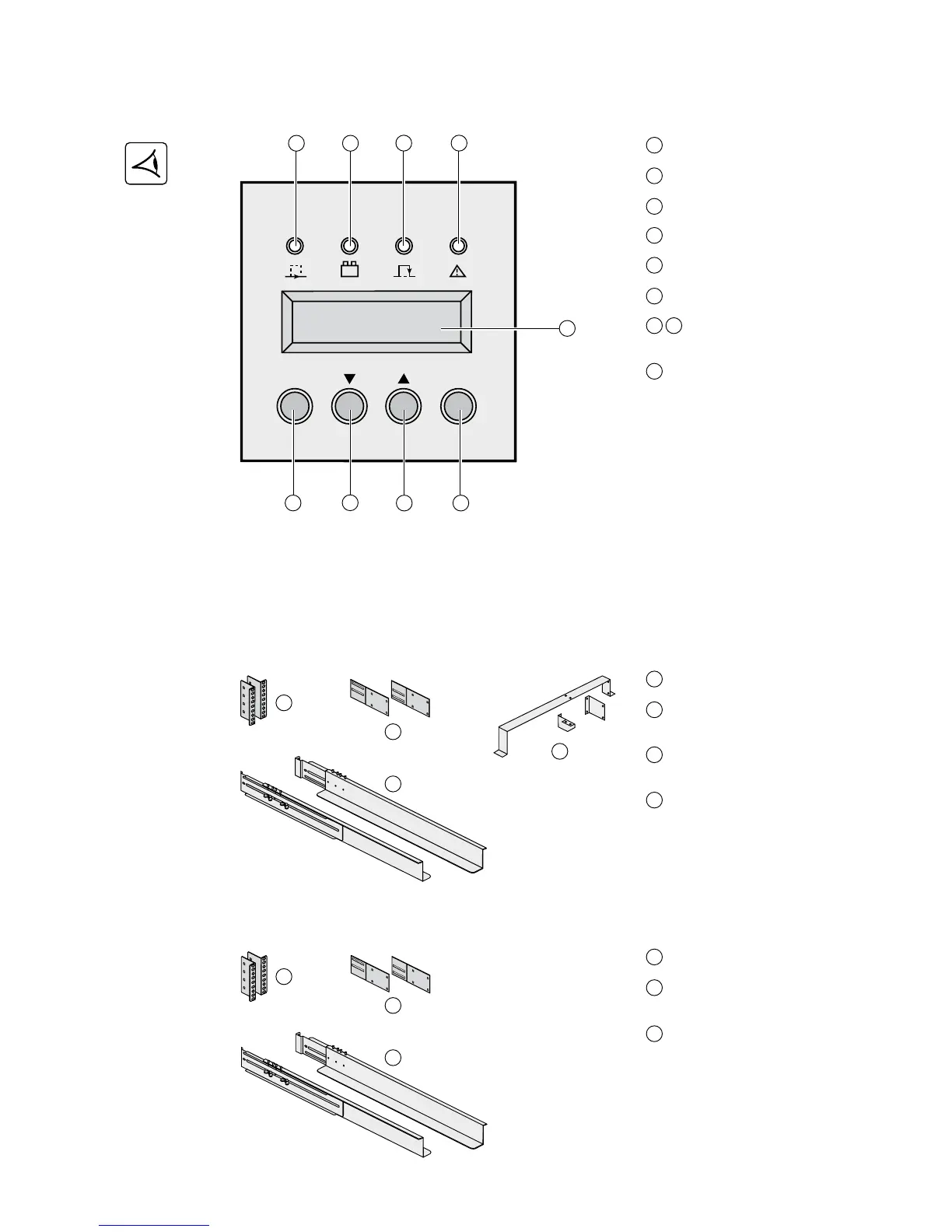

1.3 Display and control panel
1. Presentation
Load protected LED.
Operation on battery LED.
Operation on bypass LED.
Fault LED.
Alphanumeric display.
UPS OFF button.
Function buttons (scroll up /
scroll down).
UPS ON button (or function button
in personalisation mode).
Telescopic rails for Power module mounting in 19" enclosure with mounting hardware
(Part number 68001)
Telescopic rails for Battery module mounting in 19" enclosure with mounting hardware
(Part number 68002)
Ear hangup.
Rear bracket system for
transportation.
Telescopic rails, 639 mm to
1005 mm length (27.36" to 39.96").
Input/Output box bracket system.
Ear hangup.
Rear bracket system for
transportation.
Telescopic rails, 639 mm to
1005 mm length (27.36" to 39.96").
LOAD LEVEL
4 kW / 5 kVA
22
22
22
22
23
23
23
23
24
24
24
24
25
25
13
13
18
18
14
14
19
19
15
15
20
20
16
16
21
21
17
17
