Advanced Integration Connections
www.eaton.com/lightingsystems
Advanced Integration Connections
The Room Controller allows for advanced input functionality from onboard integration control inputs including: External Time
Clock, Alert Mode, Demand Response system and A/V system. The Room Controller will provide inputs for an external dry
contact closure. (Advanced Integration connections are not available on all models.)

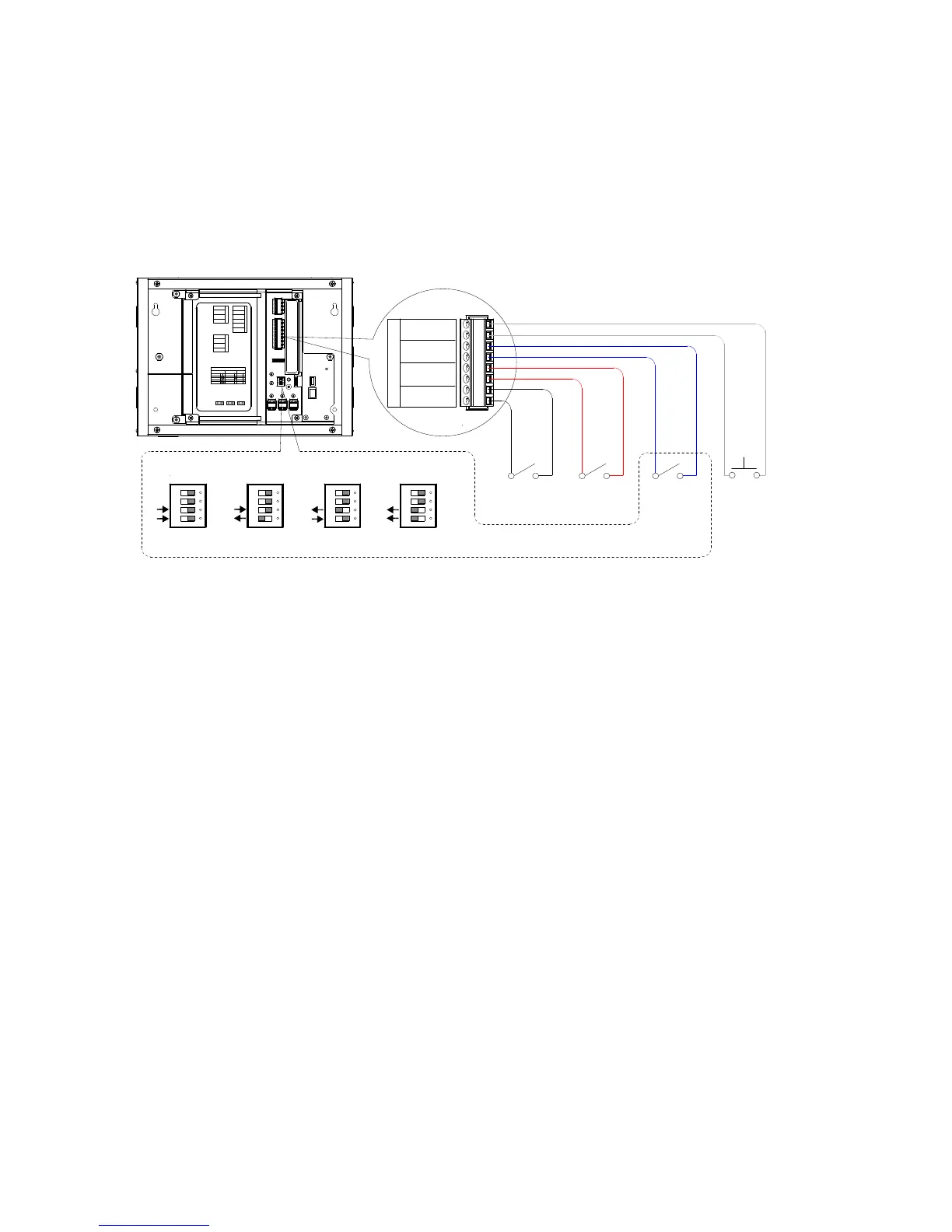

Connect the dry contact closure to the appropriate terminal for the application. The terminal block is removable for ease of
wiring. Use 18 AWG, 2 conductor twisted pair wiring for connection. Maximum distance must not exceed 1000 ft. (300m).
(Class 2)
Time
Clock
Alert
Mode
Demand
Response
A/V
Mode
+
-
Integration Controls
+
-
+
-
+
-
Time Clock
Alert Mode
Contact
A/V Mode
Demand
Response
1 2 3 4
10% Demand
Response (Default)
2
1
1 2 3 4
20% Demand
Response
2
1
1 2 3 4
30% Demand
Response
2
1
1 2 3 4
40% Demand
Response
2
1
If using Demand Response, ensure the level of reduction is selected using Energy Option DIP Switches 1 & 2.
1
2
3
4
5
6
Integration Controls Adjustable Skylights
Low End High End
Energy
Options
Status
Reset
0-10V Gain
Adjustment
Dimmer 3 Dimmer 2 Dimmer 1
+
- -
+ +
-
0-10V Dimming
0-10V Dimming Outputs
-
+
Dimmer 3 Dimmer 2 Dimmer 1
-
++
-
Blue - EM Line In Blue - EM Loads Out
CAUTION: Bonding between conduit connections is not automatic and must be provided as part of the installation.
Black - Line In
White/Black - 120V N White/Orange - 277V N
Blue - Load In
Yellow - Load 1 Out
Red - Load 2 Out Purple - Load 3 Out
Energy Options DIP Switch
Demand Response
Occupancy
Not Used
1 2 3 4
Default 10%
20%
30%
40%
Occ
Vac (default)
Time
Clock
Alert
Mode
Demand
Response
A/V
Mode
+
-
Integration Controls
+
-
+
-
+
-
Green
Black
Red
White
Adjustable Skylights
Sensors
Receptacle
BMS/Out
Switchpack
QuickConnect Cables
Sensors
Slider
Station
Wallstations
