Mounting
www.eaton.com/lightingsystems
Mounting
Mount wallstations to a single gang wall box with a
minimum internal depth of 2 inches (51mm). Up to twelve
wallstations may be connected to the Room Controller to
meet your application.
1
2
3
4
5
6
Integration Controls Adjustable Skylights
Low EndHigh End
Energy
Options
Status
Reset
0-10V Gain
Adjustment
Dimmer 3 Dimmer 2 Dimmer 1
+
--
++
-
0-10V Dimming
Blue - EM Line In Blue - EM Loads Out
CAUTION: Bonding between conduit connections is not automatic and must be provided as part of the installation.
Black - Line In
White/Black - 120V N White/Orange - 277V N
Blue - Load In
Yellow - Load 1 Out
Red - Load 2 Out Purple - Load 3 Out
0-10V Dimming Outputs
-
+
Dimmer 3 Dimmer 2 Dimmer 1
-
++
-
Energy Options DIP Switch
Demand Response Occupancy Not Used
12 34
Default 10%
20%
30%
40%
Occ
Vac (default)
Time
Clock
Alert
Mode
Demand
Response
A/V
Mode
+
-
Integration Controls
+
-
+
-
+
Green
Black
Red
White
Adjustable Skylights
Sensors
Receptacle
BMS/Out
Switchpack
QuickConnect Cables
Sensors
Slider
Station
Wallstations
-
QuickConnect Cable
(Class 2)
QuickConnect
Cable (Class 2)
QuickConnect
Cable (Class 2)
QuickConnect
Cable (Class 2)
1
Entry Wallstation
(Back)

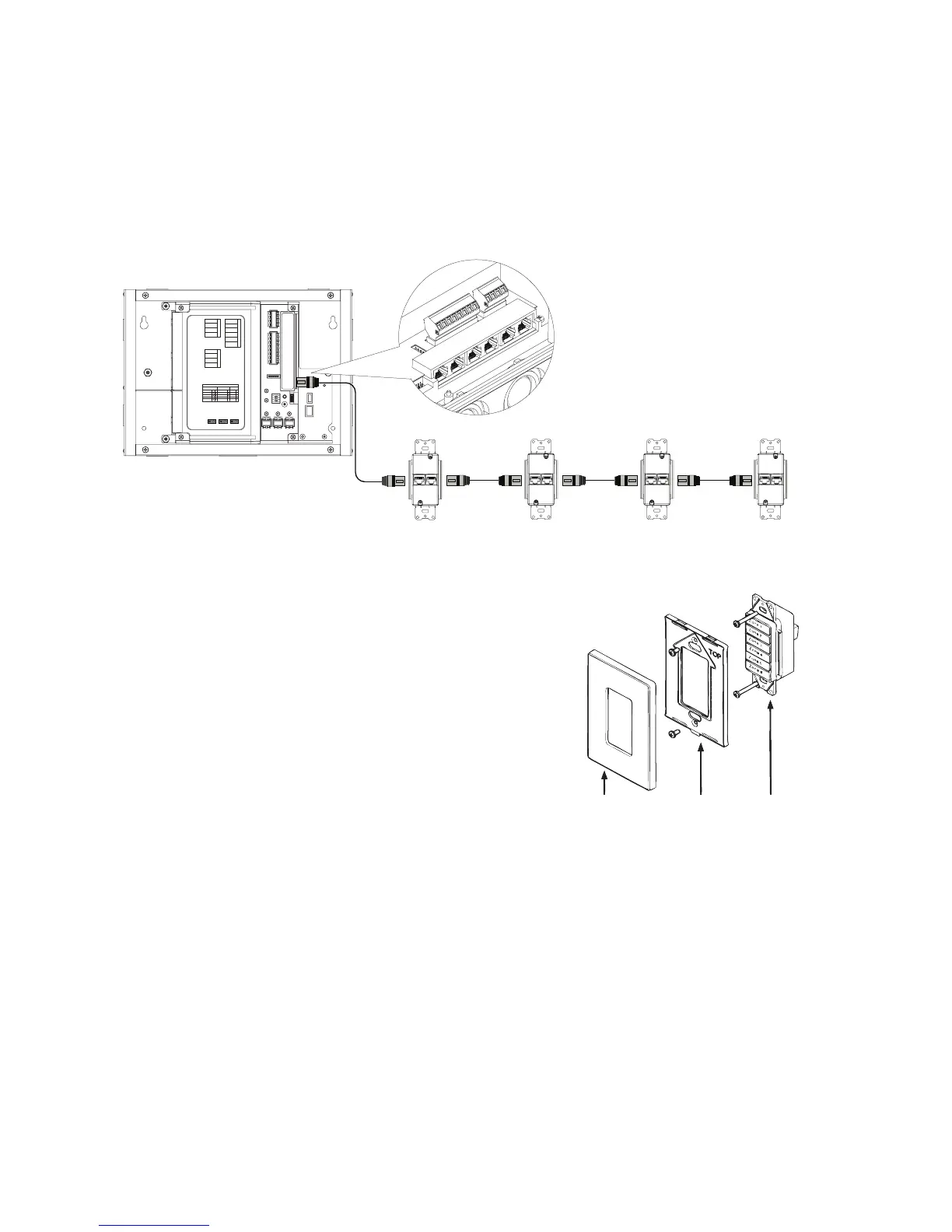

Connect a QuickConnect cable between the designated
wallstation Click & Go port on the Room Controller and
to one of the Click & Go ports on the Entry wallstation.
Connect up to 11 additional stations using additional
QuickConnect cables to connect wallstation to
wallstation.
Additional Wallstation
(Back)
Additional Wallstation
(Back)
Additional Wallstation
(Back)
Use the shortest lengths of QuickConnect cable from your
QuicKit that will reach your intended wallstation locations.
Once the wallstations are installed, connect the wallstations
to the wall box and attach the wallplates.
ote:N Wallstations can be connected to more than one
Room Controller, however they will perform the same
functions. See the app note: “Joining multiple Room
Controllers via the keypad interface” on our website.
Main BodyInner PlateFront Cover
Functions
Zone wallstations are pre-engraved and control Room
Controller outputs out-of-the-box. Zone wallstations provide
output toggle functions and dimmer raise/lower functions
Scene wallstations are pre-engraved and control Room
Controller outputs out-of-the-box. Scene wallstations go to
a preset light configuration that can be adjusted using the
HHPR-RC personal remote.
