Connecting the Daylight Sensor to the Room Controller
www.eaton.com/lightingsystems
Connecting the Daylight Sensor to the Room Controller
One DSRC-FMOIR daylight sensor may be connected to the Room Controller. The daylight sensor connects using only
the provided GGRC-COUPLER and QuickConnect Cable to ports 3 or 4 of the Room Controller.
Once the daylight sensor mounting area is prepared, attach the GGRC-COUPLER to the sensor. Connect the Daylight
Sensor to one of the two sensor ports on the Room Controller, using the shortest length of QuickConnect cable from
your QuicKit that will reach the desired location.
1
2
3
4
5
6
Integration Controls Adjustable Skylights
Low EndHigh End
Energy
Options
Status
Reset
0-10V Gain
Adjustment
Dimmer 3 Dimmer 2 Dimmer 1
+
--
++
-
0-10V Dimming
Blue - EM Line In Blue - EM Loads Out
CAUTION: Bonding between conduit connections is not automatic and must be provided as part of the installation.
Black - Line In
White/Black - 120V N White/Orange - 277V N
Blue - Load In
Yellow - Load 1 Out
Red - Load 2 Out Purple - Load 3 Out
0-10V Dimming Outputs
-
+
Dimmer 3 Dimmer 2 Dimmer 1
-
++
-
Energy Options DIP Switch
Demand Response Occupancy Not Used
12 34
Default 10%
20%
30%
40%
Occ
Vac (default)
Time
Clock
Alert
Mode
Demand
Response
A/V
Mode
+
-
Integration Controls
+
-
+
-
+
Green
Black
Red
White
Adjustable Skylights
Sensors
Receptacle
BMS/Out
Switchpack
QuickConnect Cables
Sensors
Slider
Station
Wallstations
-
GGRC-COUPLER
(Daylight Sensor Coupler)
QuickConnect Cable
(Class 2)
GGRC-COUPLER
Click & Go Port
(one on each side)

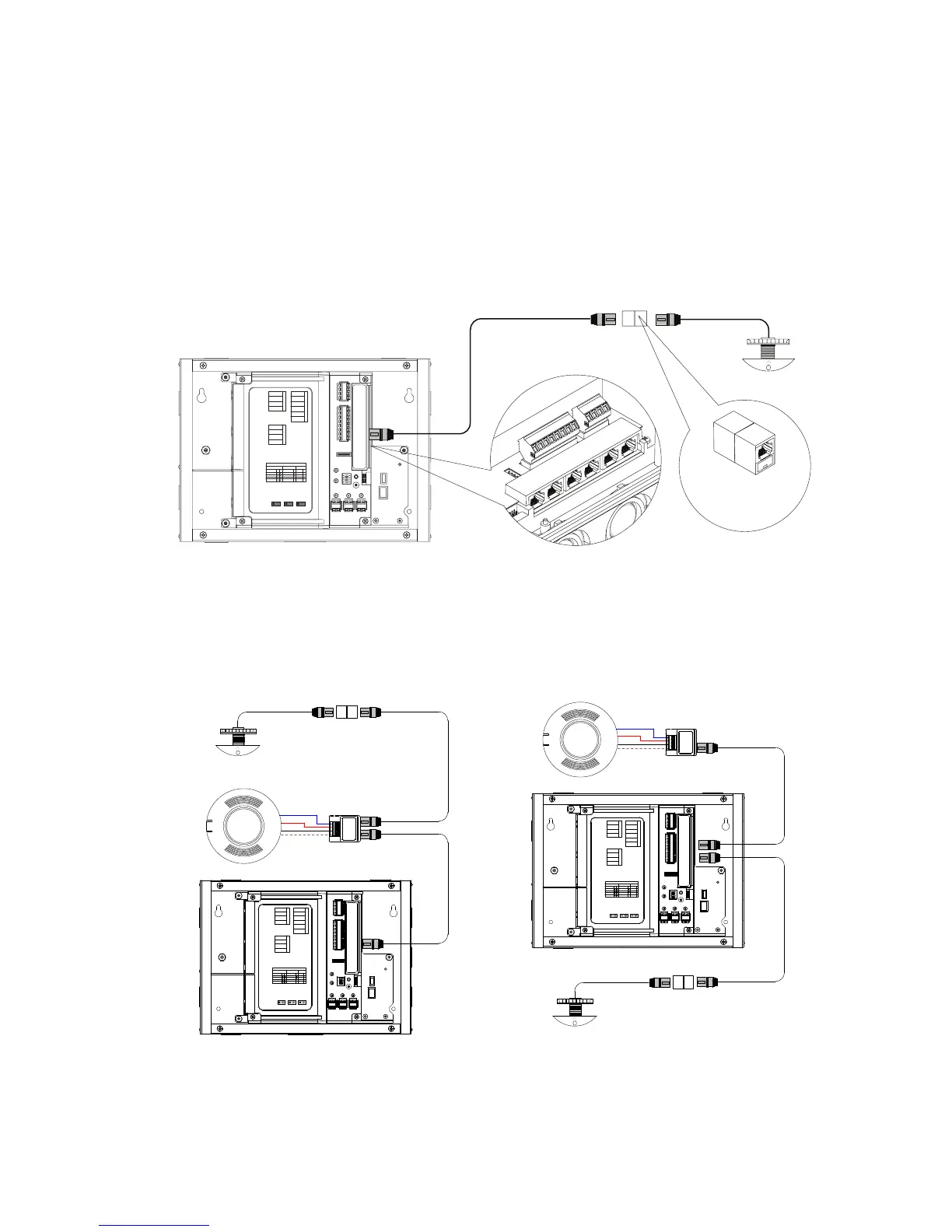

Connect the daylight sensor to the coupler.
