i-on30EX/EXD Before You Begin
Page 11

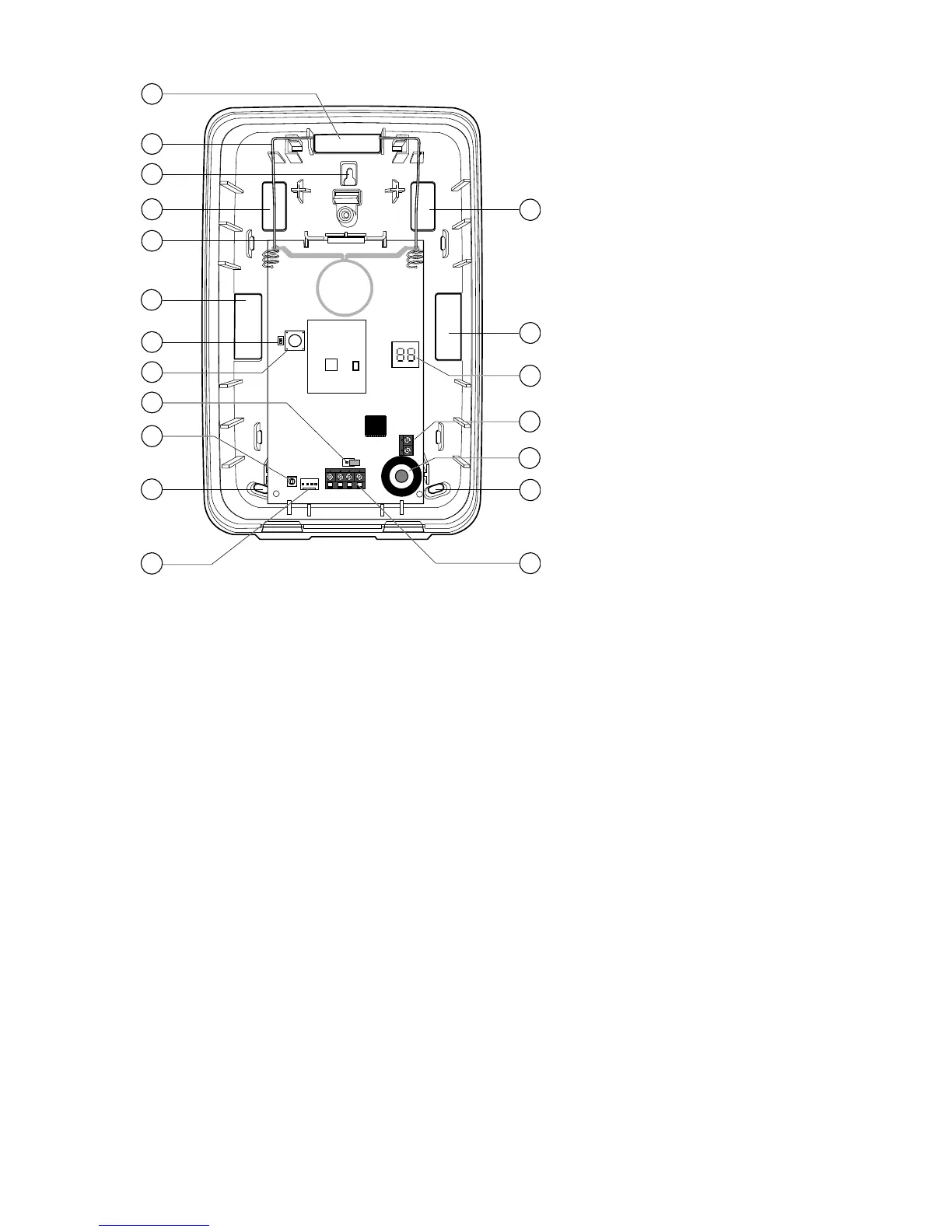

1. Cable entry (also behind PCB).
2. Antenna.
3. Central keyhole.
4. PCB.
5. Link to enable/disable front/rear
tamper switch.
6. Lid tamper (rear tamper behind
PCB).
7. Bus termination jumper.
8. Addressing button.
9. Fixing holes.
10. Engineering keypad connector
11. Bus cable connector.
12. Sounder.
13. Loudspeaker terminals.
14. Bus address display.
Figure
16
EXP-R10/R30 Radio Expander
1
4
3
2
1
5
6
1
8
7
9
10
11
9
12
13
1
14
1
