INM 4500/4600 Rev 12
64
DRAFT - 22 March 2018 DRAFT - 22 March 2018
8.3.3 Modules: MTL4541A, MTL4541YA & MTL4544A






 












Output Measurements
1. Adjust RV1 to vary the current (A1) through the range 4 to 20mA.
2. The measured current imbalance (A2) over this range should not exceed ± 20µA
8.3.4 Modules: MTL4541AS & MTL4544AS






 
















Output Measurements
1. Adjust RV1 to vary the current (A1) through the range 4 to 20mA.
8.3.5 The measured current imbalance (A2) over this range should not exceed ± 20µA

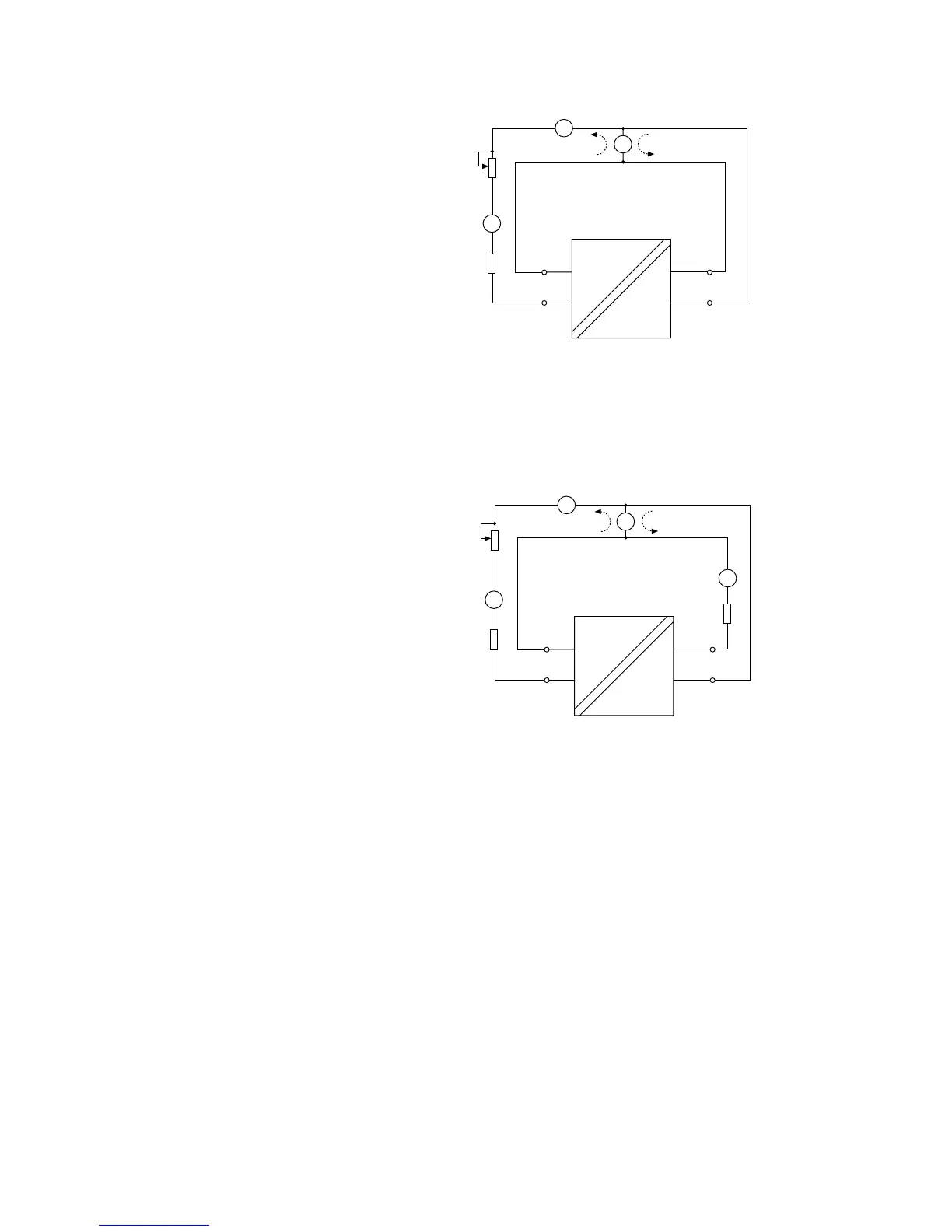

Figure 8.7:
AI test circuit #3
“active i/p”
Figure 8.8:
AI test circuit #4
“active i/p -
o/p sinking”
